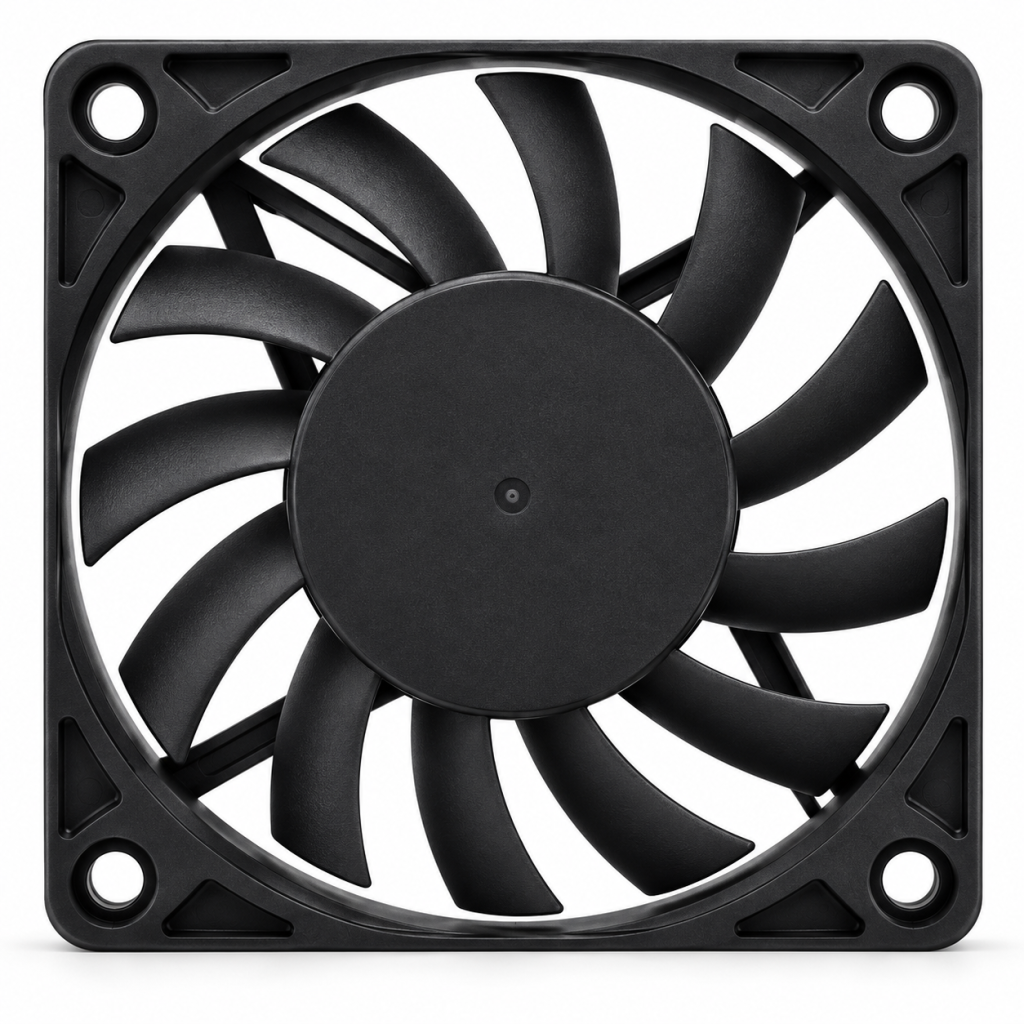

DC FANS

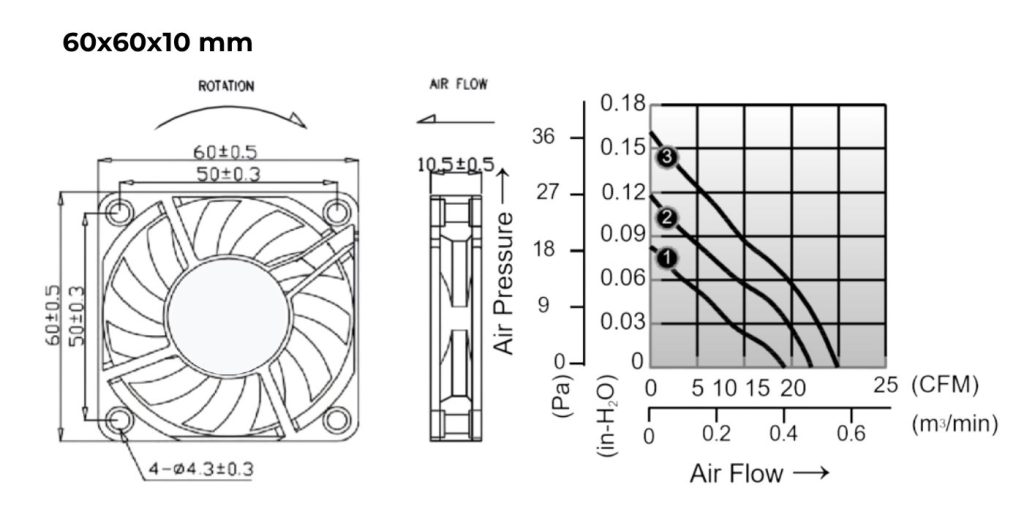

60x60x10 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: FMB / Ball Bearing
Motor Structure: Brushless DC Motor
Weight: 37 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling
TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD056010LB | 5 | 4.5 – 5.5 | 0.30 | 3500 | 14.3 | 0.08 | 28 |
| HYD056010MB | 5 | 4.5 – 5.5 | 0.38 | 4200 | 17.1 | 0.12 | 33 |
| HYD056010HB | 5 | 4.5 – 5.5 | 0.42 | 4900 | 19.9 | 0.16 | 37 |
| HYD126010LB | 12 | 7.0 – 13.2 | 0.14 | 3500 | 14.3 | 0.08 | 28 |
| HYD126010MB | 12 | 7.0 – 13.2 | 0.17 | 4200 | 17.1 | 0.12 | 33 |
| HYD126010HB | 12 | 7.0 – 13.2 | 0.20 | 4900 | 19.9 | 0.16 | 37 |
| HYD246010LB | 24 | 14.0 – 26.4 | 0.05 | 3500 | 14.3 | 0.08 | 28 |
| HYD246010MB | 24 | 14.0 – 26.4 | 0.08 | 4200 | 17.1 | 0.12 | 33 |
| HYD246010HB | 24 | 14.0 – 26.4 | 0.10 | 4900 | 19.9 | 0.16 | 37 |
