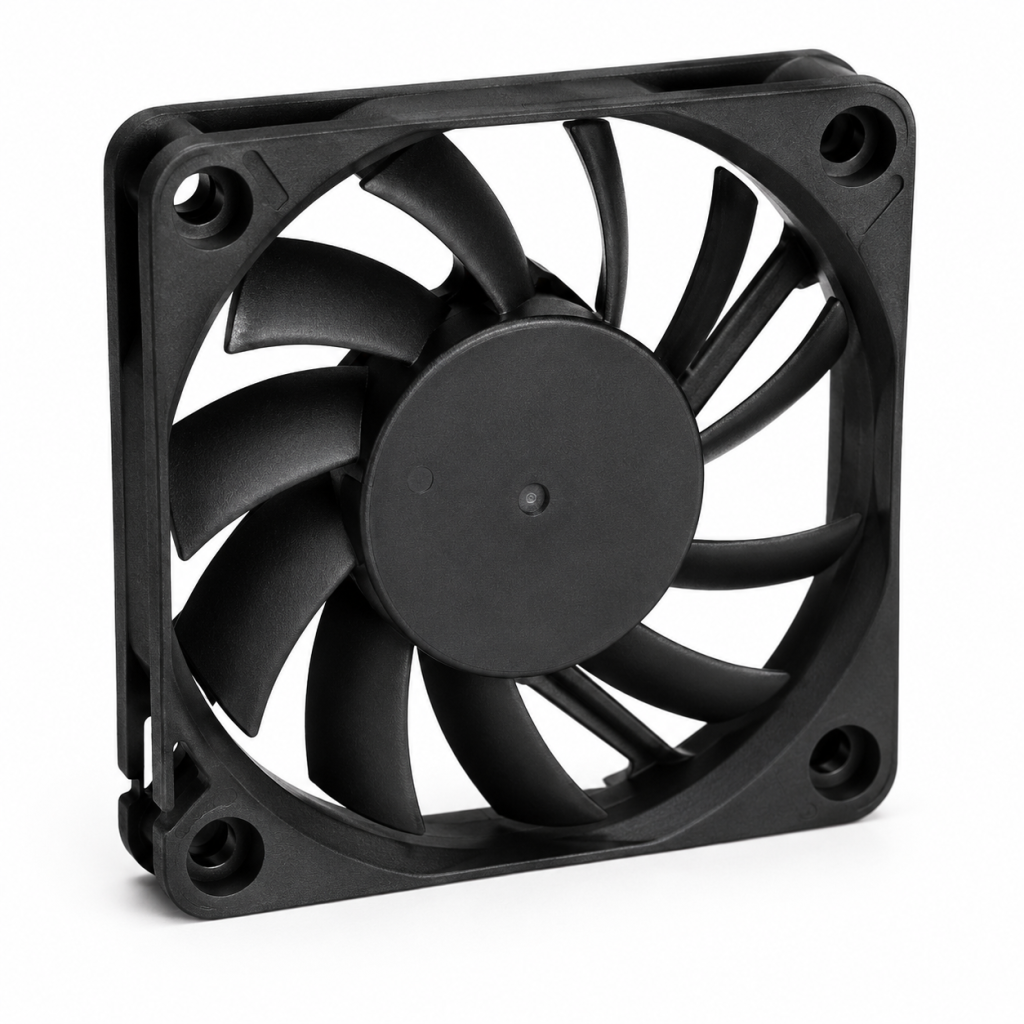

DC FANS

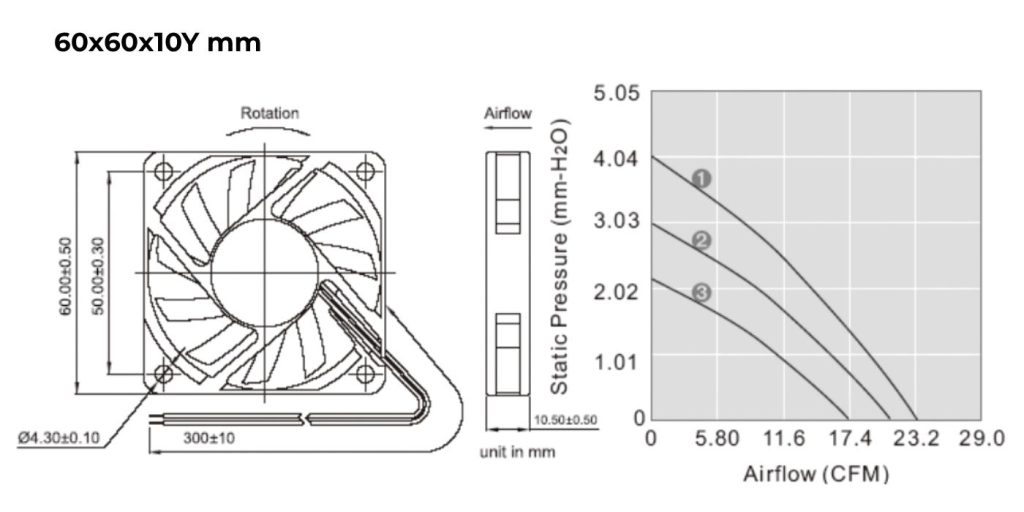

60x60x10Y mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Thermoplastic PBT UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: Sleeve or Ball Bearing
Motor Structure: Brushless DC Motor
Termination: Lead wire 300± 10mm
Weight: 26 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling
TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYD056010LBL | 5 | 4.0 – 5.5 | 0.26 | 1.30 | 3800 | 17.3 | 0.08 | 33 |
| HYD126010LBL | 12 | 7.0 – 13.2 | 0.14 | 1.68 | 3800 | 17.3 | 0.08 | 33 |
| HYD126010MBL | 12 | 7.0 – 13.2 | 0.17 | 2.04 | 4500 | 21 | 0.12 | 38 |
| HYD126010HBL | 12 | 7.0 – 13.2 | 0.24 | 2.88 | 5200 | 23.3 | 0.16 | 41 |
