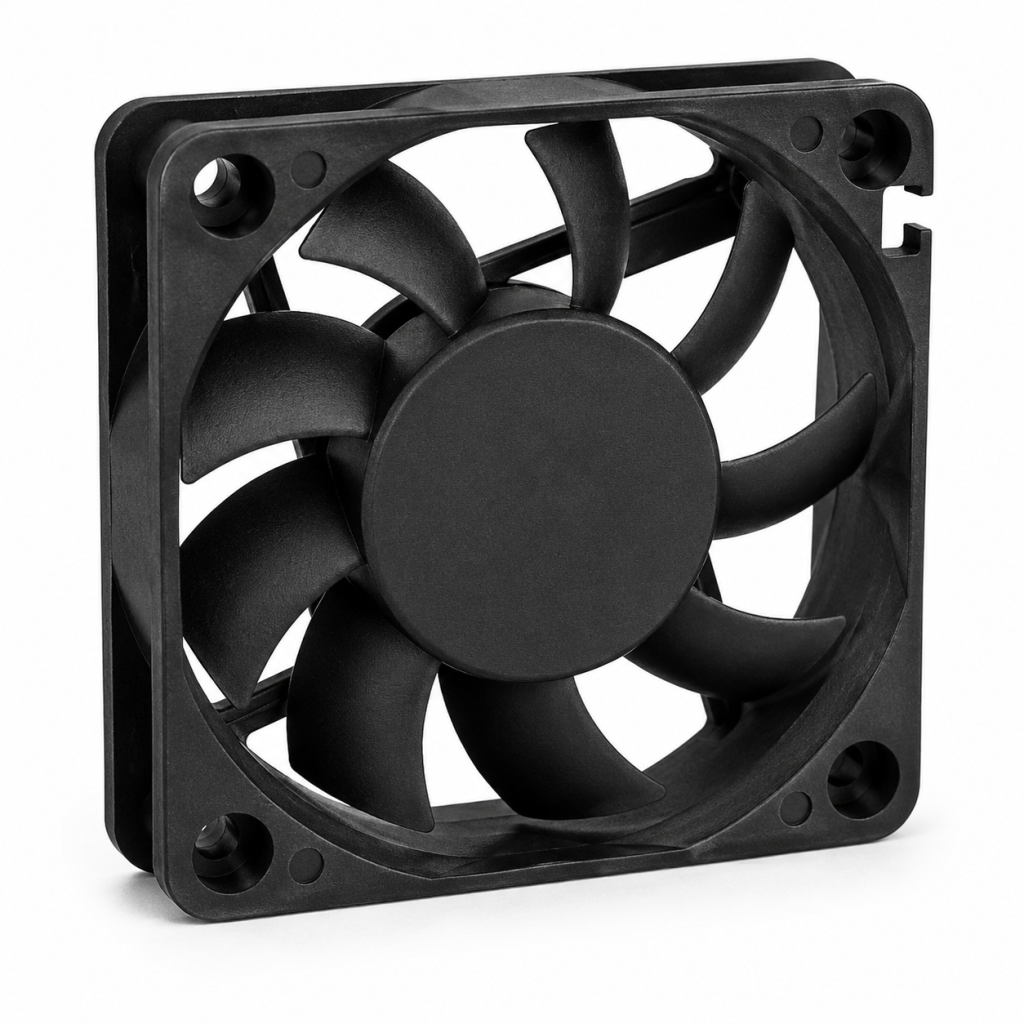

DC FANS
60x60x15 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: FMB / Ball Bearing
Motor Structure: Brushless DC Motor
Weight: 44 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

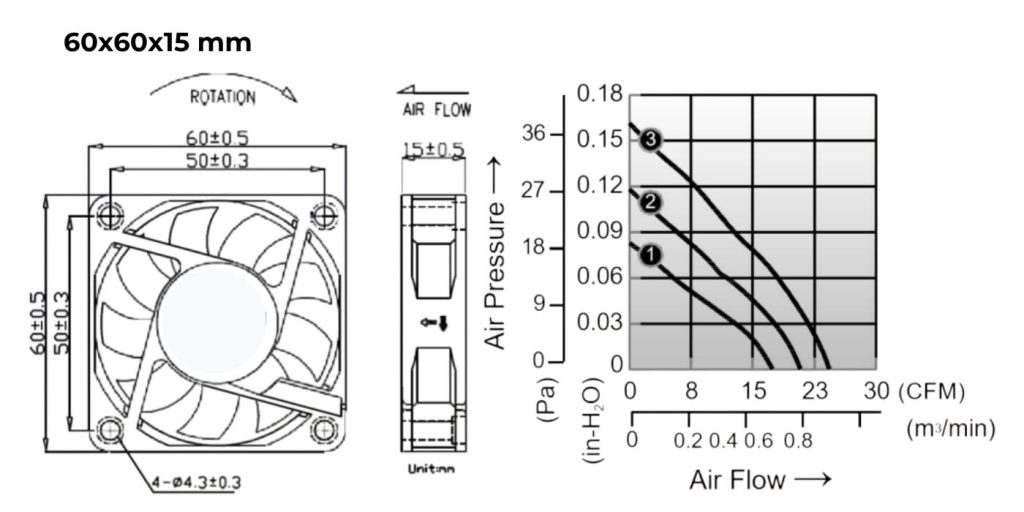

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD126015JB | 12 | 7.0 – 13.2 | 0.06 | 3000 | 15.0 | 0.09 | 24 |
| HYD126015LB | 12 | 7.0 – 13.2 | 0.08 | 3500 | 19.0 | 0.14 | 29 |
| HYD126015MB | 12 | 7.0 – 13.2 | 0.10 | 4000 | 21.7 | 0.16 | 32 |
| HYD126015HB | 12 | 7.0 – 13.2 | 0.12 | 4500 | 23.1 | 0.18 | 35 |
| HYD126015XB | 12 | 7.0 – 13.2 | 0.17 | 5000 | 26.5 | 0.23 | 37 |
| HYD246015LB | 24 | 14.0 – 26.4 | 0.08 | 3500 | 19.0 | 0.14 | 29 |
| HYD246015MB | 24 | 14.0 – 26.4 | 0.07 | 4000 | 21.7 | 0.16 | 32 |
| HYD246015HB | 24 | 14.0 – 26.4 | 0.08 | 4500 | 23.1 | 0.18 | 35 |
| HYD246015XB | 24 | 14.0 – 26.4 | 0.11 | 5000 | 26.5 | 0.23 | 37 |
