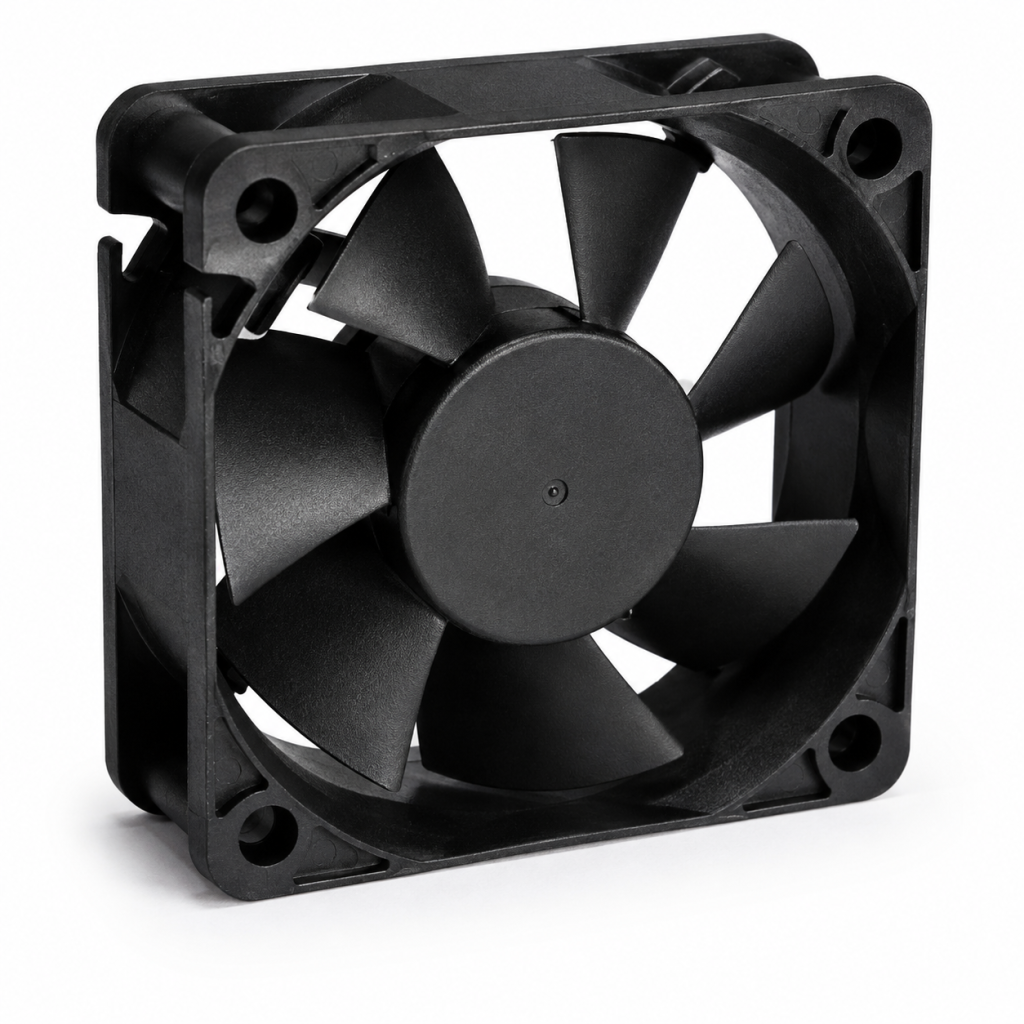

DC FANS

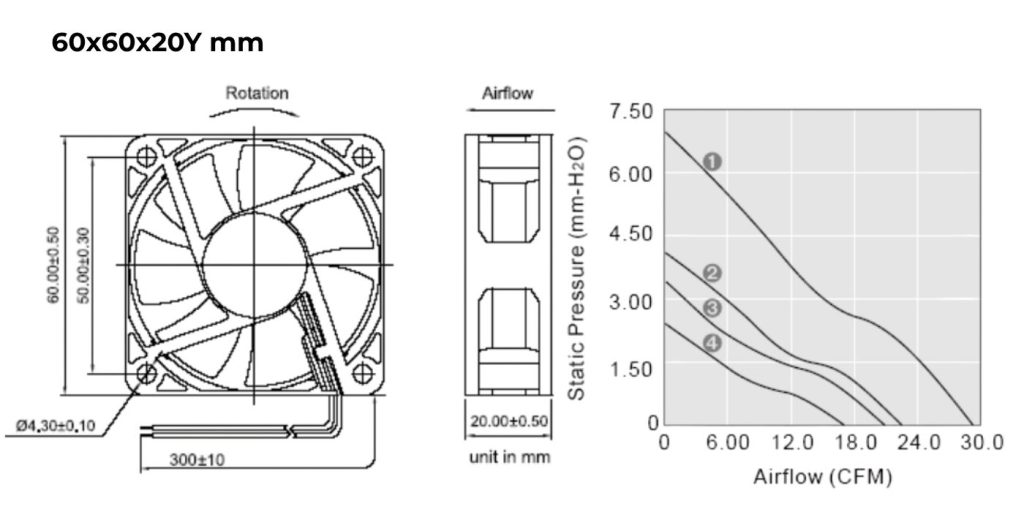

60x60x20Y mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Thermoplastic PBT UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: Sleeve or Ball Bearing
Motor Structure: Brushless DC Motor
Termination: Lead wire 300± 10mm
Weight: 44 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling
TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYD126020LBL | 12 | 7.0 – 13.2 | 0.08 | 0.96 | 3000 | 17 | 0.09 | 26 |
| HYD126020MBL | 12 | 7.0 – 13.2 | 0.11 | 1.32 | 3600 | 20 | 0.13 | 30 |
| HYD126020HBL | 12 | 7.0 – 13.2 | 0.16 | 1.92 | 4200 | 22.9 | 0.17 | 35 |
| HYD126020XBL | 12 | 7.0 – 13.2 | 0.28 | 3.36 | 5300 | 29.1 | 0.28 | 41 |
| HYD246020LBL | 24 | 12 – 26.4 | 0.04 | 0.96 | 3000 | 17 | 0.09 | 26 |
| HYD246020MBL | 24 | 12 – 26.4 | 0.07 | 1.68 | 3600 | 20 | 0.13 | 30 |
| HYD246020HBL | 24 | 12 – 26.4 | 0.08 | 1.92 | 4200 | 22.9 | 0.17 | 35 |
| HYD246020XBL | 24 | 12 – 26.4 | 0.12 | 2.88 | 5300 | 29.1 | 0.28 | 41 |
