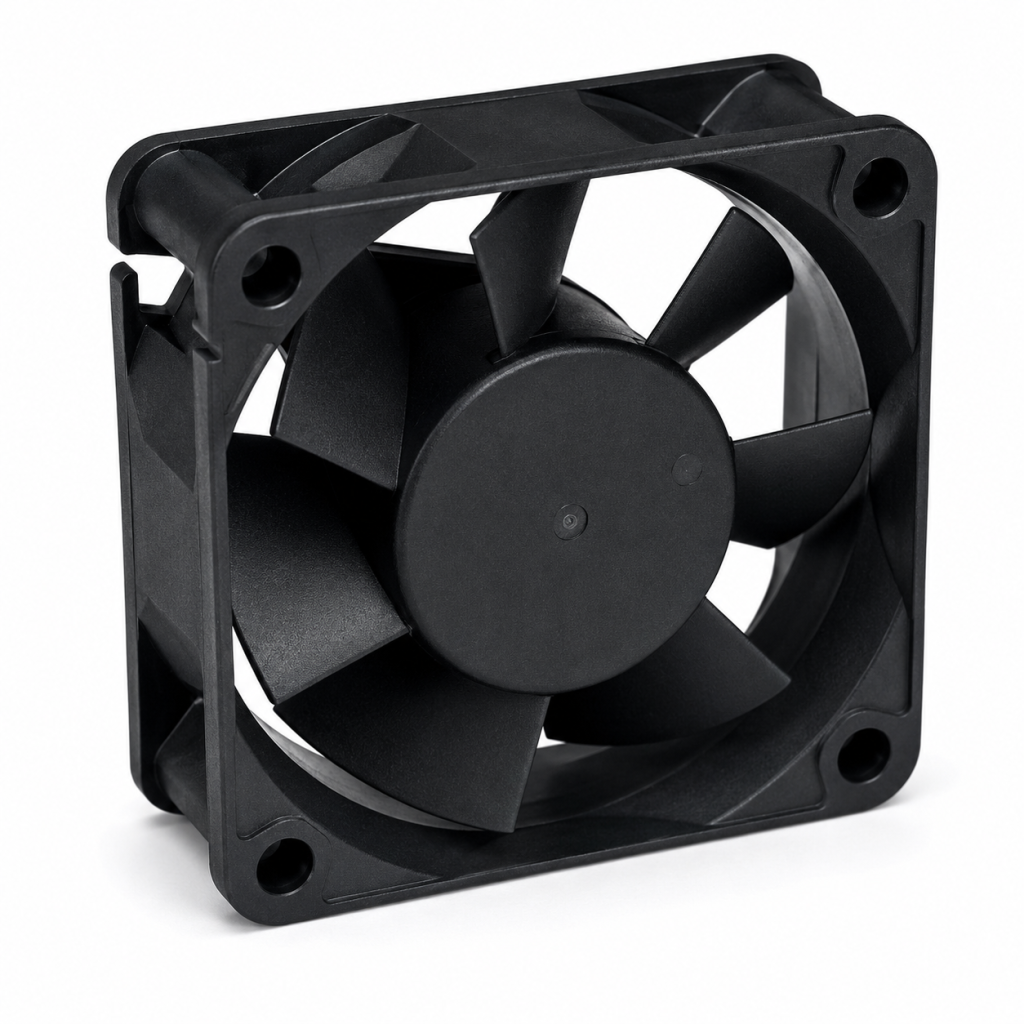

DC FANS
60x60x25Y mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Thermoplastic PBT UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: Sleeve or Ball Bearing
Motor Structure: Brushless DC Motor
Termination: Lead wire 300± 10mm
Weight: 56 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

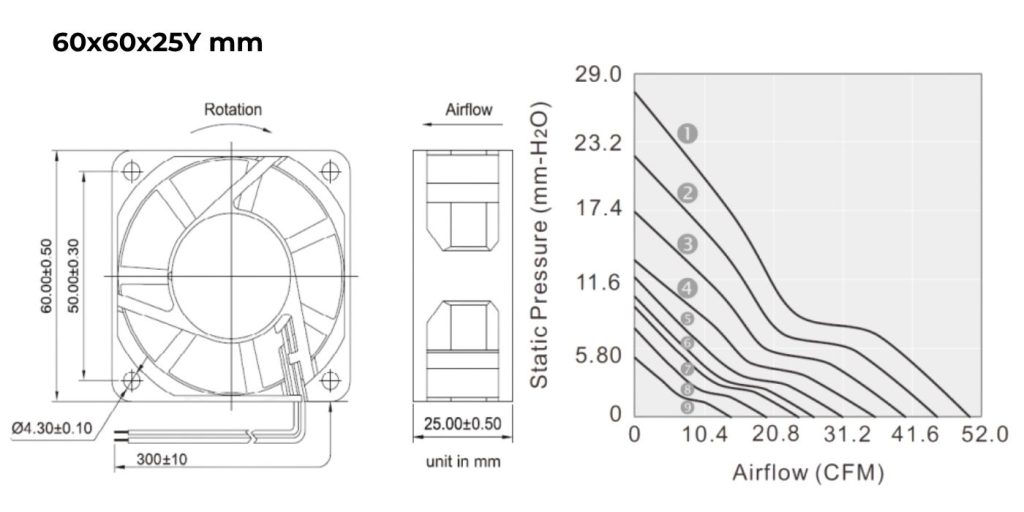

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYD126025XBL | 12 | 7.0 – 13.2 | 0.42 | 5.04 | 8500 | 40.6 | 0.69 | 47 |
| HYD126025UBL | 12 | 7.0 – 13.2 | 0.63 | 7.56 | 9500 | 45.4 | 0.87 | 49.5 |
| HYD126025WBL | 12 | 7.0 – 13.2 | 0.90 | 10.8 | 10500 | 50.2 | 1.09 | 51.5 |
| HYD126025HBL | 12 | 7.0 – 13.2 | 0.075 | 1.8 | 5100 | 24.5 | 0.37 | 36 |
| HYD246025XBL | 24 | 12 – 26.4 | 0.11 | 2.64 | 6500 | 31.2 | 0.46 | 41 |
| HYD246025UBL | 24 | 12 – 26.4 | 0.41 | 9.84 | 10500 | 50.2 | 1.09 | 51.5 |
| HYD486025HBL | 48 | 24 – 56 | 0.055 | 2.64 | 5100 | 24.5 | 0.37 | 36 |
| HYD486025XBL | 48 | 24 – 56 | 0.08 | 3.84 | 6800 | 32.7 | 0.49 | 42 |
| HYD486025UBL | 48 | 24 – 56 | 0.24 | 11.52 | 10500 | 50.2 | 1.09 | 51.5 |
