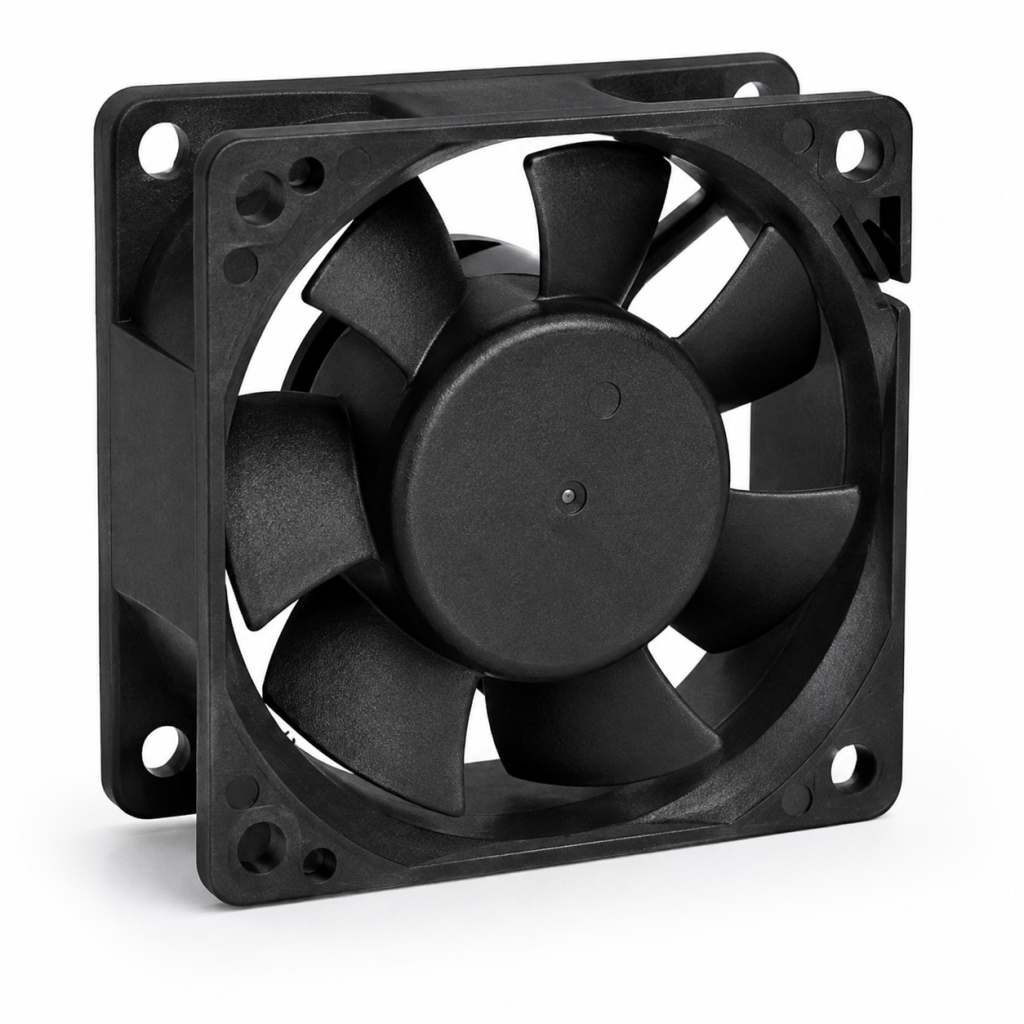

DC FANS
60x60x38 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: Ball Bearing
Motor Structure: Brushless DC Motor
Weight: 145 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

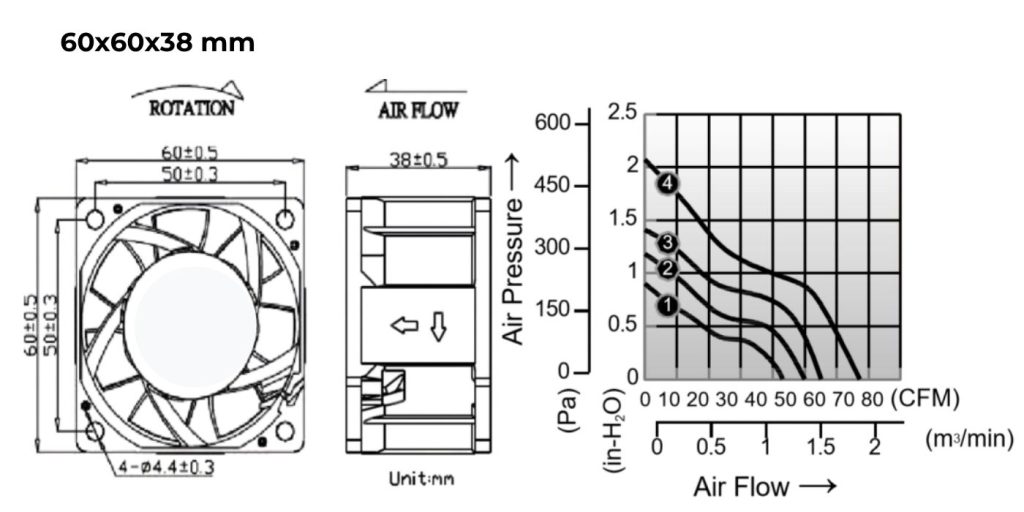

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD126038JB | 12 | 7.0 – 13.2 | 0.52 | 8000 | 43.1 | 0.90 | 51 |
| HYD126038LB | 12 | 7.0 – 13.2 | 0.68 | 9000 | 50.8 | 1.19 | 54 |
| HYD126038MB | 12 | 7.0 – 13.2 | 1.00 | 10000 | 55.2 | 1.41 | 57 |
| HYD126038HB | 12 | 7.0 – 13.2 | 1.38 | 12000 | 67.3 | 2.07 | 62 |
| HYD246038LB | 24 | 14.0 – 26.4 | 0.22 | 8000 | 43.1 | 0.90 | 51 |
| HYD246038MB | 24 | 14.0 – 26.4 | 0.40 | 9000 | 50.8 | 1.19 | 54 |
| HYD246038HB | 24 | 14.0 – 26.4 | 0.53 | 10000 | 55.2 | 1.41 | 57 |
| HYD246038XB | 24 | 14.0 – 26.4 | 0.75 | 12000 | 67.3 | 2.07 | 62 |
