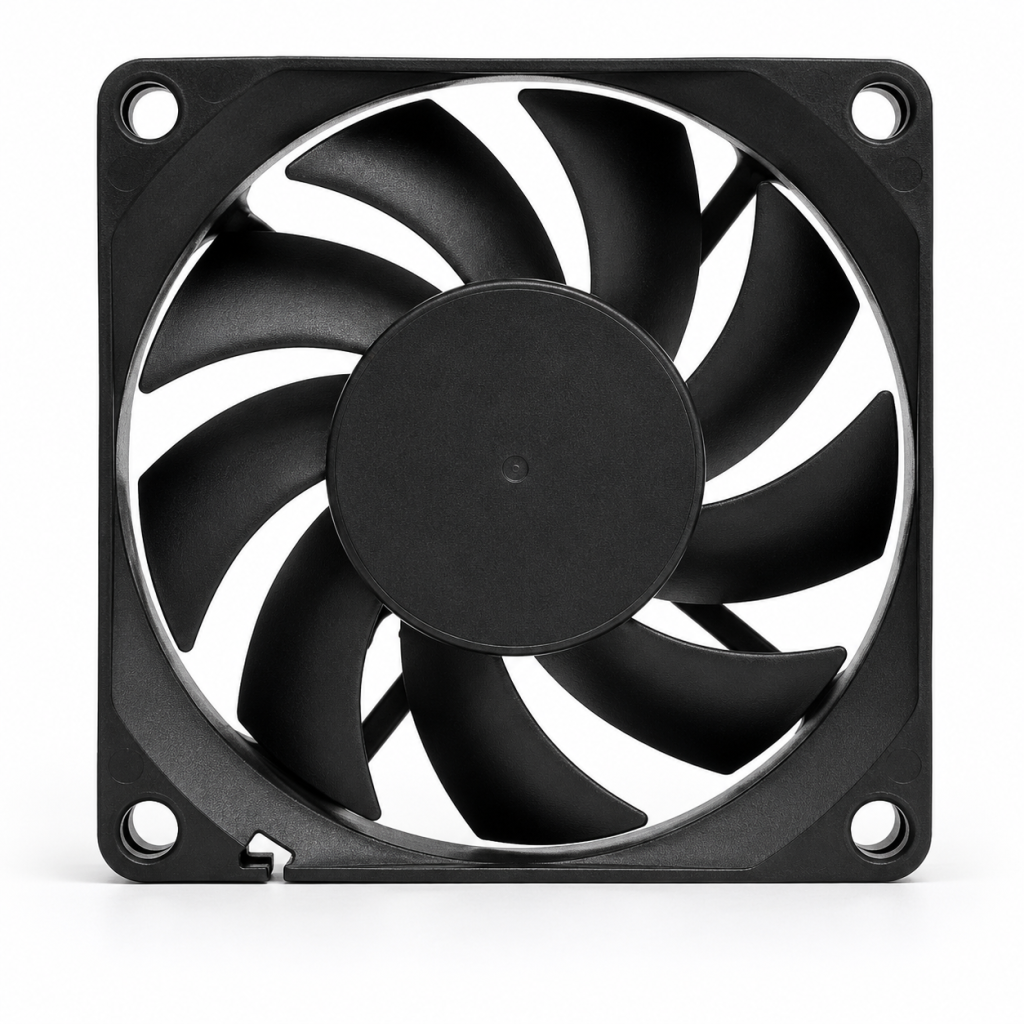

DC FANS

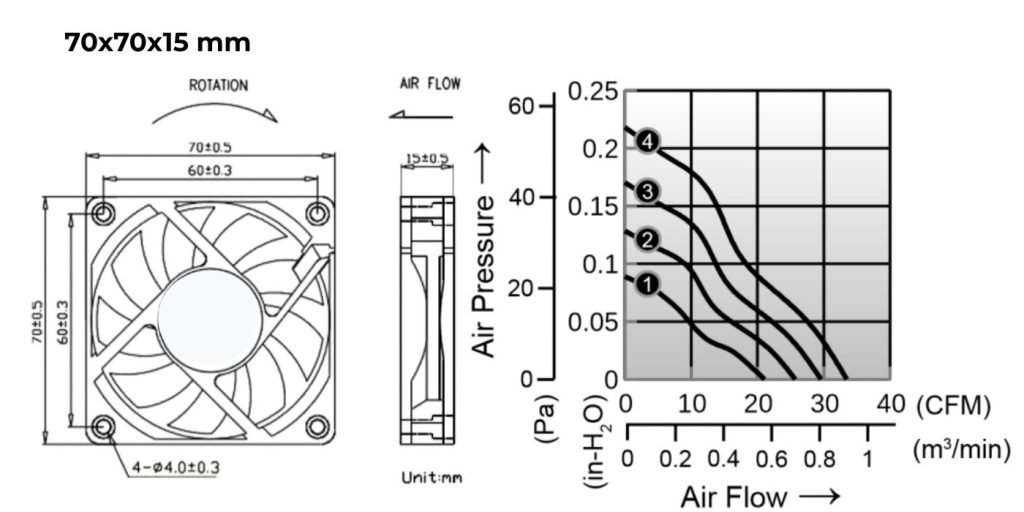

70x70x15 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: Ball Bearing
Motor Structure: Brushless DC Motor
Weight: 74 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling
TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD127015JB | 12 | 7.0 – 13.2 | 0.10 | 2800 | 21.1 | 0.09 | 27 |
| HYD127015LB | 12 | 7.0 – 13.2 | 0.12 | 3300 | 25.7 | 0.13 | 31 |
| HYD127015MB | 12 | 7.0 – 13.2 | 0.17 | 3800 | 29.6 | 0.17 | 35 |
| HYD127015HB | 12 | 7.0 – 13.2 | 0.25 | 4300 | 33.5 | 0.22 | 39 |
| HYD247015MB | 24 | 14.0 – 26.4 | 0.10 | 3800 | 29.6 | 0.17 | 35 |
| HYD247015HB | 24 | 14.0 – 26.4 | 0.12 | 4300 | 33.5 | 0.22 | 39 |
