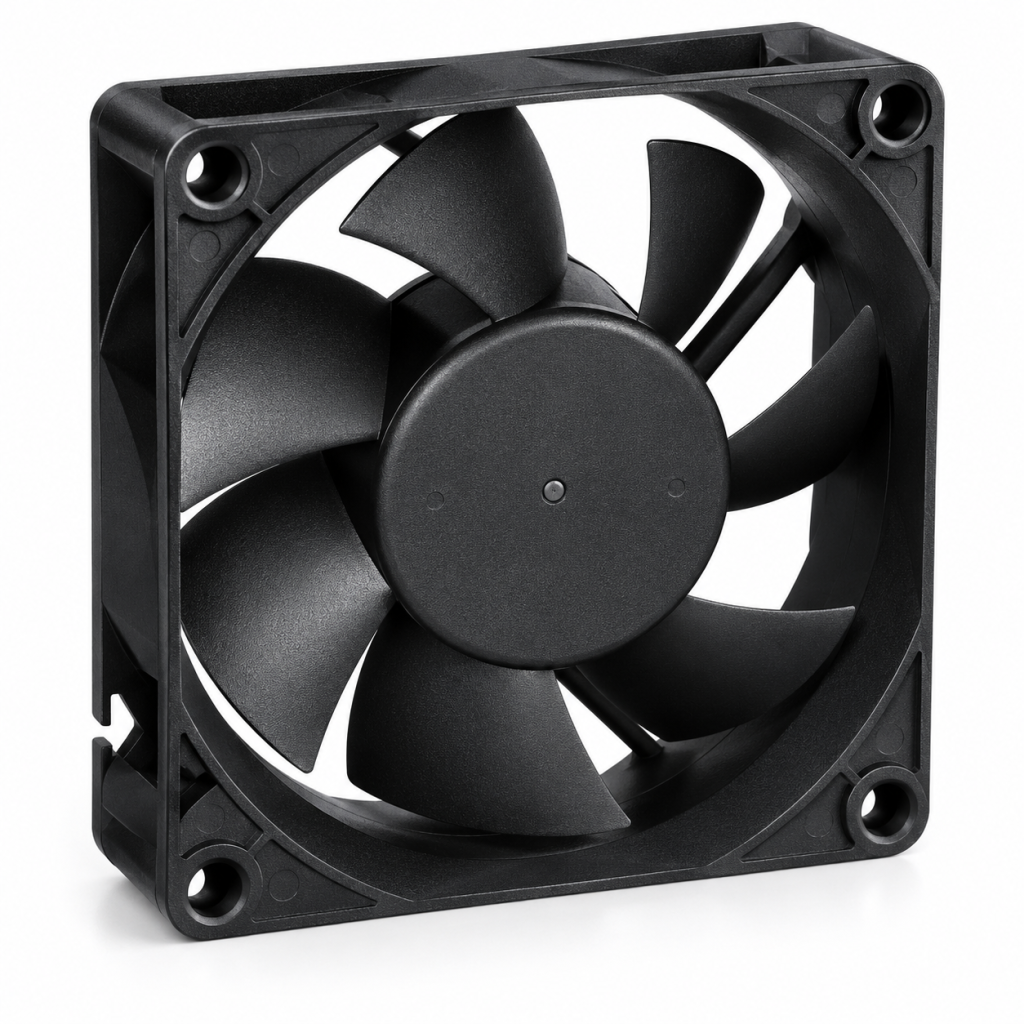

DC FANS
70x70x25 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: Sleeve or Ball Bearing
Motor Structure: Brushless DC Motor
Weight: 74 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

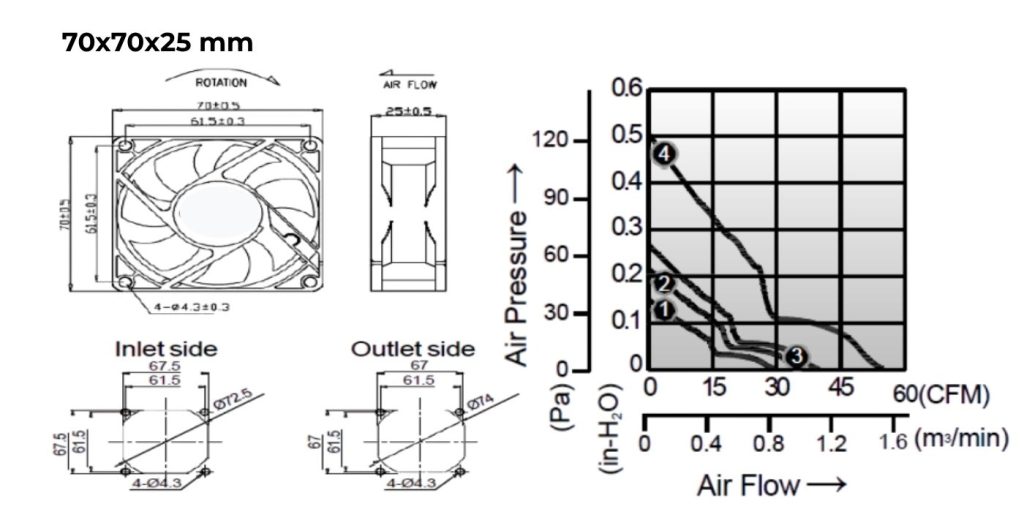

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD127025LB | 12 | 7.0 – 13.2 | 0.07 | 3000 | 30 | 0.15 | 27 |
| HYD127025MB | 12 | 7.0 – 13.2 | 0.09 | 3600 | 35.6 | 0.22 | 32 |
| HYD127025HB | 12 | 7.0 – 13.2 | 0.13 | 4000 | 39.9 | 0.27 | 37 |
| HYD127025UB | 12 | 7.0 – 13.2 | 0.16 | 5500 | 54.8 | 0.50 | 45 |
| HYD247025LB | 24 | 14.0 – 26.4 | 0.05 | 3000 | 30 | 0.15 | 27 |
| HYD247025MB | 24 | 14.0 – 26.4 | 0.06 | 3600 | 35.6 | 0.22 | 32 |
| HYD247025HB | 24 | 14.0 – 26.4 | 0.08 | 4000 | 39.9 | 0.27 | 37 |
| HYD247025UB | 24 | 14.0 – 26.4 | 0.35 | 5500 | 54.8 | 0.50 | 45 |
| HYD487025LB | 48 | 28.0 – 56.0 | 0.04 | 3000 | 30 | 0.15 | 27 |
| HYD487025MB | 48 | 28.0 – 56.0 | 0.05 | 3600 | 35.6 | 0.22 | 32 |
| HYD487025HB | 48 | 28.0 – 56.0 | 0.07 | 4000 | 39.9 | 0.27 | 37 |
| HYD487025UB | 48 | 28.0 – 56.0 | 0.07 | 5500 | 54.8 | 0.50 | 45 |
