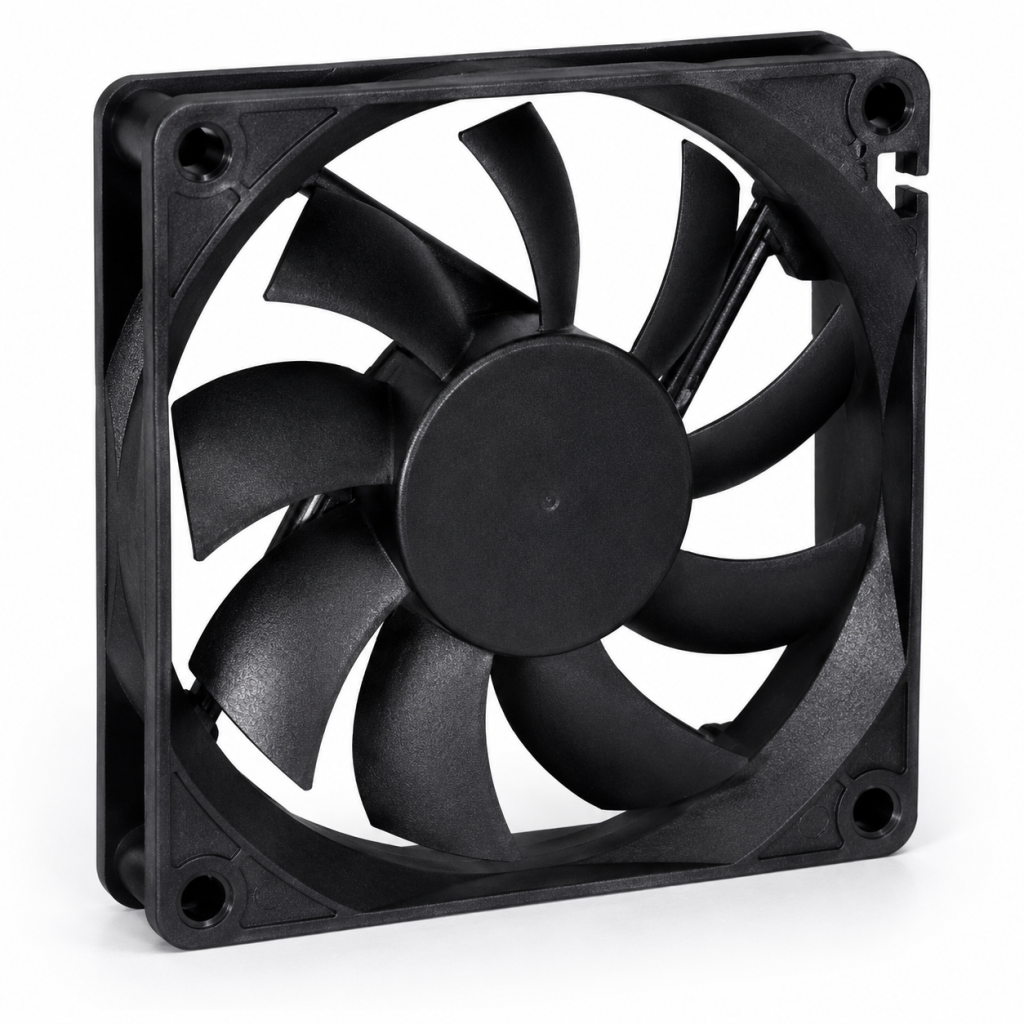

DC FANS
80x80x15 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: Sleeve or Ball Bearing
Motor Structure: Brushless DC Motor
Weight: 54 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

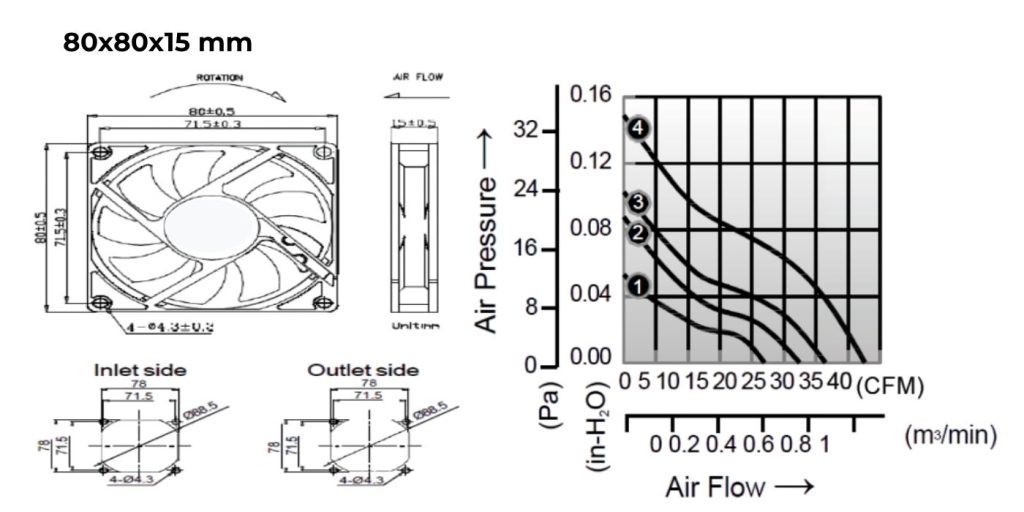

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD128015JB | 12 | 7.0 – 13.2 | 0.06 | 2400 | 22.0 | 0.05 | 25 |
| HYD128015LB | 12 | 7.0 – 13.2 | 0.10 | 2700 | 27.5 | 0.09 | 30 |
| HYD128015MB | 12 | 7.0 – 13.2 | 0.12 | 3100 | 31.5 | 0.10 | 32 |
| HYD128015HB | 12 | 7.0 – 13.2 | 0.16 | 3600 | 37.6 | 0.15 | 36 |
| HYD128015XB | 12 | 7.0 – 13.2 | 0.30 | 4500 | 46.2 | 0.21 | 43 |
| HYD248015JB | 24 | 14.0 – 26.4 | 0.04 | 2400 | 22.0 | 0.05 | 25 |
| HYD248015LB | 24 | 14.0 – 26.4 | 0.06 | 2700 | 27.5 | 0.09 | 30 |
| HYD248015MB | 24 | 14.0 – 26.4 | 0.08 | 3100 | 31.5 | 0.10 | 32 |
| HYD248015HB | 24 | 14.0 – 26.4 | 0.10 | 3600 | 37.6 | 0.15 | 36 |
