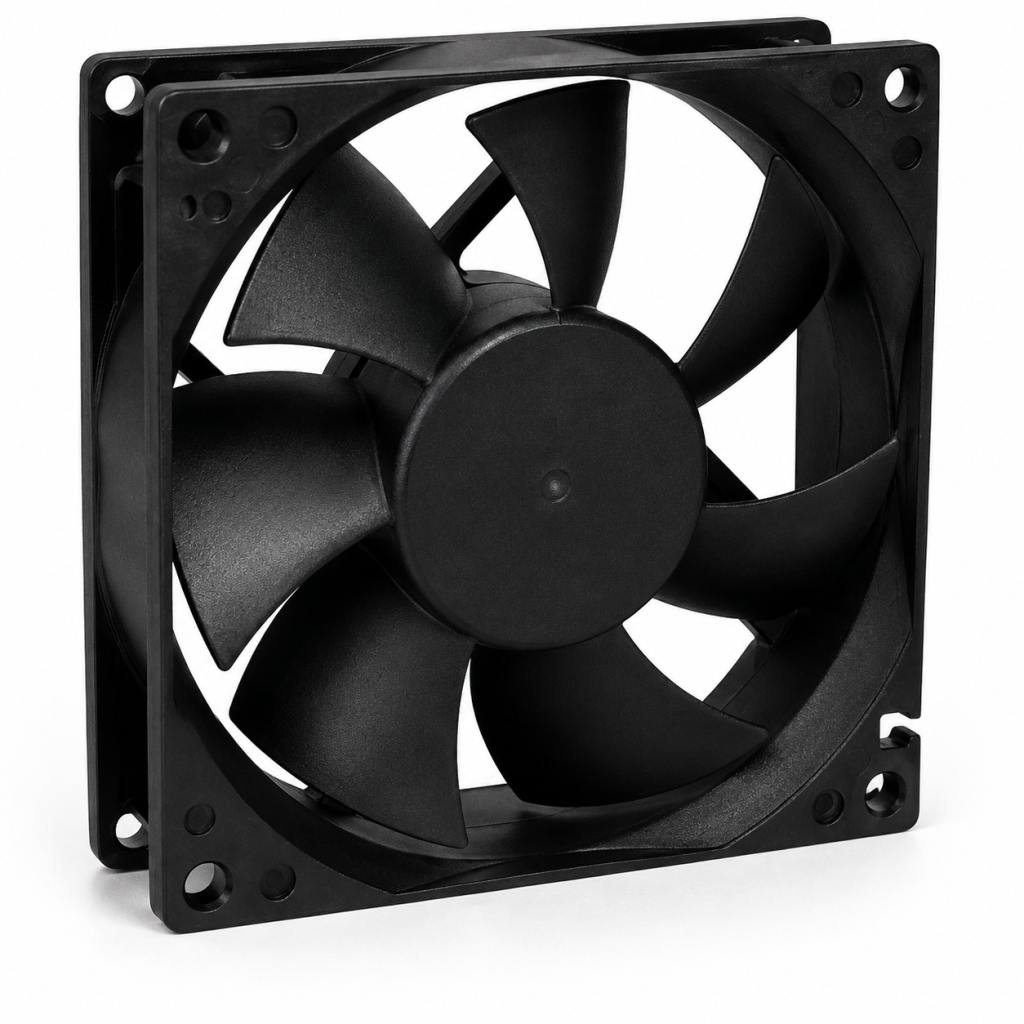

DC FANS
80x80x25 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: Ball Bearing
Motor Structure: Brushless DC Motor
Weight: 80 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

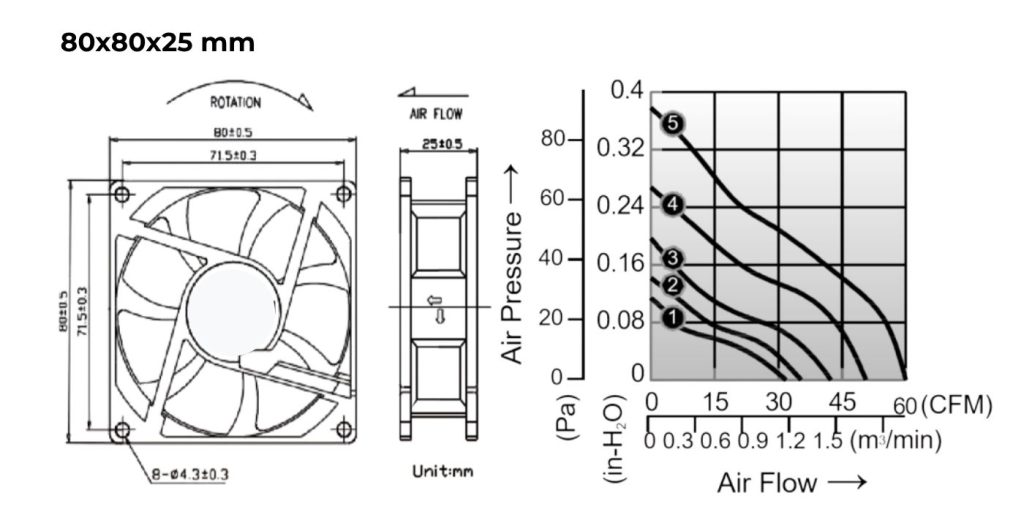

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD128025HB | 12 | 7.0 – 13.2 | 0.32 | 4300 | 50.5 | 0.27 | 43 |
| HYD128025UB | 12 | 7.0 – 13.2 | 0.50 | 5000 | 60.0 | 0.38 | 48 |
| HYD128025LB | 12 | 7.0 – 13.2 | 0.50 | 5700 | 74.3 | 0.38 | 50 |
| HYD128025MB | 12 | 7.0 – 13.2 | 0.16 | 3600 | 42.4 | 0.20 | 38 |
| HYD248025HB | 24 | 14.0 – 26.4 | 0.23 | 4300 | 50.5 | 0.27 | 43 |
| HYD248025UB | 24 | 14.0 – 26.4 | 0.25 | 5000 | 60.0 | 0.38 | 48 |
| HYD488025MB | 48 | 28.0 – 56.0 | 0.09 | 3600 | 42.4 | 0.20 | 38 |
| HYD488025HB | 48 | 28.0 – 56.0 | 0.20 | 4300 | 50.5 | 0.27 | 43 |
| HYD488025UB | 48 | 28.0 – 56.0 | 0.21 | 5000 | 60.0 | 0.38 | 48 |
