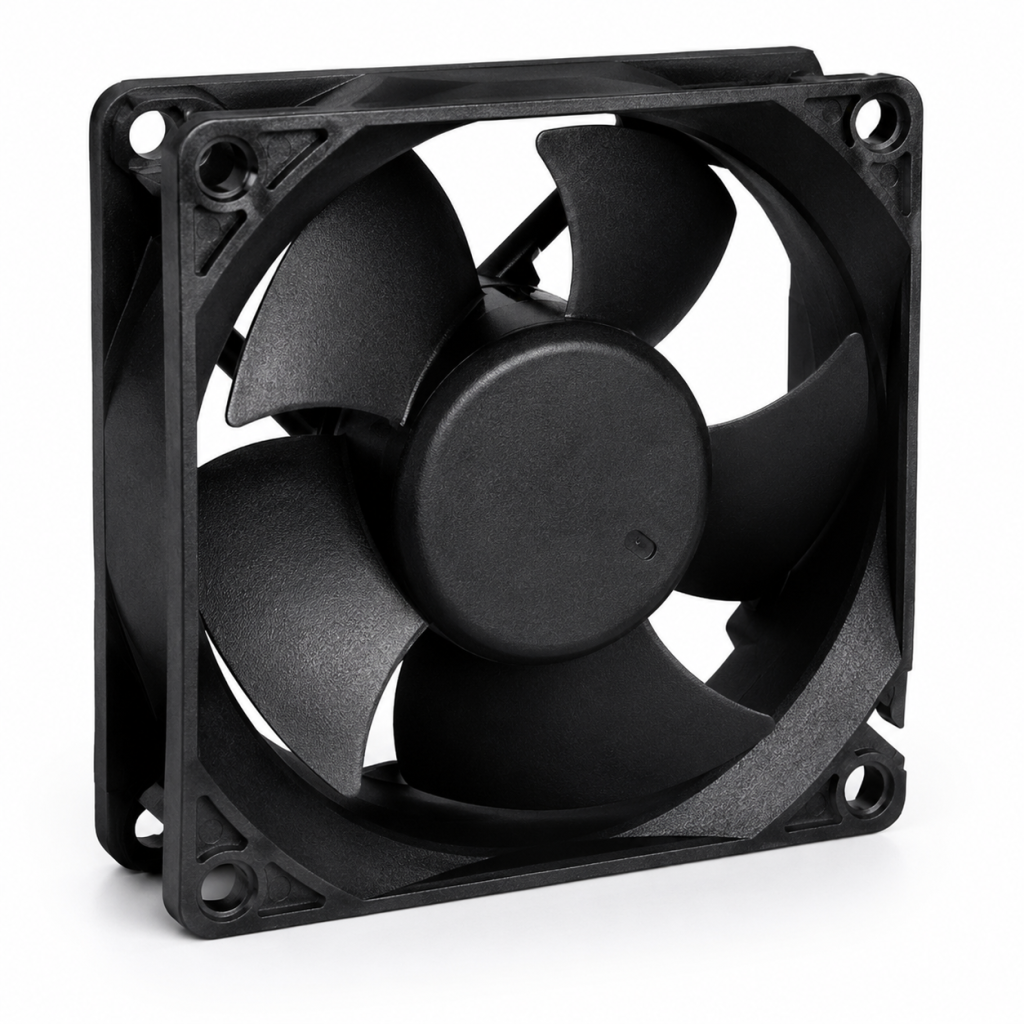

DC FANS
80x80x32 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: Ball Bearing
Motor Structure: Brushless DC Motor
Weight: 120 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

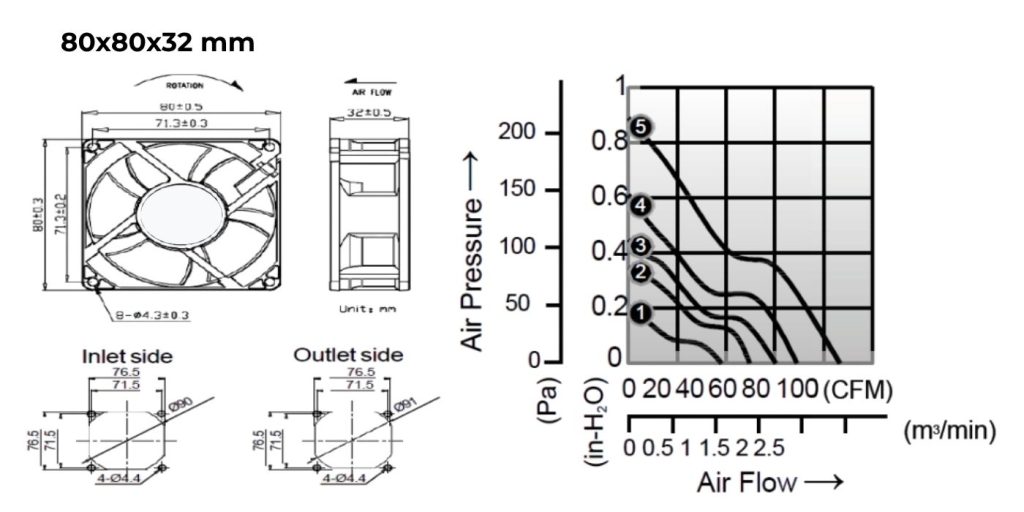

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD128032JB | 12 | 7.0 – 13.2 | 0.15 | 3000 | 38.2 | 0.20 | 31 |
| HYD128032LB | 12 | 7.0 – 13.2 | 0.20 | 4000 | 49.7 | 0.35 | 39 |
| HYD128032MB | 12 | 7.0 – 13.2 | 0.35 | 4800 | 60.4 | 0.45 | 45 |
| HYD128032HB | 12 | 7.0 – 13.2 | 0.50 | 5500 | 69.1 | 0.61 | 48 |
| HYD128032XB | 12 | 7.0 – 13.2 | 0.80 | 6800 | 86.7 | 0.89 | 54 |
| HYD248032LB | 24 | 14.0 – 26.4 | 0.35 | 4800 | 60.4 | 0.45 | 45 |
| HYD248032LB | 24 | 14.0 – 26.4 | 0.50 | 5500 | 69.1 | 0.61 | 48 |
| HYD248032MB | 24 | 14.0 – 26.4 | 0.75 | 7000 | 89.2 | 0.98 | 55 |
