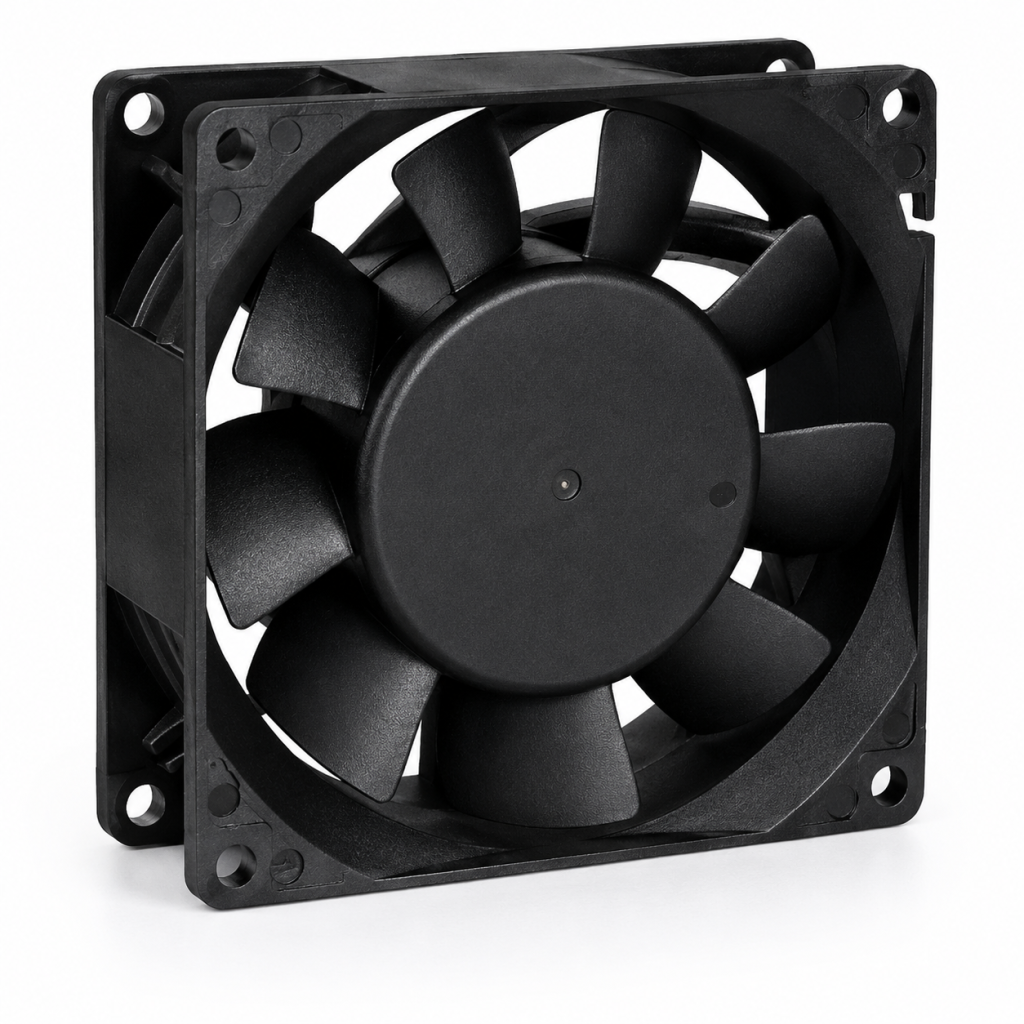

DC FANS
80x80x38 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: Ball Bearing
Motor Structure: Brushless DC Motor
Weight: 120 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

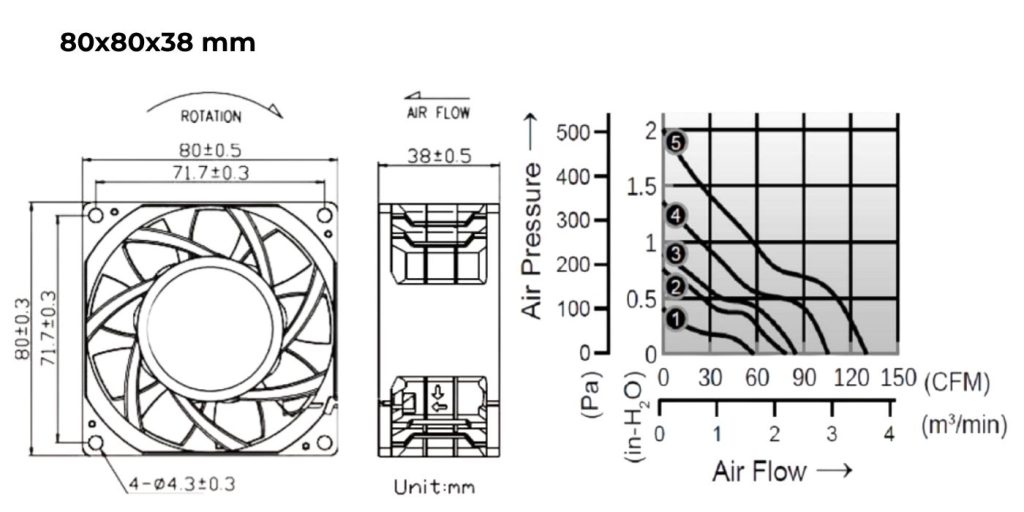

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD128038HB | 12 | 7.0 – 13.2 | 1.00 | 6100 | 84.8 | 0.89 | 56 |
| HYD128038XB | 12 | 7.0 – 13.2 | 1.50 | 7500 | 105.5 | 1.36 | 62 |
| HYD128038UB | 12 | 7.0 – 13.2 | 2.70 | 9000 | 130 | 2.00 | 66 |
| HYD248038HB | 24 | 14.0 – 26.4 | 0.45 | 6100 | 84.8 | 0.89 | 56 |
| HYD248038XB | 24 | 14.0 – 26.4 | 0.82 | 7500 | 105.5 | 1.36 | 62 |
| HYD248038UB | 24 | 14.0 – 26.4 | 1.40 | 9000 | 130 | 2.00 | 66 |
| HYD488038HB | 48 | 28.0 – 56.0 | 0.51 | 6100 | 84.8 | 0.89 | 56 |
| HYD488038XB | 48 | 28.0 – 56.0 | 0.58 | 7500 | 105.5 | 1.36 | 62 |
| HYD488038UB | 48 | 28.0 – 56.0 | 0.90 | 9000 | 130 | 2.00 | 66 |
