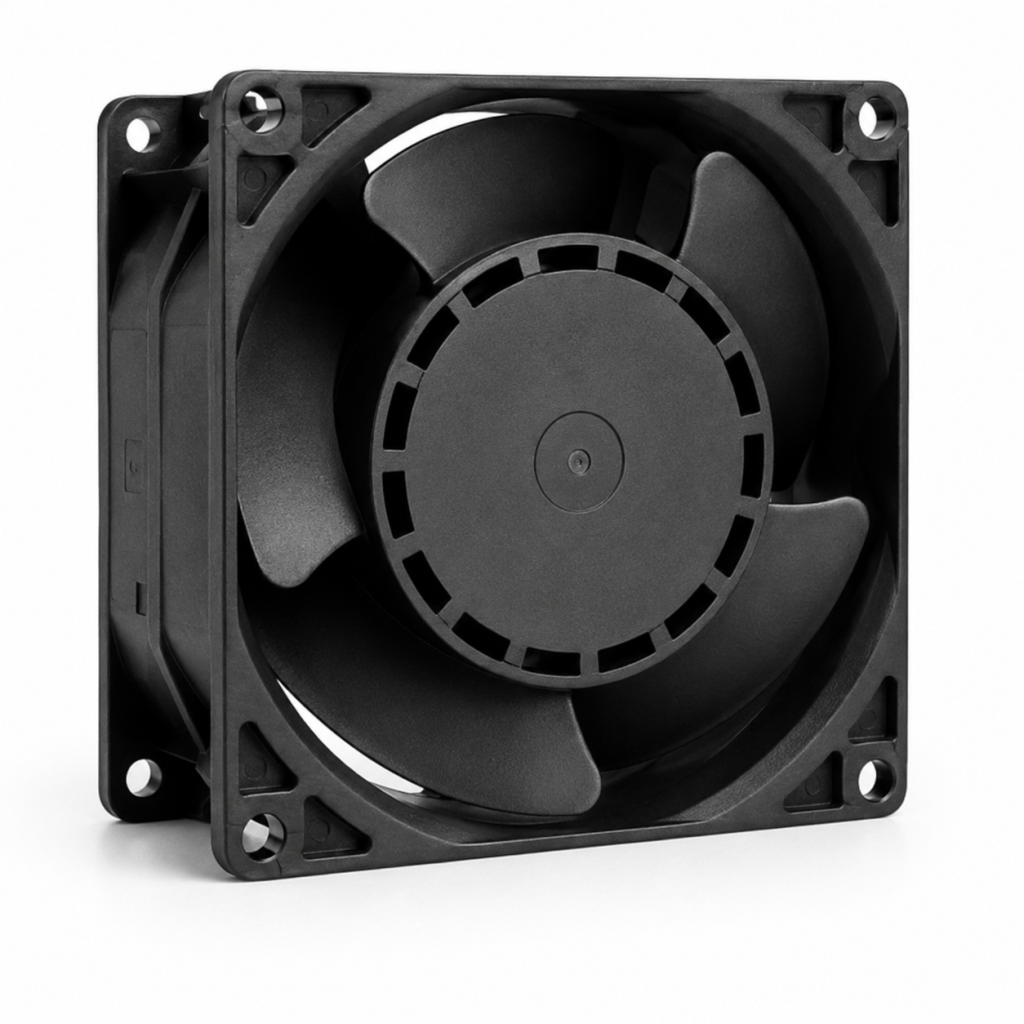

DC FANS
80x80x56 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: Ball Bearing
Motor Structure: Brushless DC Motor
Weight: 308 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling
TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD128056MB | 12 | 7.0 – 13.2 | 1.10 | 8000 | 54.1 | 2.10 | 64 |
| HYD128056HB | 12 | 7.0 – 13.2 | 1.30 | 9600 | 62.2 | 2.45 | 68 |
