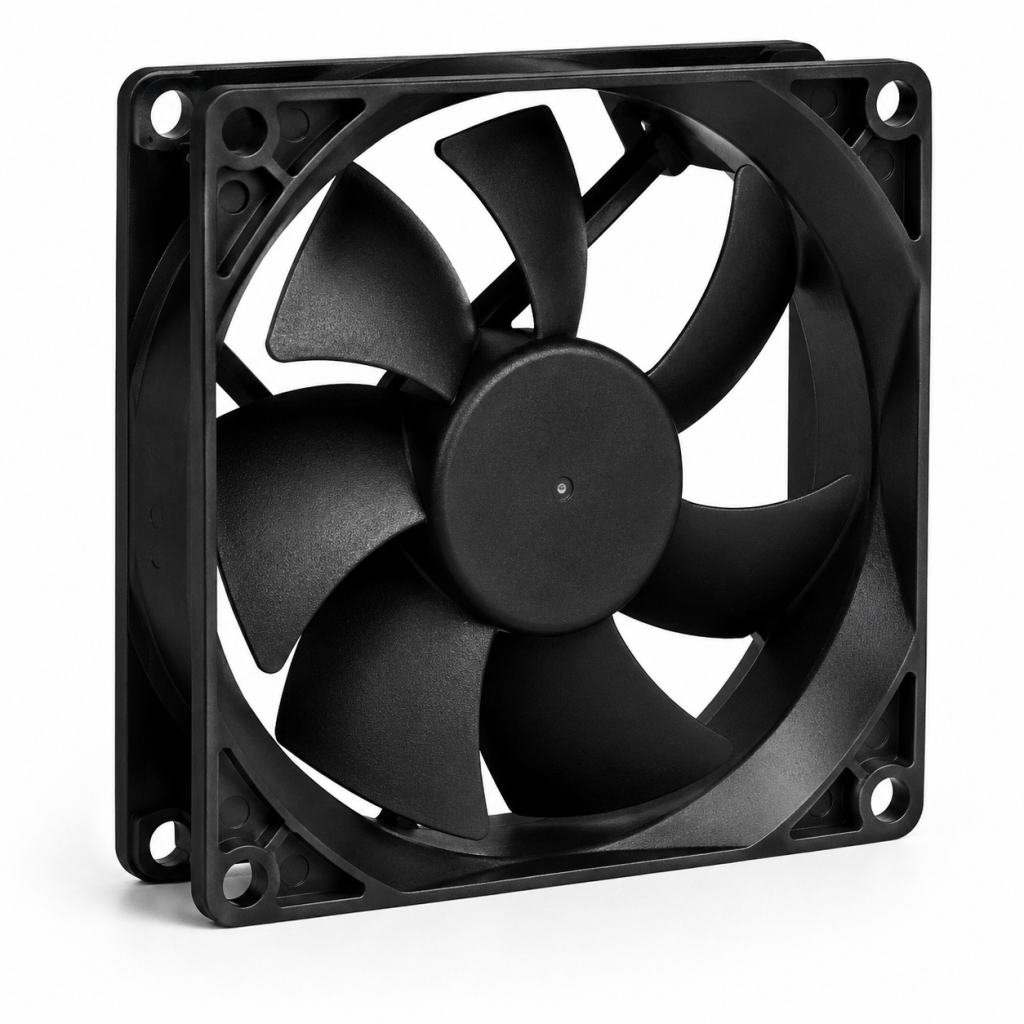

DC FANS
92x92x25C mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: FMB / Ball Bearing
Motor Structure: Brushless DC Motor
Weight: 89 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

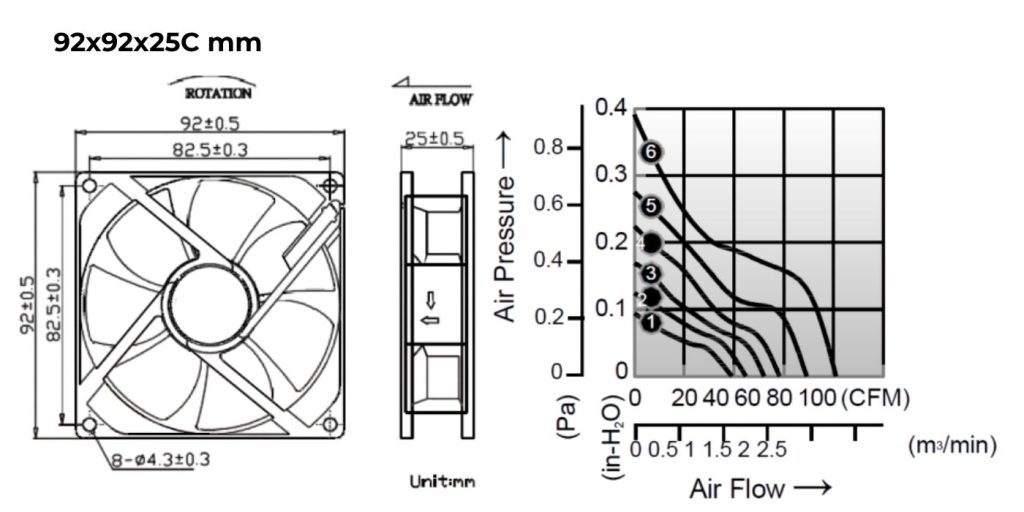

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYDC129225HB | 12 | 7.0 – 13.2 | 0.20 | 3200 | 58.3 | 0.22 | 38 |
| HYDC129225XB | 12 | 7.0 – 13.2 | 0.30 | 3800 | 69.2 | 0.28 | 45 |
| HYDC129225UB | 12 | 7.0 – 13.2 | 0.41 | 4500 | 81.0 | 0.40 | 49 |
| HYDC249225MB | 24 | 14.0 – 26.4 | 0.13 | 2850 | 52.1 | 0.17 | 34 |
| HYDC249225HB | 24 | 14.0 – 26.4 | 0.15 | 3200 | 58.3 | 0.22 | 38 |
| HYDC249225XB | 24 | 14.0 – 26.4 | 0.20 | 3800 | 69.2 | 0.28 | 45 |
| HYDC489225MB | 48 | 28.0 – 56.0 | 0.08 | 2850 | 52.1 | 0.17 | 34 |
| HYDC489225HB | 48 | 28.0 – 56.0 | 0.12 | 3200 | 58.3 | 0.22 | 38 |
| HYDC489225XB | 48 | 28.0 – 56.0 | 0.15 | 3800 | 69.2 | 0.28 | 45 |
