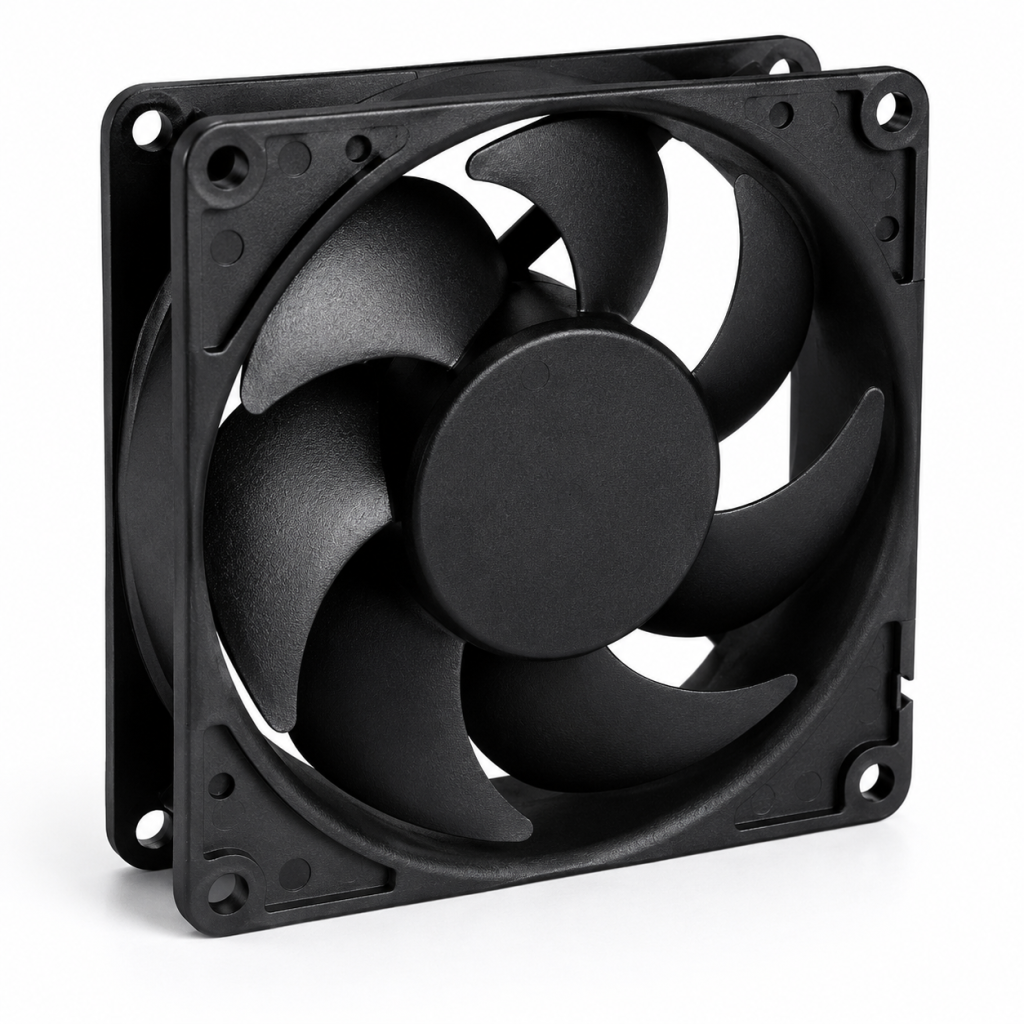

DC FANS
92x92x25Y mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Thermoplastic PBT UL94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: Sleeve or Ball Bearing
Motor Structure: Brushless DC Motor
Termination: Lead wire 300± 10mm
Weight: 117.6 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

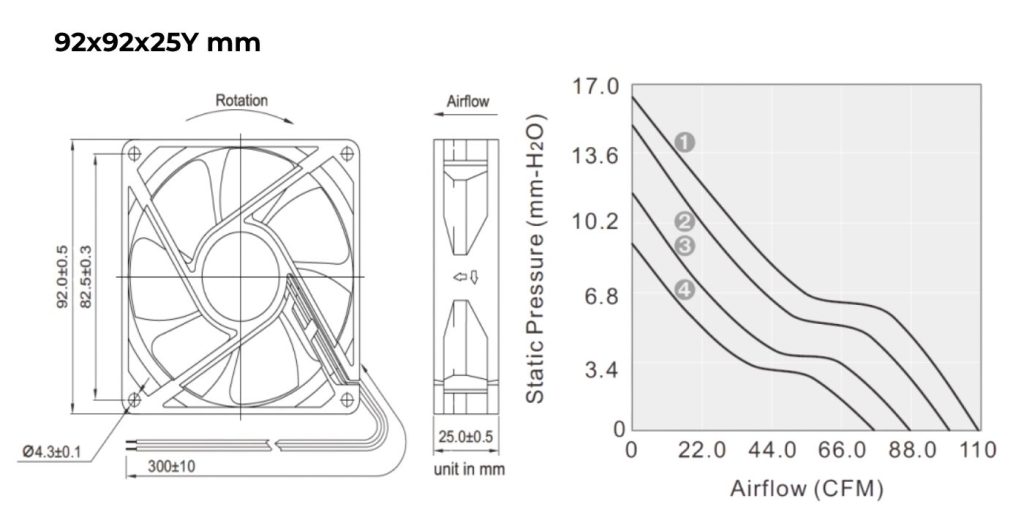

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYD129225MBL | 12 | 7.0 – 13.2 | 0.45 | 5.4 | 4300 | 87.8 | 0.46 | 47 |
| HYD129225HBL | 12 | 7.0 – 13.2 | 0.65 | 7.8 | 4800 | 100.3 | 0.60 | 49 |
| HYD129225XBL | 12 | 7.0 – 13.2 | 0.90 | 10.8 | 5300 | 109.3 | 0.65 | 51 |
| HYD249225MBL | 24 | 12.0 – 26.4 | 0.26 | 6.24 | 4300 | 87.8 | 0.46 | 47 |
| HYD249225HBL | 24 | 12.0 – 26.4 | 0.35 | 8.4 | 4800 | 100.3 | 0.59 | 49 |
| HYD249225XBL | 24 | 12.0 – 26.4 | 0.45 | 10.8 | 5300 | 109.3 | 0.65 | 51 |
| HYD489225MBL | 48 | 24.0 – 56.0 | 0.13 | 6.24 | 4300 | 87.8 | 0.46 | 47 |
| HYD489225HBL | 48 | 24.0 – 56.0 | 0.17 | 8.16 | 4800 | 100.3 | 0.59 | 49 |
| HYD489225XBL | 48 | 24.0 – 56.0 | 0.22 | 10.6 | 5300 | 109.3 | 0.65 | 51 |
