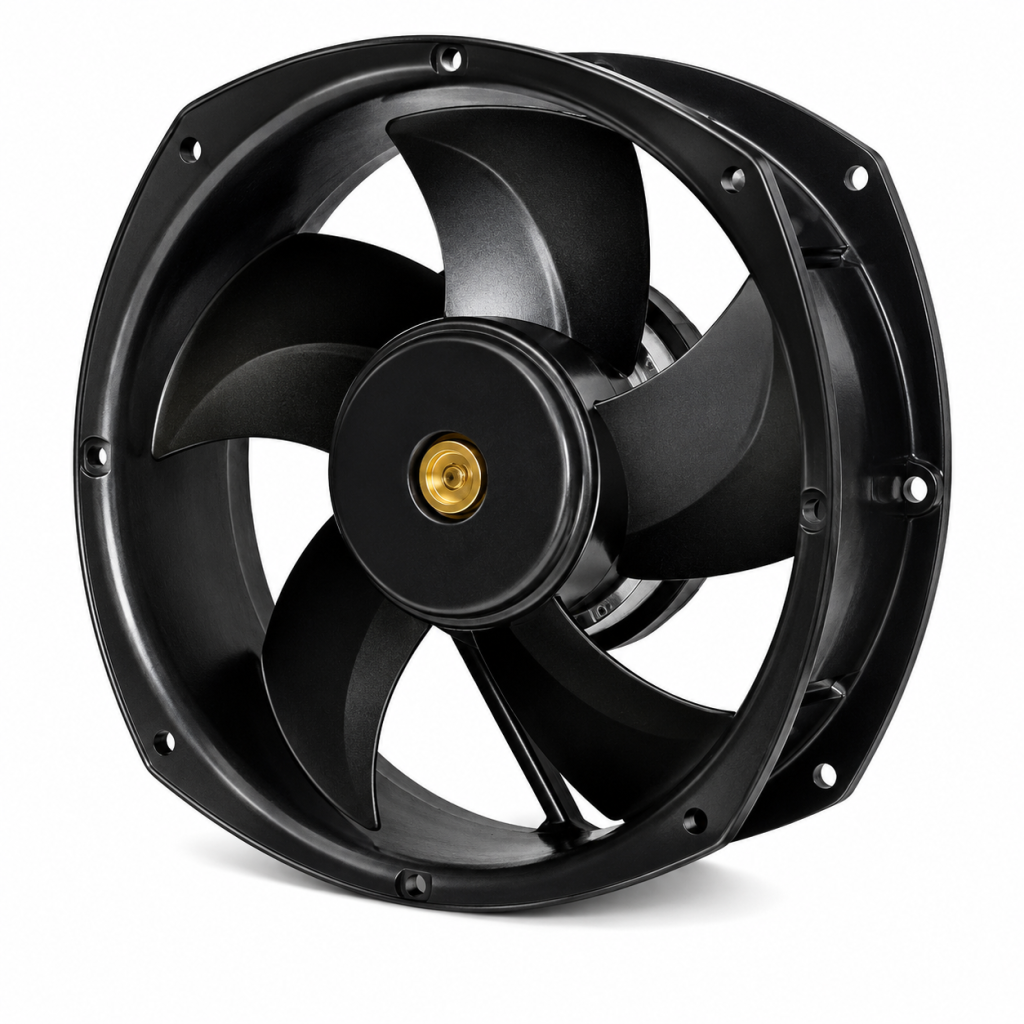

DC FANS

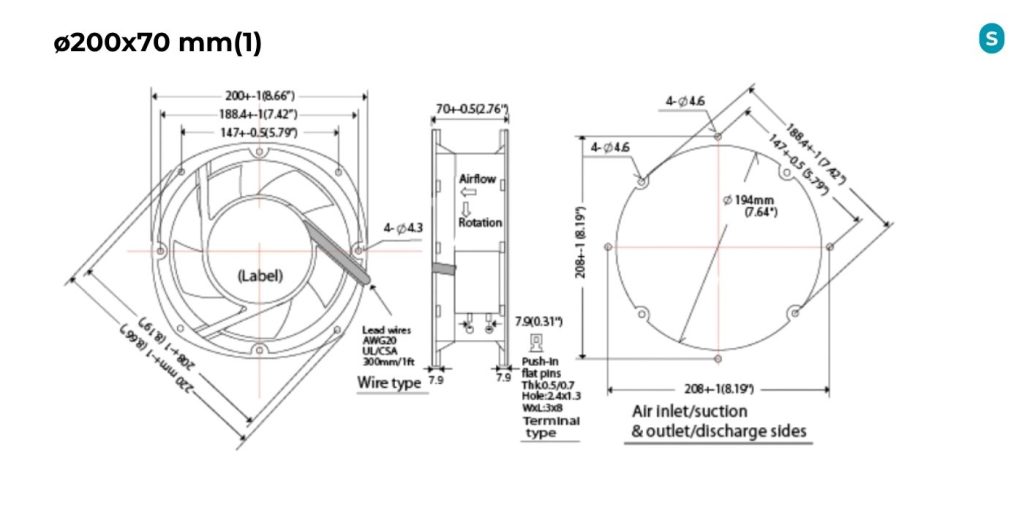

ø200x70 mm
PRODUCT SPECIFICATIONS
Frame: Aluminum
Impeller: All Metal Fan Blades, High-Performance Metal Impeller
Ambient Temperature Range: -20°C ~ +65°C
Bearing: Ball Bearing
Motor Structure: Permanent Magnet Brushless DC Motor
Termination: Terminals or Lead Wire 300 mm
Weight: 1,800 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling
TECHNICAL DATA

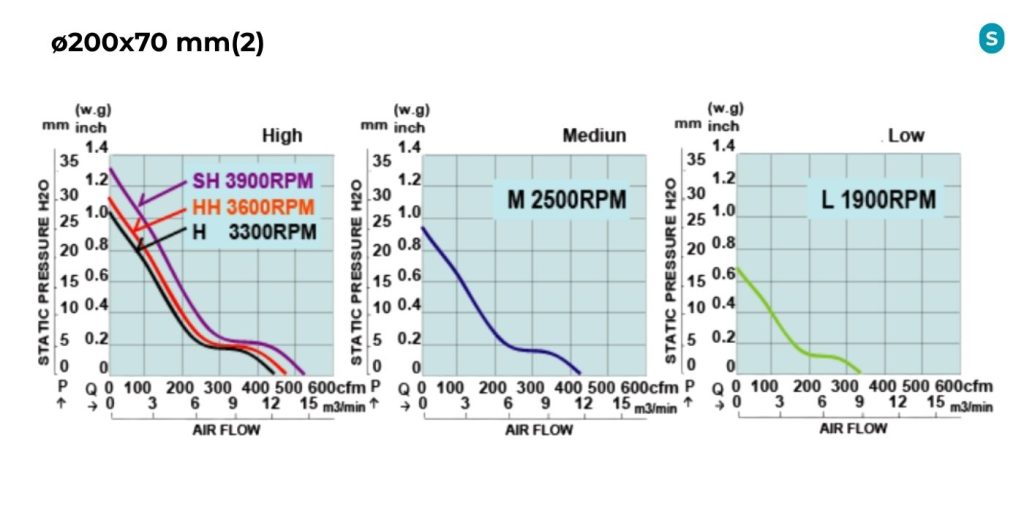

Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Power (W) |
Speed (RPM) |
Air Flow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYDM122070LBL | 12 | 9.0 – 14.0 | 0.45 | 5.5 | 1900 | 330 | 0.65 | 43 |
| HYDM122070MBL | 12 | 9.0 – 13.6 | 1.1 | 13.2 | 2500 | 430 | 0.95 | 55 |
| HYDM122070HBL | 12 | 9.0 – 13.6 | 1.9 | 23 | 2800 | 395 | 0.88 | 59 |
| HYDM122070XBL | 12 | 9.0 – 13.6 | 4.2 | 50.4 | 3100 | 420 | 0.98 | 62 |
| HYDM122070UBL | 12 | 9.0 – 13.6 | 5.4 | 64.8 | 3300 | 440 | 1.05 | 65 |
| HYDM242070LBL | 24 | 16.0 – 28.0 | 0.2 | 5 | 1900 | 330 | 0.65 | 42 |
| HYDM242070MBL | 24 | 16.0 – 28.0 | 0.52 | 13 | 2500 | 430 | 0.95 | 55 |
| HYDM242070HBL | 24 | 16.0 – 27.6 | 0.97 | 24 | 3300 | 440 | 1.05 | 64 |
| HYDM242070XBL | 24 | 16.0 – 27.6 | 2.1 | 50.4 | 3600 | 475 | 1.15 | 66 |
| HYDM242070UBL | 24 | 16.0 – 27.6 | 2.65 | 63.6 | 3900 | 510 | 1.25 | 68 |
| HYDM482070LBL | 48 | 30.0 – 58.0 | 0.12 | 5.8 | 1900 | 330 | 0.65 | 42 |
| HYDM482070MBL | 48 | 30.0 – 56.0 | 0.3 | 14.5 | 2500 | 430 | 0.95 | 55 |
| HYDM482070HBL | 48 | 30.0 – 53.0 | 0.48 | 23.5 | 3300 | 440 | 1.05 | 64 |
| HYDM482070XBL | 48 | 30.0 – 53.0 | 1.03 | 49.4 | 3600 | 475 | 1.15 | 66 |
| HYDM482070UBL | 48 | 30.0 – 53.0 | 1.3 | 62.4 | 3900 | 510 | 1.25 | 68 |
