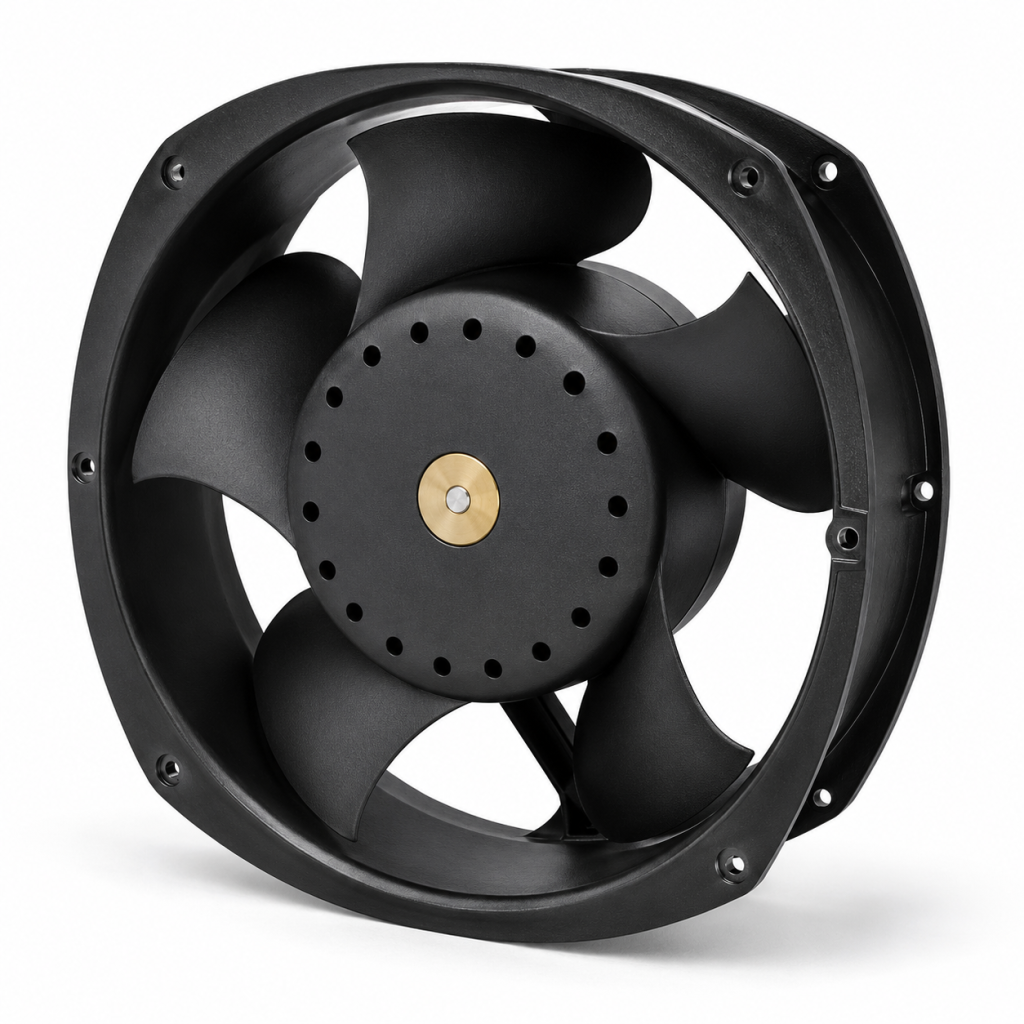

DC FANS
ø200x70 mm
PRODUCT SPECIFICATIONS
Frame: Aluminum
Impeller: Glass-Fiber-Reinforced Plastic, UL94V-0
Ambient Temperature Range: -15°C ~ +65°C
Bearing: Sleeve Bearing or Ball Bearing
Motor Structure: Brushless DC Motor
Termination: Lead Wire, 300 ± 10 mm
Weight: 1,800 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

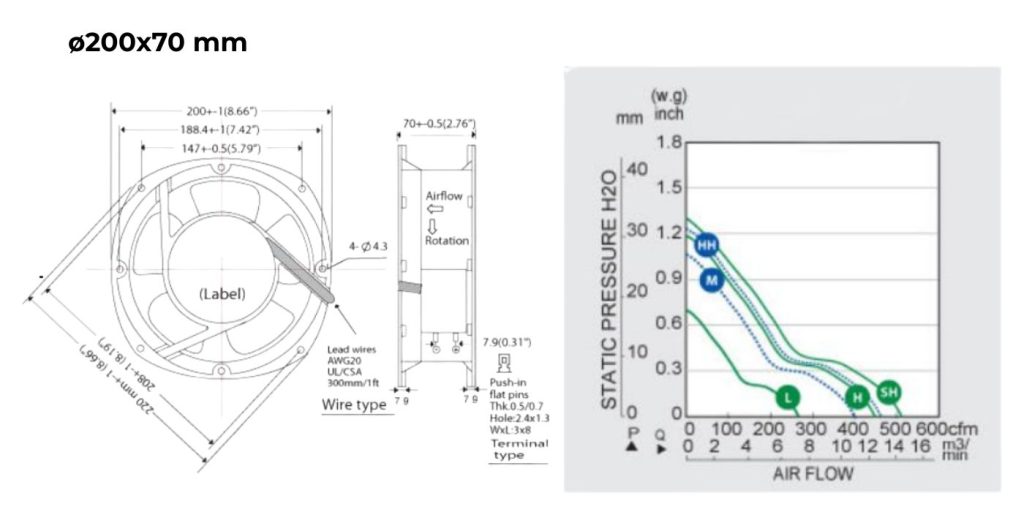

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYD122070LBL | 12 | 10.0 – 16.0 | 0.45 | 5.5 | 1800 | 280 | 0.70 | 39 |
| HYD122070MBL | 12 | 9.0 – 14.0 | 1.10 | 13.2 | 2400 | 380 | 1.05 | 53 |
| HYD122070HBL | 12 | 9.0 – 13.6 | 1.90 | 23 | 2600 | 425 | 1.15 | 57 |
| HYD122070XBL | 12 | 9.0 – 13.6 | 4.20 | 50.4 | 2900 | 455 | 1.25 | 60 |
| HYD122070UBL | 12 | 9.0 – 13.6 | 5.40 | 64.8 | 3050 | 495 | 1.26 | 65 |
| HYD242070LBL | 24 | 16.0 – 28.0 | 0.20 | 5 | 1800 | 280 | 0.70 | 39 |
| HYD242070MBL | 24 | 16.0 – 27.6 | 0.52 | 13 | 2500 | 400 | 1.10 | 53 |
| HYD242070HBL | 24 | 16.0 – 27.6 | 0.97 | 24 | 3000 | 460 | 1.26 | 58 |
| HYD242070XBL | 24 | 16.0 – 27.6 | 2.10 | 50.4 | 3200 | 470 | 1.27 | 63 |
| HYD242070UBL | 24 | 16.0 – 27.6 | 2.65 | 63.6 | 3300 | 505 | 1.30 | 69 |
| HYD482070LBL | 48 | 32.0 – 63.0 | 0.12 | 5.8 | 1800 | 280 | 0.70 | 39 |
| HYD482070MBL | 48 | 30.0 – 56.0 | 0.30 | 14.5 | 2500 | 400 | 1.10 | 53 |
| HYD482070HBL | 48 | 30.0 – 56.0 | 0.48 | 23.5 | 3000 | 460 | 1.26 | 58 |
| HYD482070XBL | 48 | 30.0 – 53.0 | 1.03 | 49.4 | 3200 | 470 | 1.27 | 63 |
| HYD482070UBL | 48 | 30.0 – 53.0 | 1.30 | 62.4 | 3300 | 505 | 1.30 | 69 |
