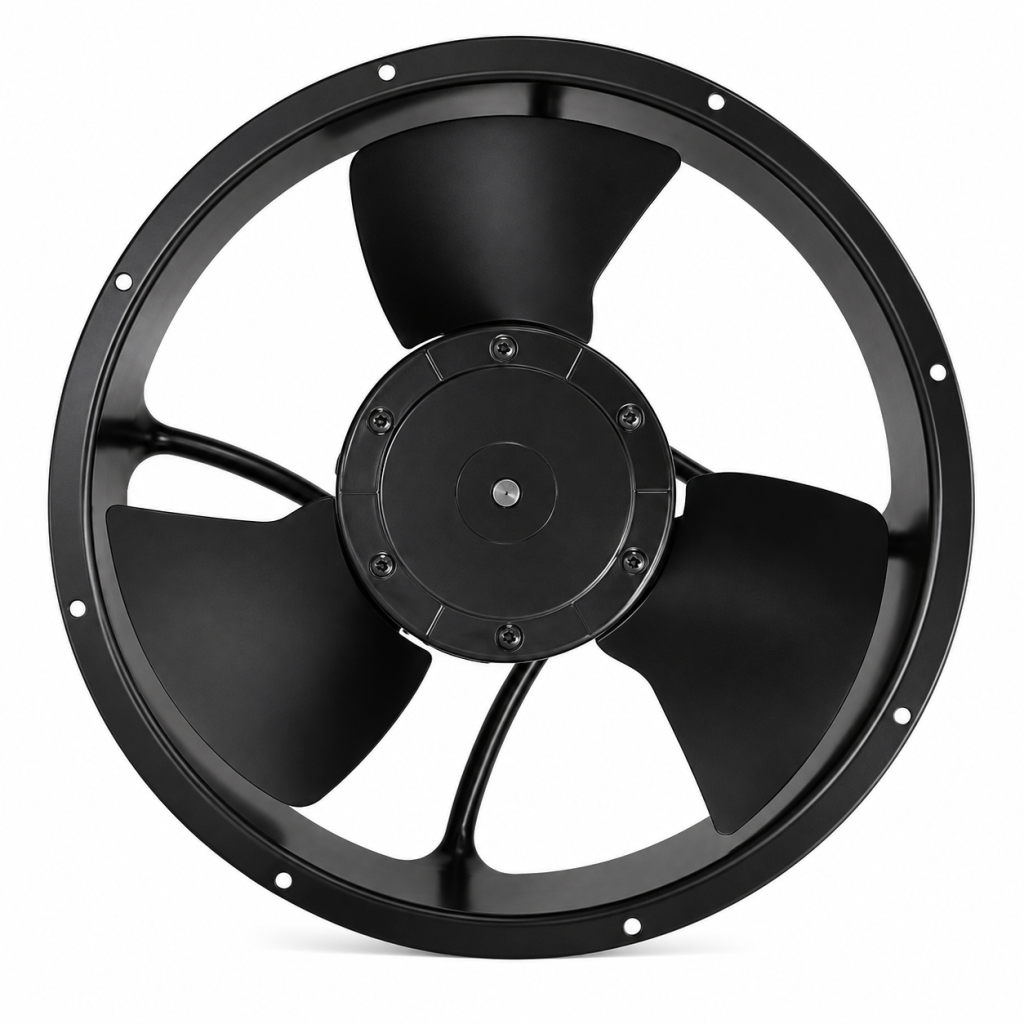

DC FANS

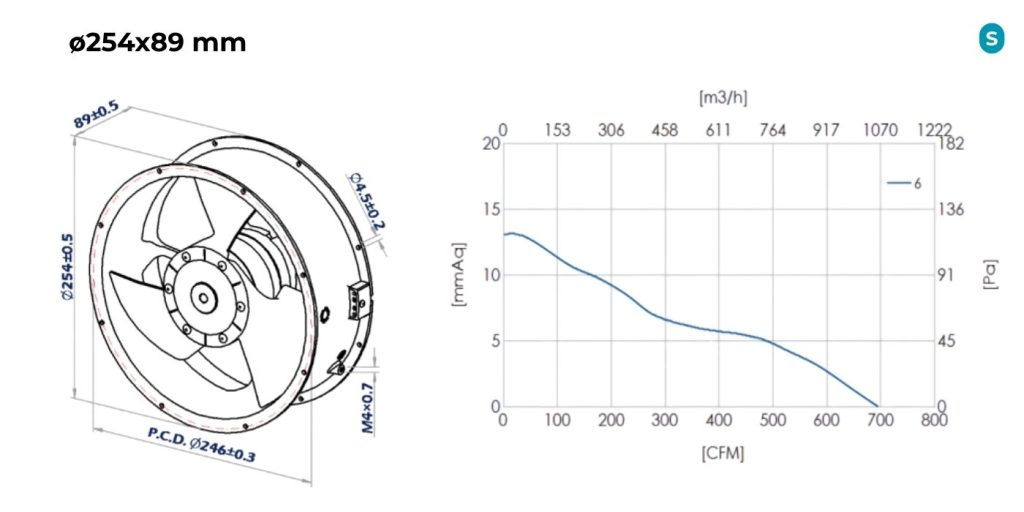

ø254x89 mm
PRODUCT SPECIFICATIONS
Frame: Aluminum
Impeller: Steel
Ambient Temperature Range: -10°C ~ +70°C
Motor Structure: Permanent Magnet Brushless DC Motor
Protection Grade: IP54
Termination: Lead wire
Weight: 2,550 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling
TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Current (A) |
Speed (RPM) |
Air Flow (CFM) |
Pressure (mmAq) |
Noise (dB) |
|---|---|---|---|---|---|---|
| HYDM72589HB | 24 | 2.02 | 2800 | 784 | 14.6 | 60 |
| HYDM82589HB | 48 | 1.36 | 2500 | 784 | 14.6 | 60 |
