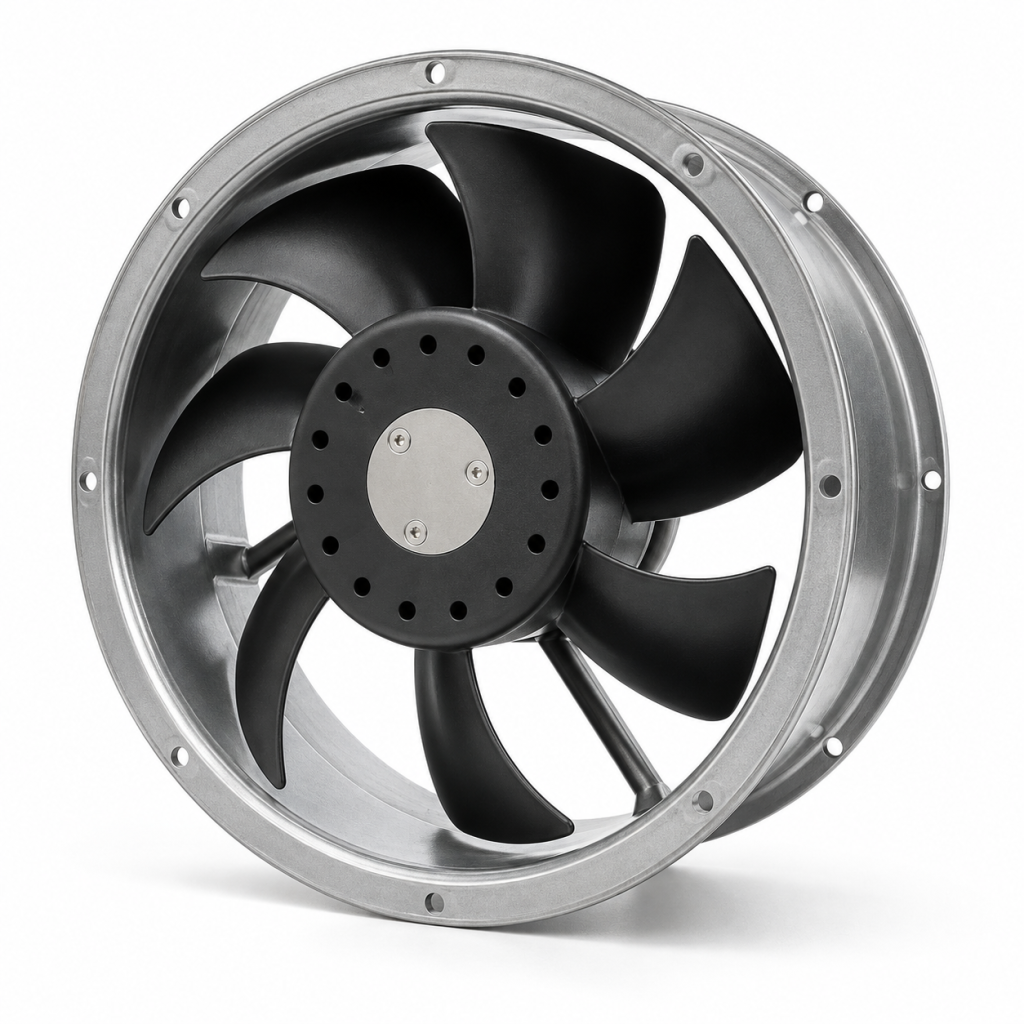

DC FANS

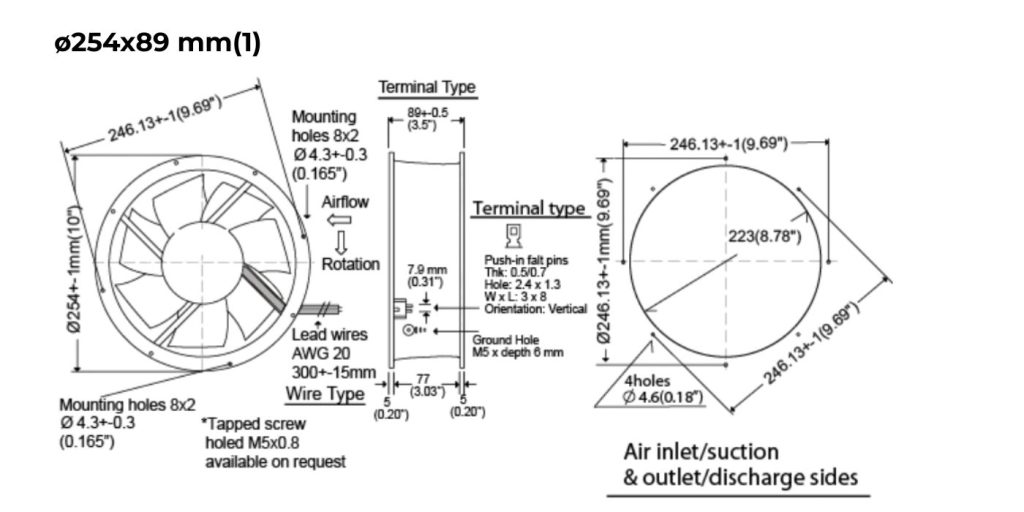

ø254x89 mm
PRODUCT SPECIFICATIONS
Frame: Aluminum
Impeller: Glass-Fiber-Reinforced Plastic, UL94V-0
Ambient Temperature Range: -15°C ~ +65°C
Bearing: Two Ball Bearing
Motor Structure: Brushless DC Motor
Termination: Lead Wire, 300 ± 10 mm
Weight: 2,200 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling
TECHNICAL DATA

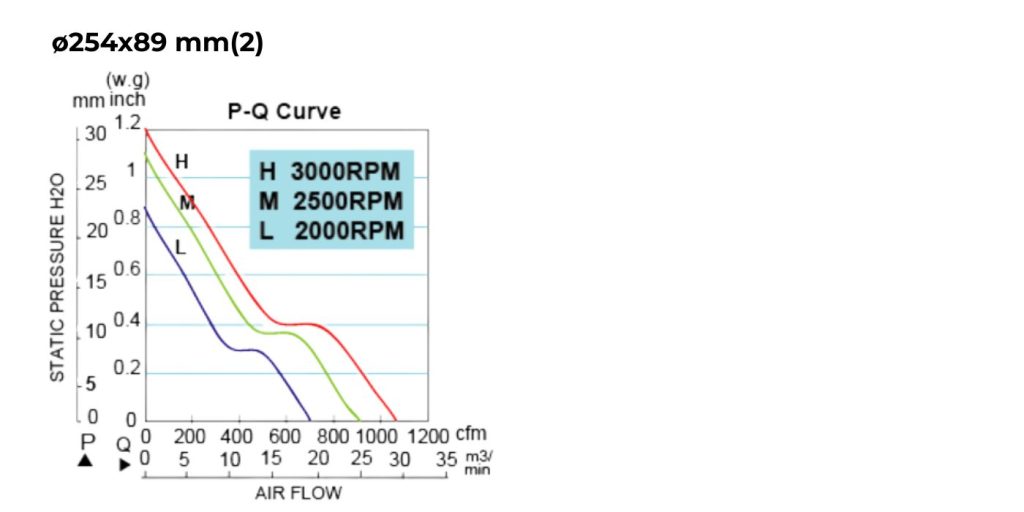

Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYD122589LBL | 12 | 10.0 – 13.8 | 6 | 72 | 1900 | 690 | 0.73 | 56 |
| HYD122589MBL | 12 | 10.0 – 13.8 | 7.8 | 93 | 2400 | 830 | 0.98 | 63 |
| HYD122589HBL | 12 | 10.0 – 13.2 | 10.8 | 130 | 2600 | 910 | 1.1 | 68 |
| HYD242589LBL | 24 | 18.0 – 27.6 | 3 | 72 | 2000 | 700 | 0.83 | 58 |
| HYD242589MBL | 24 | 18.0 – 26.0 | 3.9 | 93 | 2500 | 900 | 1.1 | 65 |
| HYD242589HBL | 24 | 18.0 – 26.0 | 5.2 | 125 | 3000 | 1050 | 1.2 | 72 |
| HYD482589LBL | 48 | 24.0 – 53.0 | 1.5 | 72 | 2000 | 700 | 0.83 | 58 |
| HYD482589MBL | 48 | 24.0 – 53.0 | 1.9 | 93 | 2500 | 900 | 1.1 | 65 |
| HYD482589HBL | 48 | 24.0 – 53.0 | 2.6 | 125 | 3000 | 1050 | 1.2 | 72 |
