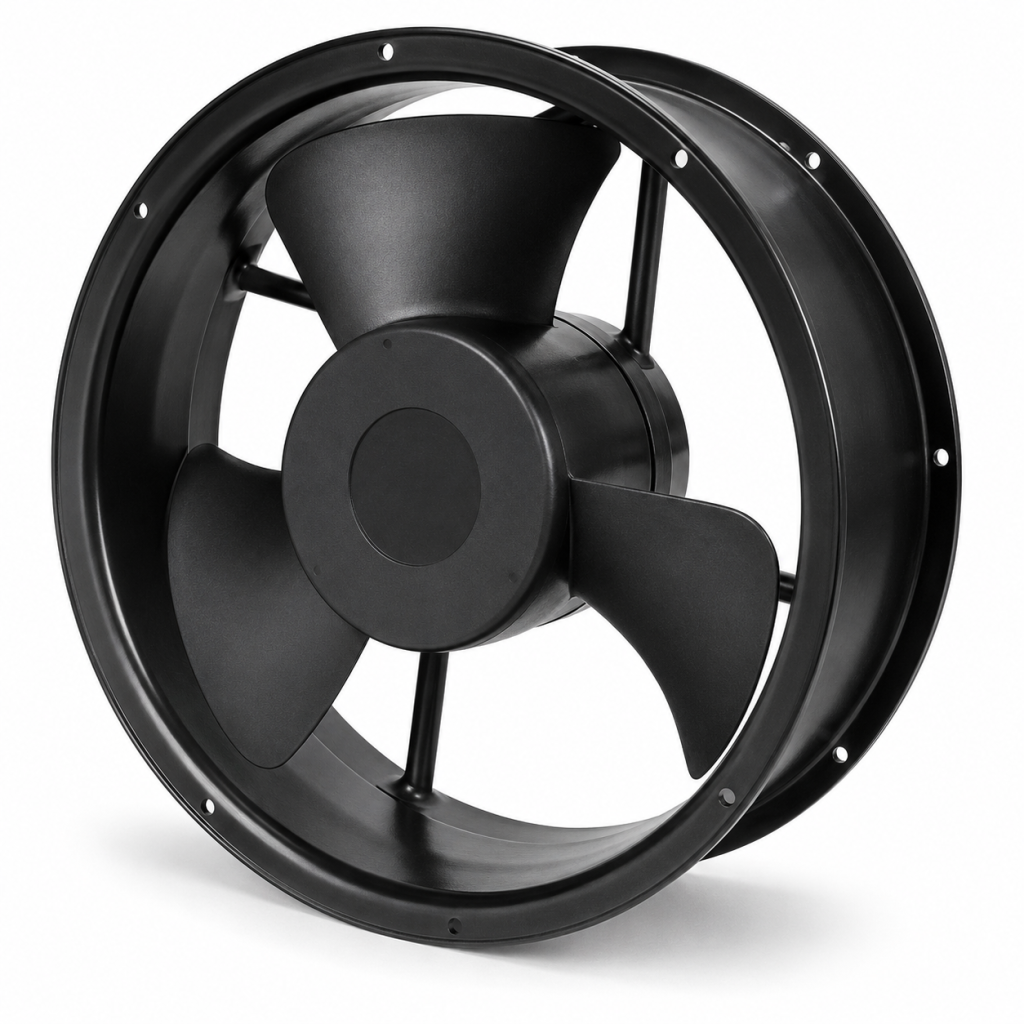

DC FANS

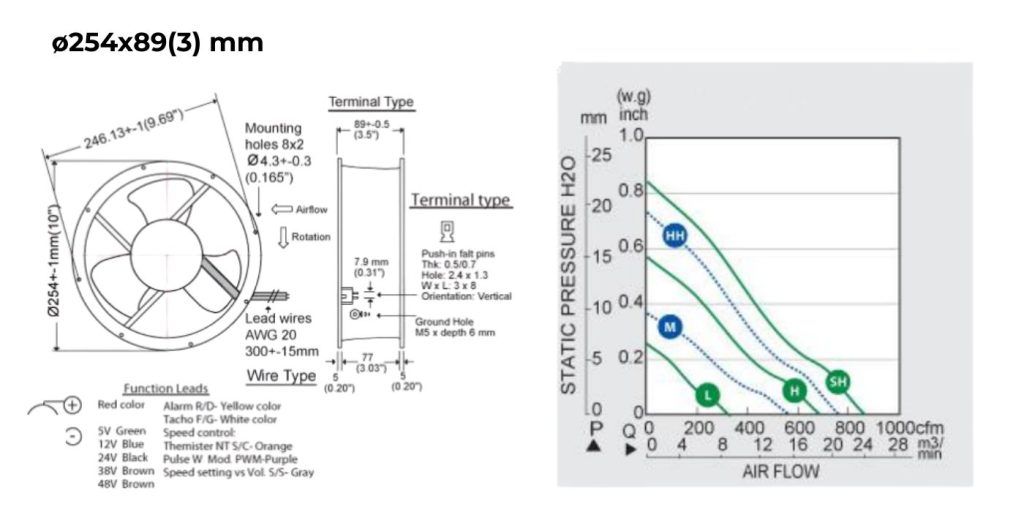

ø254x89(3) mm
PRODUCT SPECIFICATIONS
Frame: Aluminum
Impeller: Glass-Fiber-Reinforced Plastic, UL94V-0
Ambient Temperature Range: -15°C ~ +65°C
Bearing: Two Ball Bearing
Motor Structure: Brushless DC Motor
Termination: Lead Wire, 300 ± 10 mm
Weight: 1,830 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling
TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYD125289HBL | 12 | 9.0 – 13.0 | 1.9 | 23 | 2000 | 690 | 0.58 | 47 |
| HYD125289XBL | 12 | 9.0 – 13.0 | 4.2 | 50.4 | 2200 | 750 | 0.69 | 56 |
| HYD125289UBL | 12 | 9.0 – 13.0 | 5.4 | 64.8 | 2400 | 830 | 0.78 | 60 |
| HYD245289HBL | 24 | 16.0 – 27.0 | 0.97 | 24 | 2000 | 690 | 0.58 | 47 |
| HYD245289XBL | 24 | 16.0 – 27.0 | 2.1 | 50.4 | 2300 | 750 | 0.71 | 58 |
| HYD245289UBL | 24 | 16.0 – 27.0 | 2.65 | 63.6 | 2500 | 850 | 0.83 | 62 |
| HYD485289HBL | 48 | 24.0 – 53.0 | 1.03 | 49.4 | 2300 | 750 | 0.71 | 58 |
| HYD485289XBL | 48 | 24.0 – 53.0 | 1.3 | 62.4 | 2500 | 850 | 0.83 | 62 |
