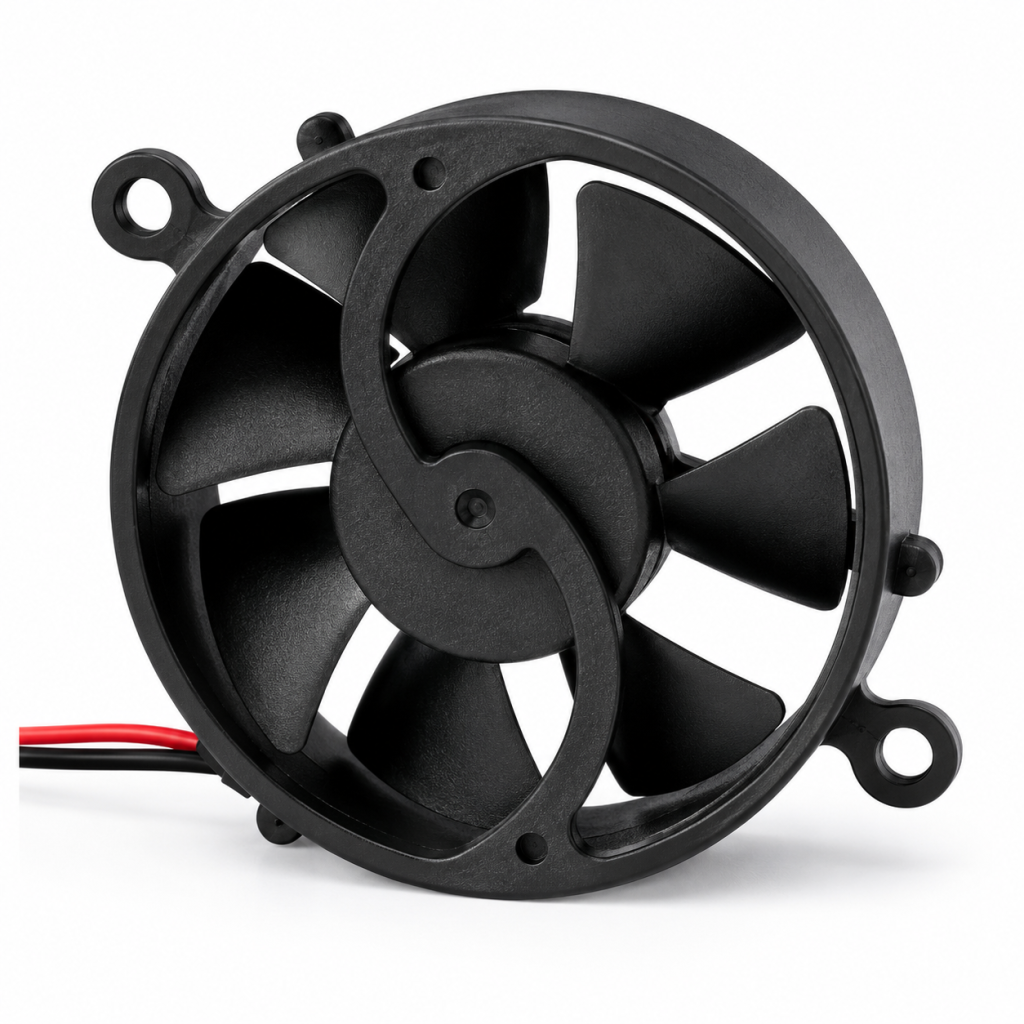

DC FANS
ø30x08 mm
PRODUCT SPECIFICATIONS
Frame: Plastic
Impeller: Plastic Material UL94V-0
Ambient Temperature Range: -10℃ ~ +60℃
Storage Temperature Range: -20℃ ~ +70℃
Motor Structure: Single-Phase Brushless DC Motor
Weight: 3.82 g
Typical Applications
Industrial Automation
Communication Equipment
Power Supplies
Electronic Cooling

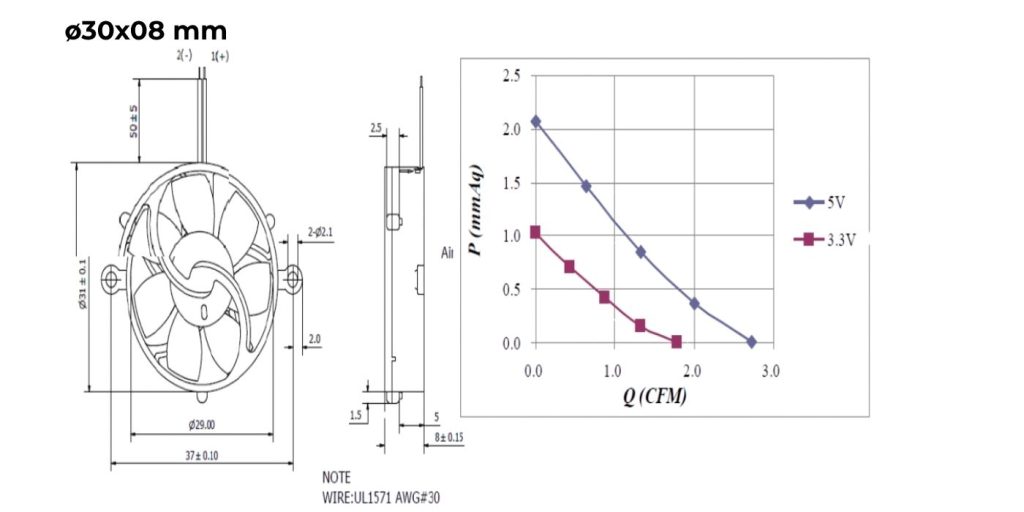

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage (VDC) |
Current (A) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYD033008 | 3.3 | 2.8 – 3.6 | 0.037 | 4200 | 1.79 | 1.02 | 15.9 |
| HYD053008 | 5 | 4.5 – 5.5 | 0.053 | 6200 | 2.72 | 2.07 | 24.3 |
