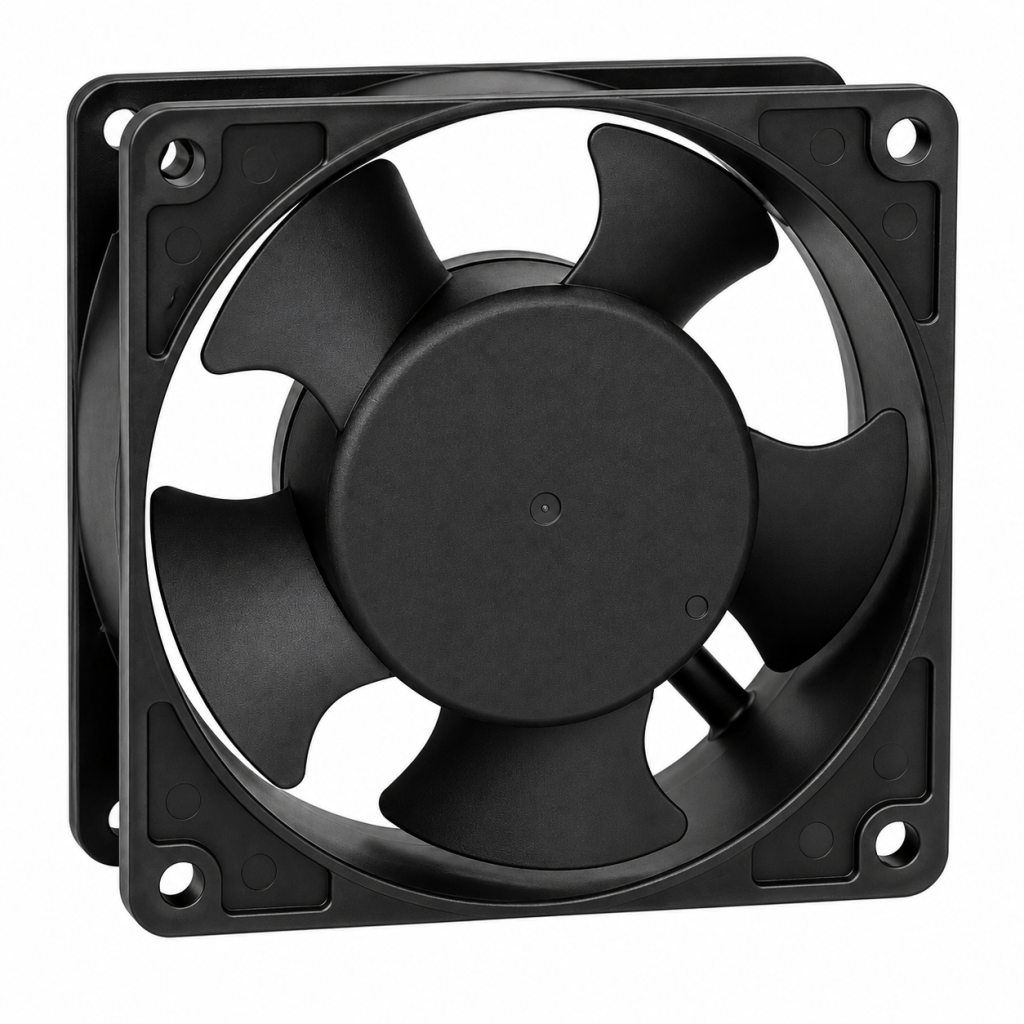

EC FANS
120×120×38(5)mm
(4.69x4.69x1.5 in)
PRODUCT SPECIFICATIONS
Frame: Die cast aluminum
Impeller: Thermoplastic PBT UL94V-0
Ambient Temperature Range: -20℃ ~ +70℃
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball or Sleeve
Termination: Terminals or Lead wire 290~340mm
Weight: 252 g
Typical Applications
Industrial Automation
Control Cabinets
Power Supplies
Telecom

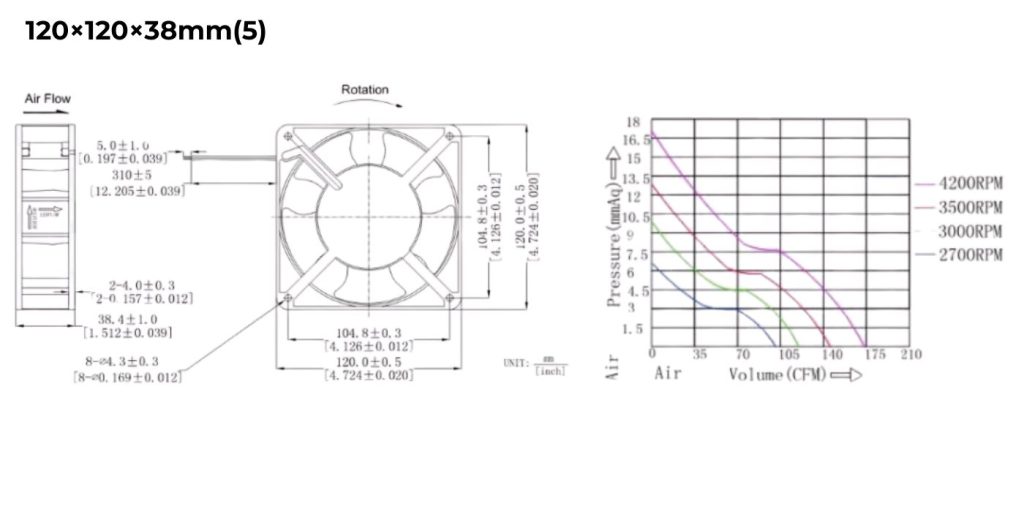

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Airflow (m³/min) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYE11238HB | 80–130 | 45–65 | 8.2 | 3500 | 142 | 4.02 | 0.51 | 52 |
| HYE11238XB | 80–130 | 45–65 | 11.7 | 4200 | 170 | 4.81 | 0.66 | 55 |
| HYE21238HB | 100–240 | 45–65 | 8.2 | 3500 | 142 | 4.02 | 0.51 | 52 |
| HYE21238XB | 100–240 | 45–65 | 11.7 | 4200 | 170 | 4.81 | 0.66 | 55 |
