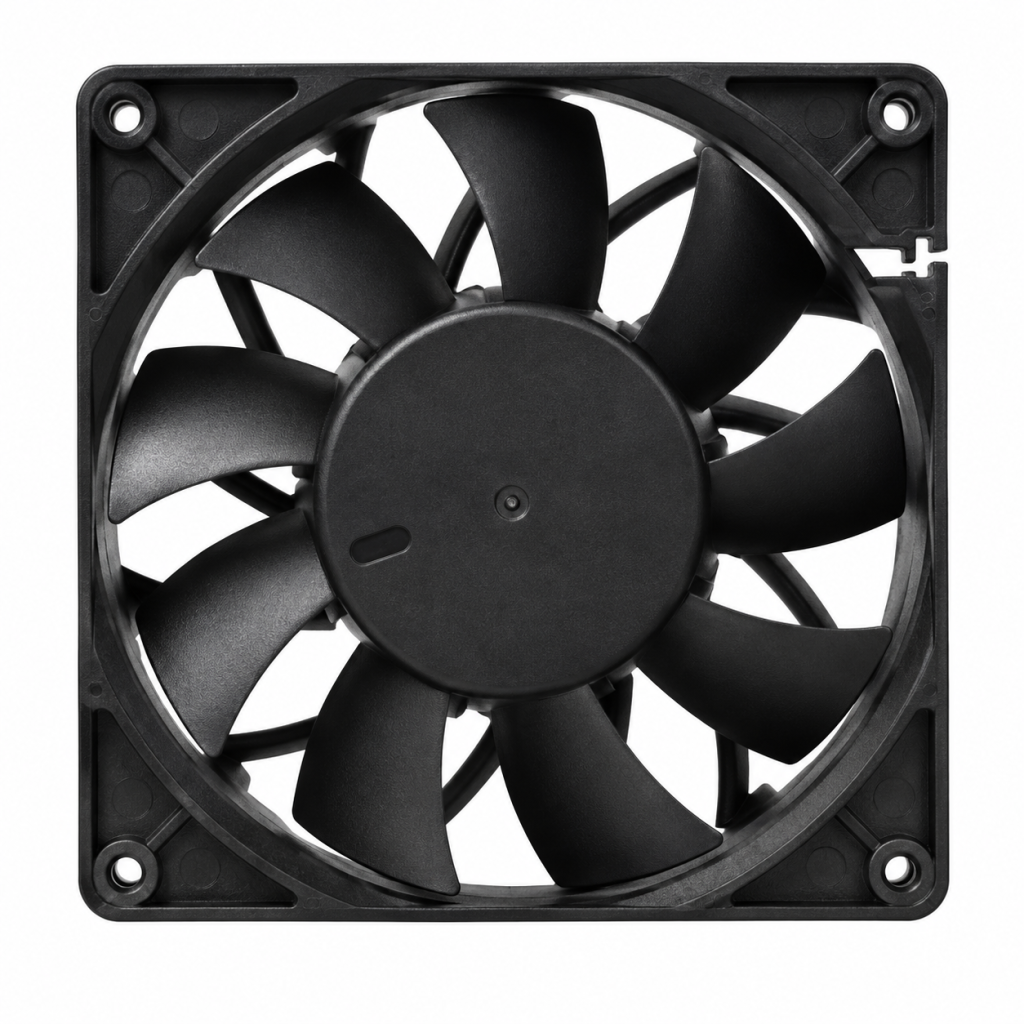

EC FANS

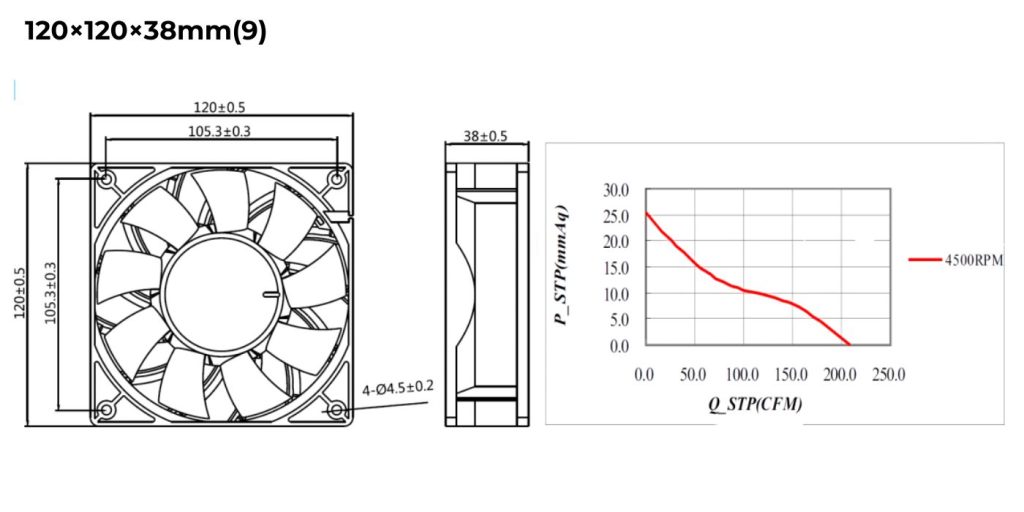

120×120×38(9)mm
(4.69x4.69x1.5 in)
PRODUCT SPECIFICATIONS
Frame: Thermoplastic PBT UL 94V-0
Impeller: Thermoplastic PBT 94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: Ball or Sleeve
Termination: Terminals or Lead wire
Weight: 294 g
Typical Applications
Industrial Automation
Control Cabinets
Power Supplies
Telecom
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Operating Range (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Airflow (m³/min) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|---|
| HYE11238SB | 110 | 80–135 | 50/60 | 30 | 4500 | 209 | 5.94 | 1.0 | 64 |
| HYE21238SB | 220 | 180–265 | 50/60 | 30 | 4500 | 209 | 5.94 | 1.0 | 64 |
