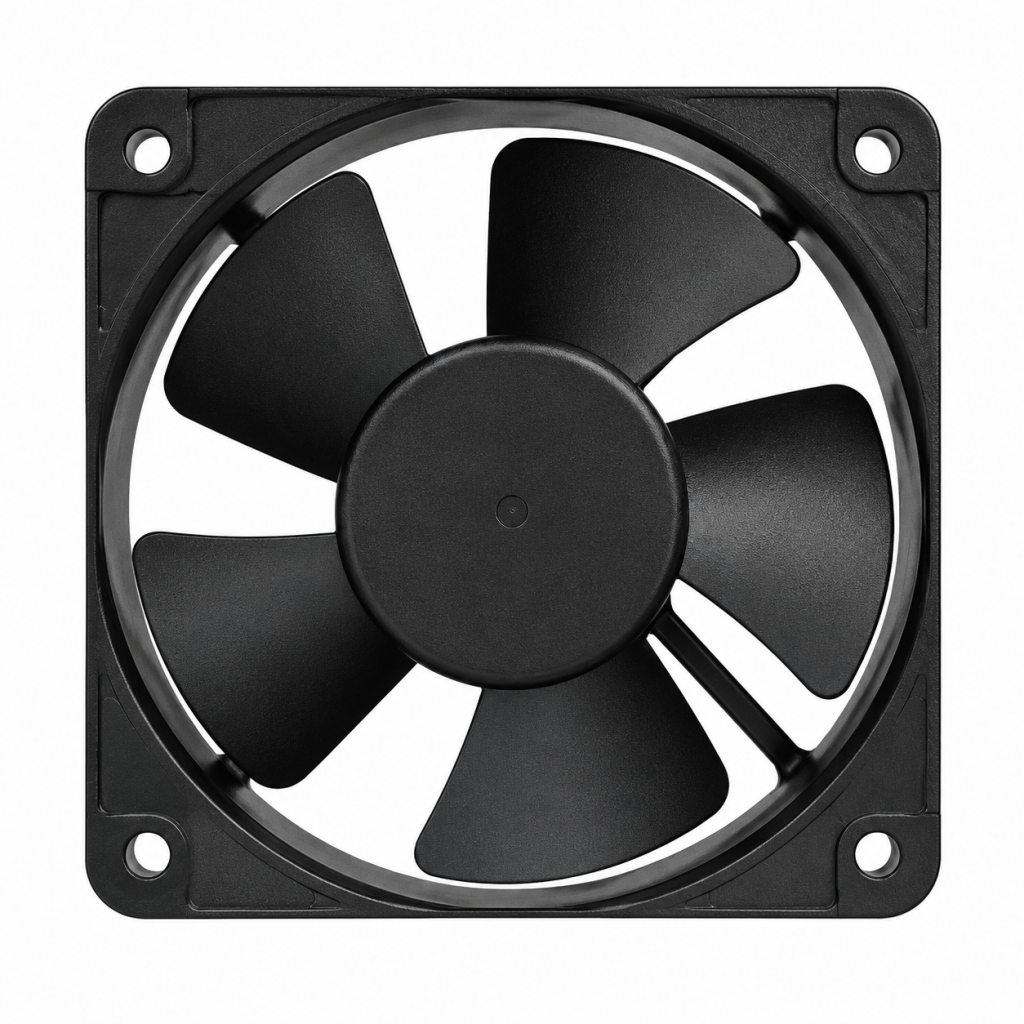

EC FANS

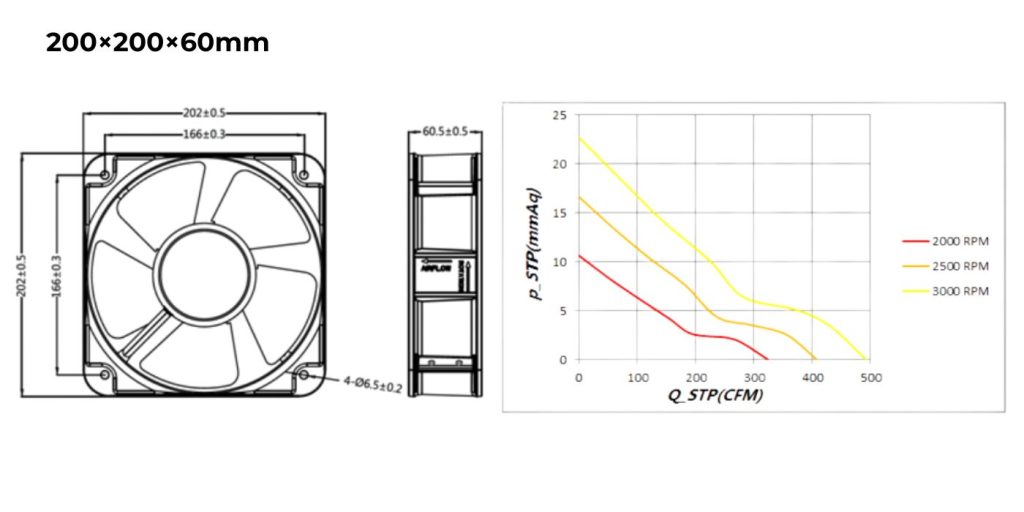

200×200×60mm
PRODUCT SPECIFICATIONS
Frame: Aluminum
Impeller: Thermoplastic PBT 94V-0
Ambient Temperature Range: -10℃ ~ +70℃
Bearing: Ball
Termination: Terminals or Lead wire
Weight: 2,800 g
Typical Applications
Industrial Automation
Control Cabinets
Power Supplies
Telecom
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Operating Range (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Airflow (m³/min) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|---|
| HYE12060LB | 110 | 80–135 | 50/60 | 40 | 2000 | 324 | 9.17 | 0.42 | 58 |
| HYE12060MB | 110 | 80–135 | 50/60 | 50 | 2500 | 407 | 11.55 | 0.65 | 62 |
| HYE12060HB | 110 | 80–135 | 50/60 | 70 | 3000 | 492 | 13.94 | 0.89 | 68 |
| HYE22060LB | 220 | 180–265 | 50/60 | 40 | 2000 | 324 | 9.17 | 0.42 | 58 |
| HYE22060MB | 220 | 180–265 | 50/60 | 50 | 2500 | 407 | 11.55 | 0.65 | 62 |
| HYE22060HB | 220 | 180–265 | 50/60 | 70 | 3000 | 492 | 13.94 | 0.89 | 68 |
