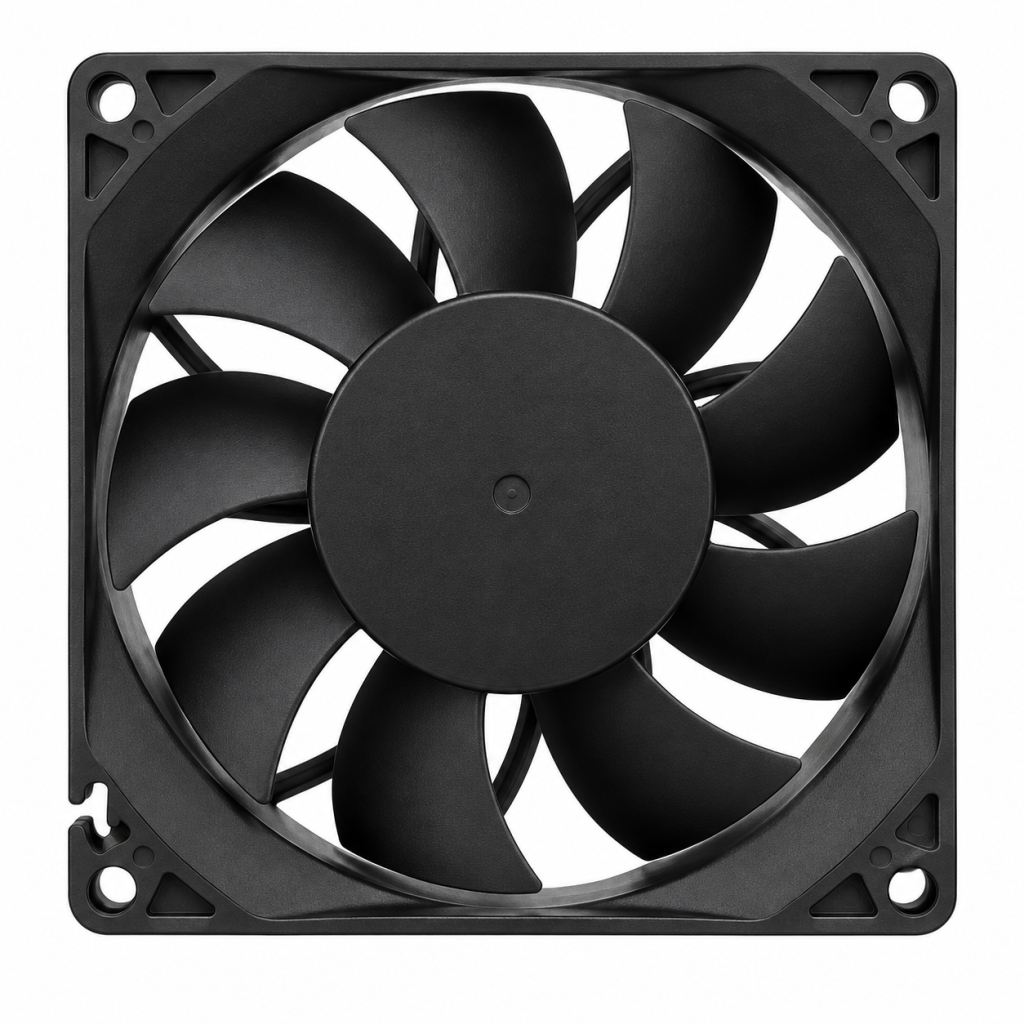

EC FANS
80×80×25 mm
PRODUCT SPECIFICATIONS
Frame: Die cast aluminum
Impeller: Thermoplastic PBT UL94V-0
Ambient Temperature Range: -20℃ ~ +70℃
Bearing: Ball or Sleeve
Termination: Terminals or Lead wire 290~340mm
Weight: 78 g
Typical Applications
Industrial Automation
Control Cabinets
Power Supplies
Telecom

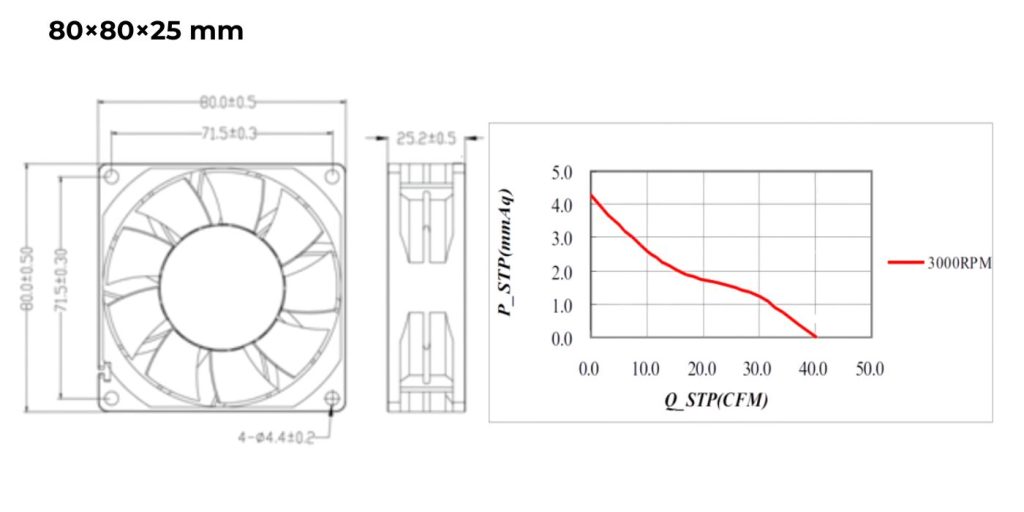

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Operating Range (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Airflow (m³/min) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|---|
| HYE18025HB | 110 | 80–135 | 50/60 | 4 | 3000 | 40 | 1.14 | 0.18 | 38 |
| HYE28025HB | 220 | 180–265 | 50/60 | 4 | 3000 | 40 | 1.14 | 0.18 | 38 |
