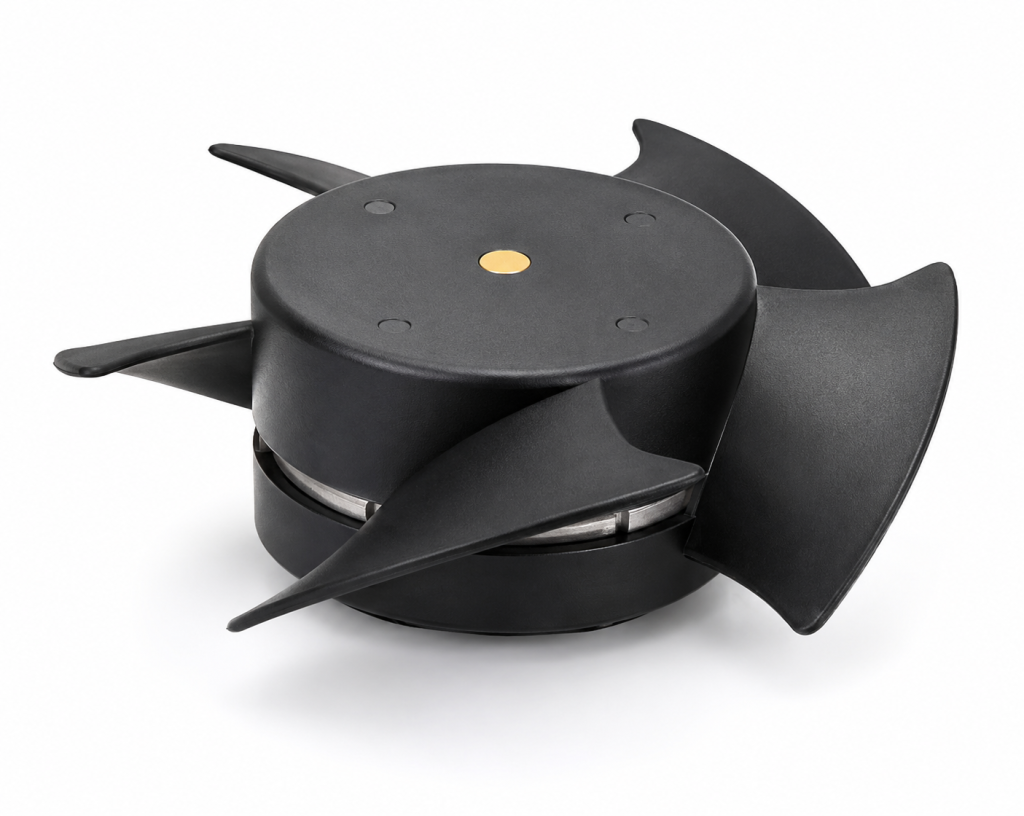

AC SKELETON FANS
ø120x40 mm
( ø4.72x1.57 in )
PRODUCT SPECIFICATIONS
Impeller: Glass-Fiber-Reinforced Plastic (UL94 V-0)
Ambient Temperature Range: -20°C ~ +70°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Shaded-Pole Induction Motor
Motor Protection: Impedance Protection
Termination: Lead Wire
Weight: 410 g
Typical Applications
Compact Cooling
Electronic Equipment
Power Supplies
Communication Equipment

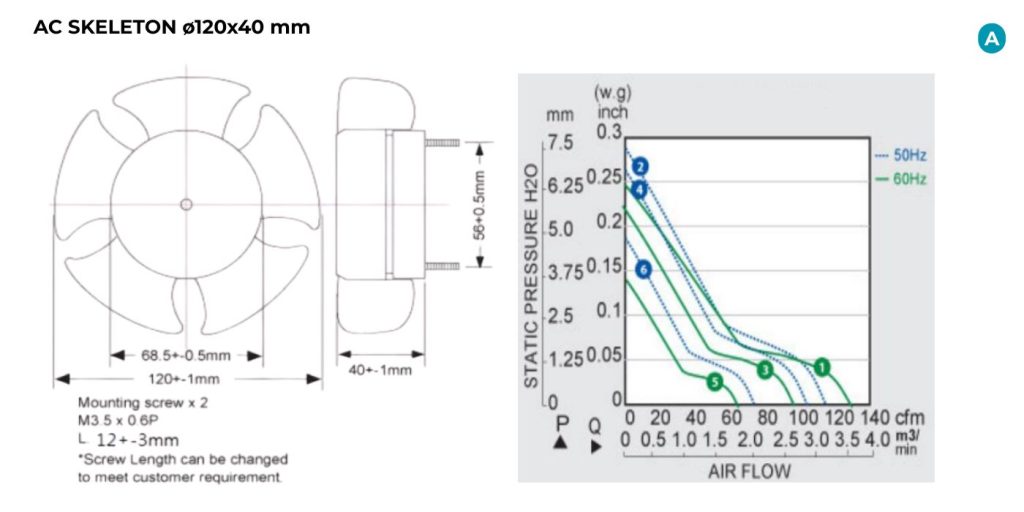

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYS11240HB | 115 | 50/60 | 16/14 | 2400/2300 | 115/130 | 7.37/6.35 | 46 |
| HYS21240HB | 230 | 50/60 | 16/14 | 2400/2300 | 115/130 | 7.37/6.35 | 46 |
