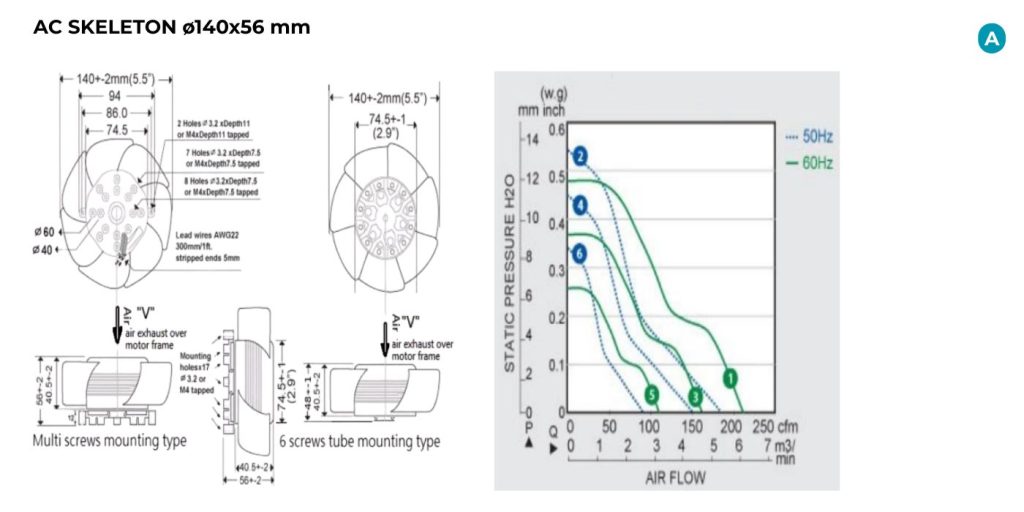

AC SKELETON FANS
ø140x56 mm
( ø5.51x2.2 in )
PRODUCT SPECIFICATIONS
Impeller: Steel Blades
Ambient Temperature Range: -30°C ~ +80°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Single-Phase Shaded-Pole Induction Motor
Motor Protection: Thermal Protection
Termination: Lead Wire
Weight: 850 g
Typical Applications
Compact Cooling
Electronic Equipment
Power Supplies
Communication Equipment
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYMS11456HB | 115 | 50/60 | 47/42 | 2750/3200 | 183/220 | 12.45/10.67 | 60 |
| HYMS21456HB | 230 | 50/60 | 47/42 | 2750/3200 | 183/220 | 12.45/10.67 | 60 |
