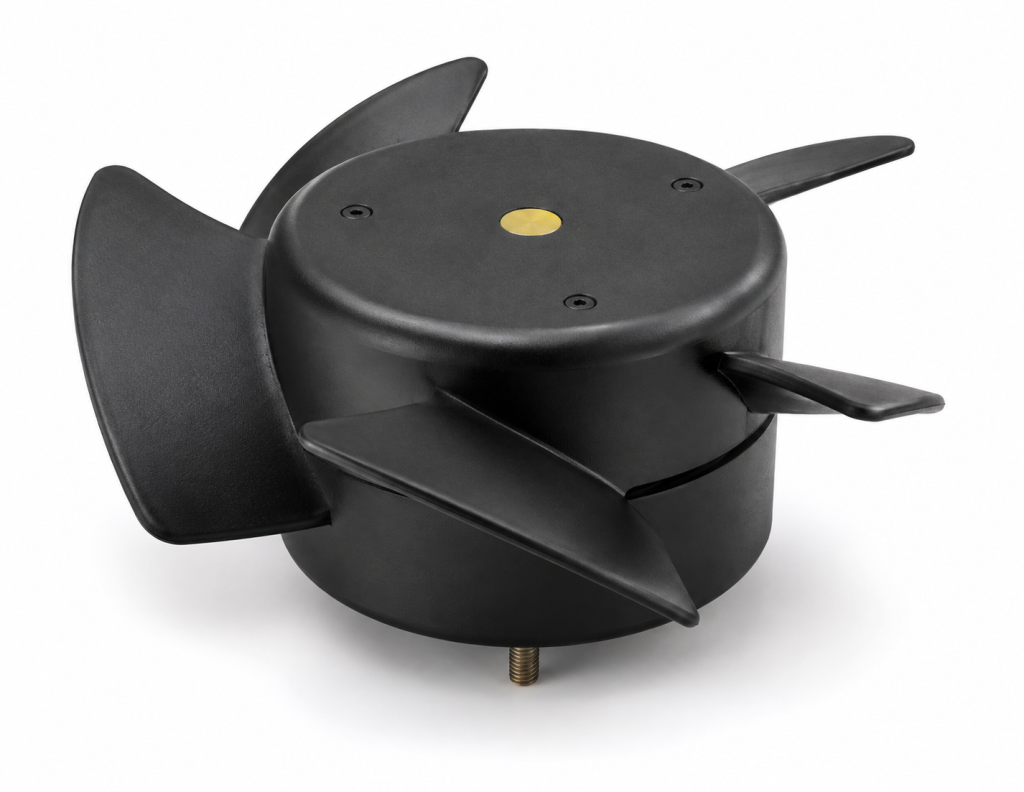

AC SKELETON FANS
ø143x50 mm
( ø5.62x1.96 in )
PRODUCT SPECIFICATIONS
Impeller: Glass-Fiber-Reinforced Plastic (UL94 V-0)
Ambient Temperature Range: -30°C ~ +70°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Shaded-Pole Induction Motor
Motor Protection: Impedance Protection
Termination: Lead Wire
Weight: 910 g
Typical Applications
Compact Cooling
Electronic Equipment
Power Supplies
Communication Equipment

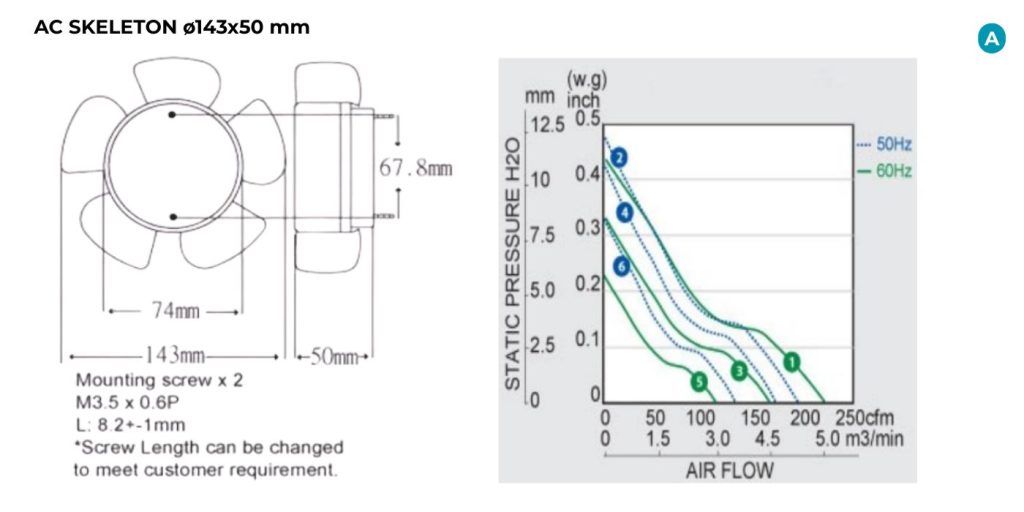

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYS11450HB | 115 | 50/60 | 30/26 | 2500/2800 | 183/210 | 11.94/10.92 | 47 |
| HYS21450HB | 230 | 50/60 | 30/26 | 2500/2800 | 183/210 | 11.94/10.92 | 47 |
