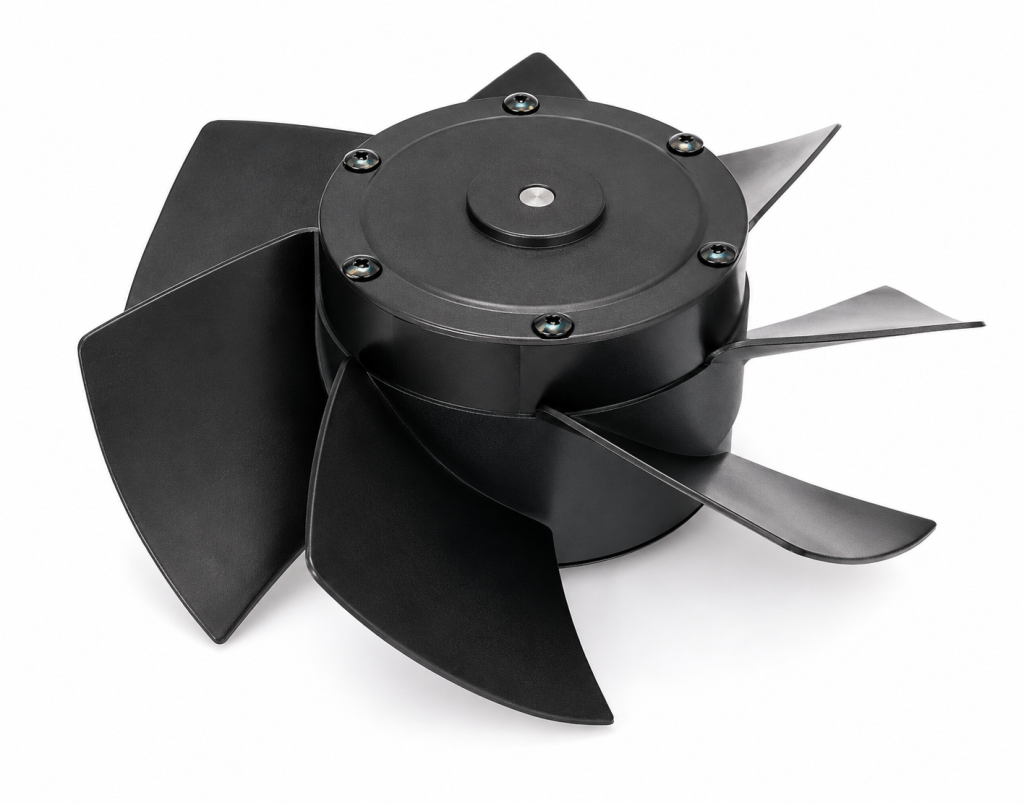

AC SKELETON FANS
ø145x38 mm
( ø5.71x1.50 in )
PRODUCT SPECIFICATIONS
Impeller: Steel Blades
Ambient Temperature Range: -20°C ~ +70°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Capacitor Induction Motor
Motor Protection: Thermal Protection
Termination: Lead Wire
Weight: 610 g
Typical Applications
Compact Cooling
Electronic Equipment
Power Supplies
Communication Equipment

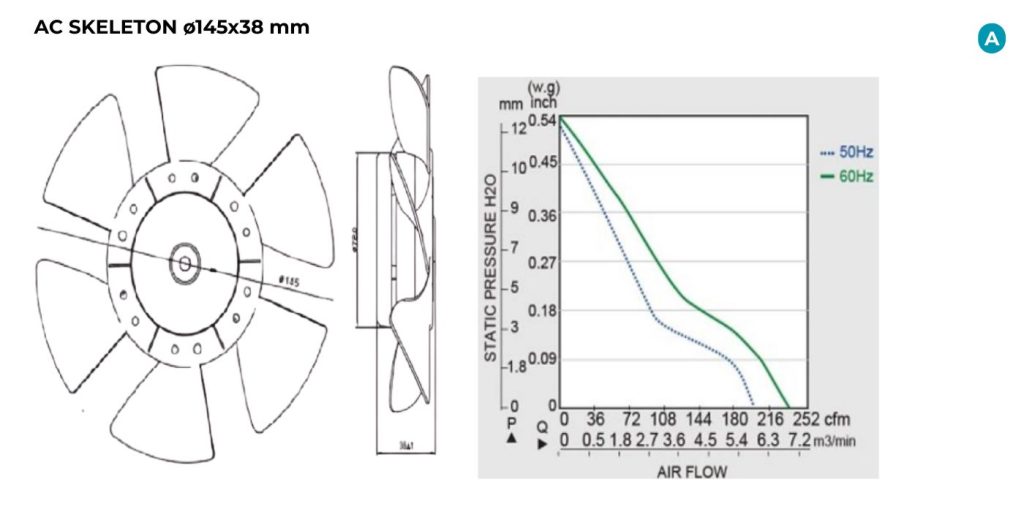

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYMS11438HB | 115 | 50/60 | 40/32 | 2700/3100 | 210/240 | 13.46/14.48 | 53/59 |
| HYMS21438HB | 230 | 50/60 | 40/32 | 2700/3100 | 210/240 | 13.46/14.48 | 53/59 |
