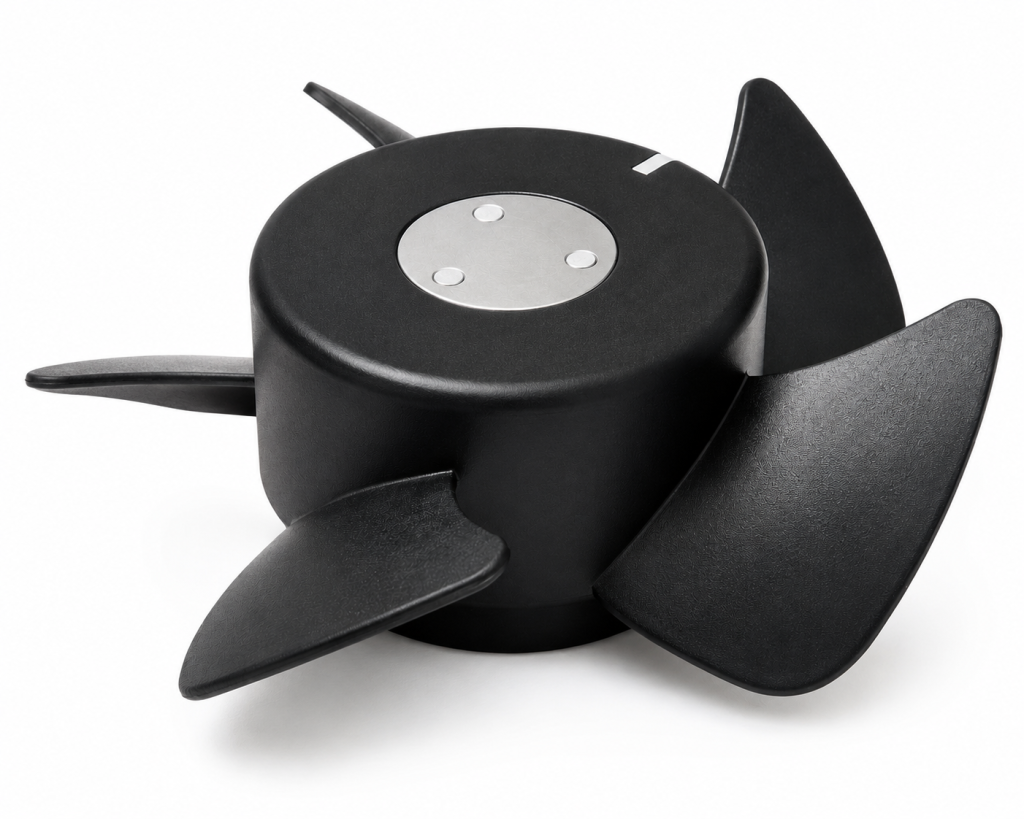

AC SKELETON FANS
ø193x68 mm
( ø7.59x2.67 in )
PRODUCT SPECIFICATIONS
Impeller: Glass-Fiber-Reinforced Plastic (UL94 V-0)
Ambient Temperature Range: -20°C ~ +70°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Capacitor Induction Motor
Motor Protection: Thermal Protection
Termination: Lead Wire
Weight: 1,580 g
Typical Applications
Compact Cooling
Electronic Equipment
Power Supplies
Communication Equipment

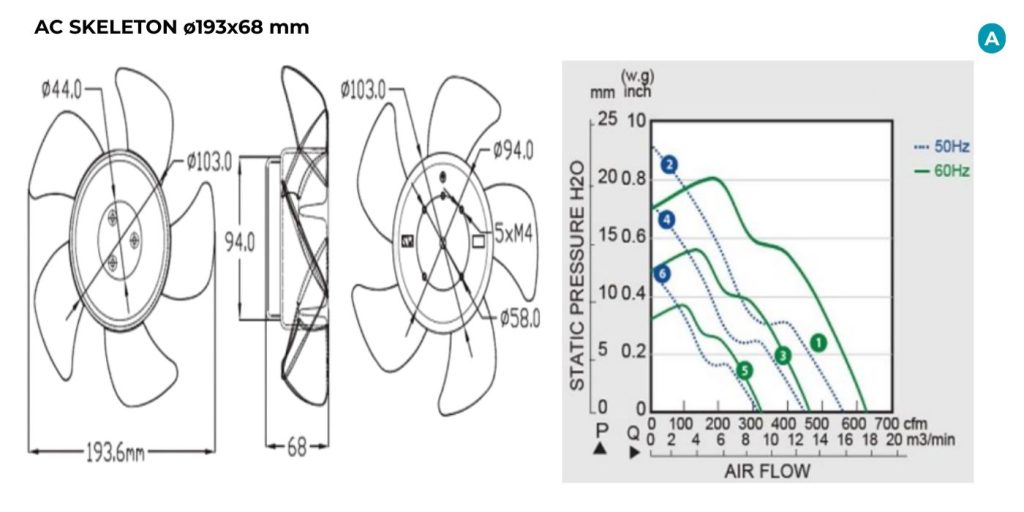

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYS11968HB | 115 | 50/60 | 60/75 | 2800/3150 | 587/660 | 23.11/17.78 | 69 |
| HYS21968HB | 230 | 50/60 | 60/75 | 2800/3150 | 587/660 | 23.11/17.78 | 69 |
