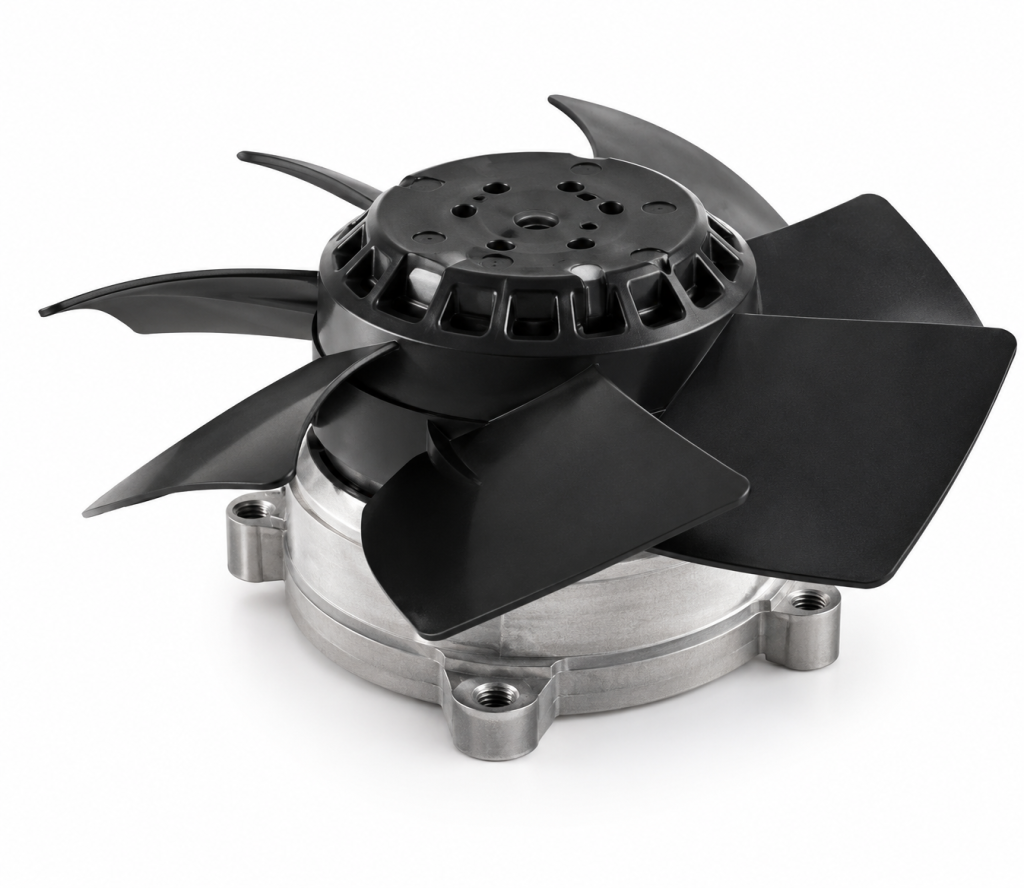

AC SKELETON FANS
ø197x79 mm
( ø7.75x3.11 in )
PRODUCT SPECIFICATIONS
Impeller: Steel Blades
Ambient Temperature Range: -30°C ~ +80°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Capacitor Induction Motor
Motor Protection: Thermal Protection
Termination: Lead Wire
Weight: 1,800 g
Typical Applications
Compact Cooling
Electronic Equipment
Power Supplies
Communication Equipment

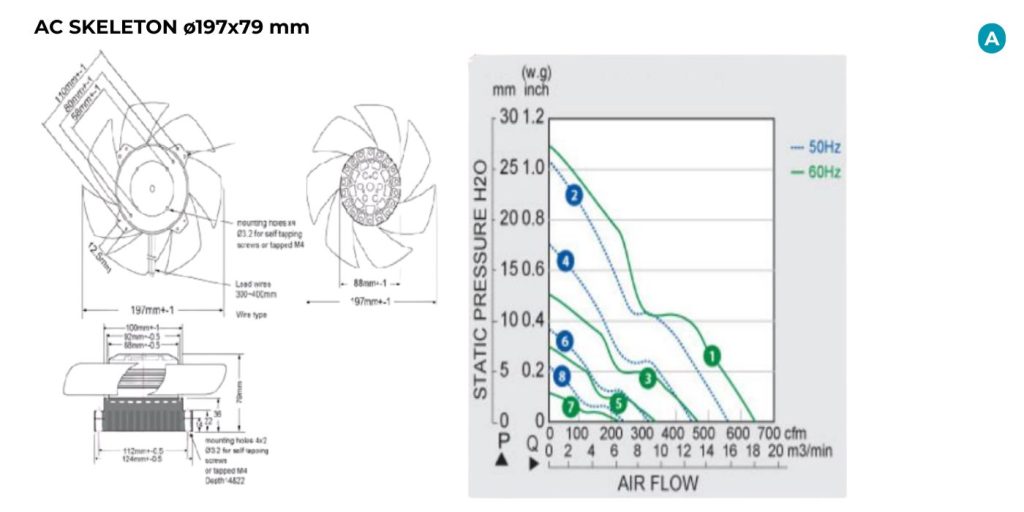

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYMS11979HB | 115 | 50/60 | 60/80 | 2800/3000 | 520/590 | 23.11/21.84 | 68 |
| HYMS21979HB | 230 | 50/60 | 60/80 | 2800/3000 | 520/590 | 23.11/21.84 | 68 |
