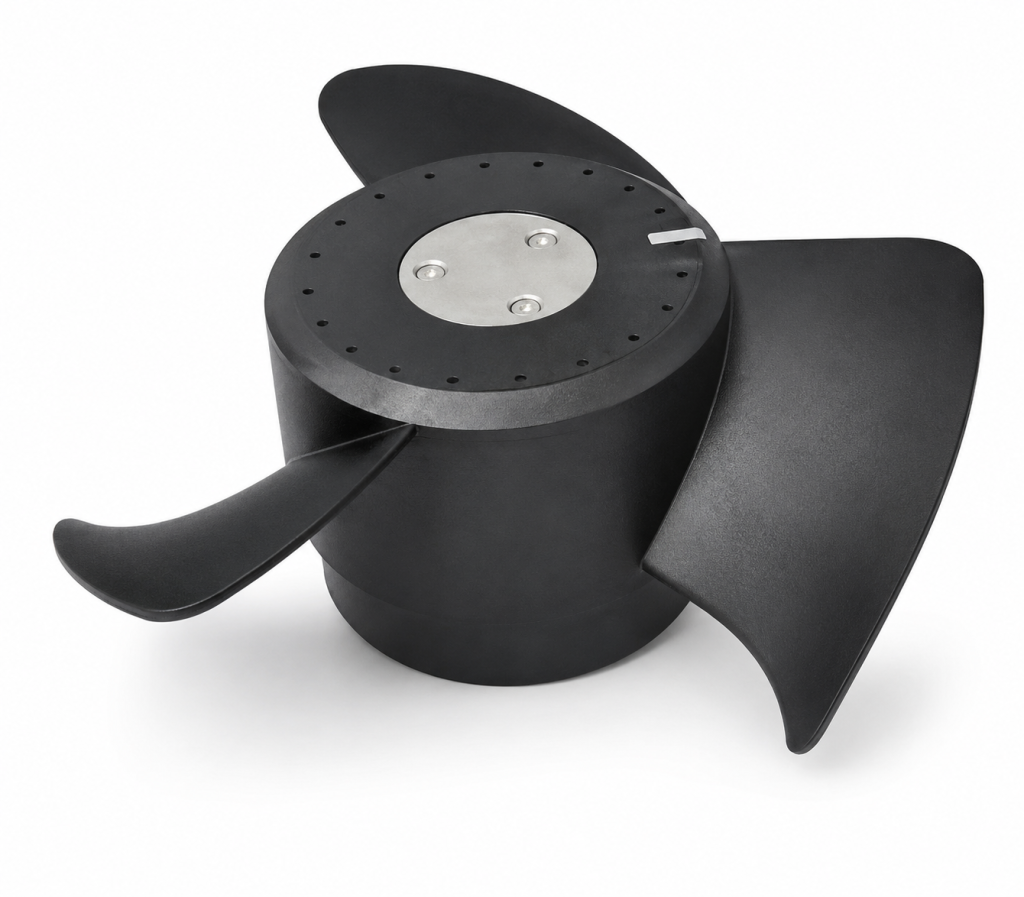

AC SKELETON FANS
ø214x75 mm
( ø8.42x2.95 in )
PRODUCT SPECIFICATIONS
Impeller: Glass-Fiber-Reinforced Plastic (UL94 V-0)
Ambient Temperature Range: -20°C ~ +65°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Capacitor Induction Motor
Motor Protection: Thermal Protection
Termination: Lead Wire
Weight: 1,740 g
Typical Applications
Compact Cooling
Electronic Equipment
Power Supplies
Communication Equipment

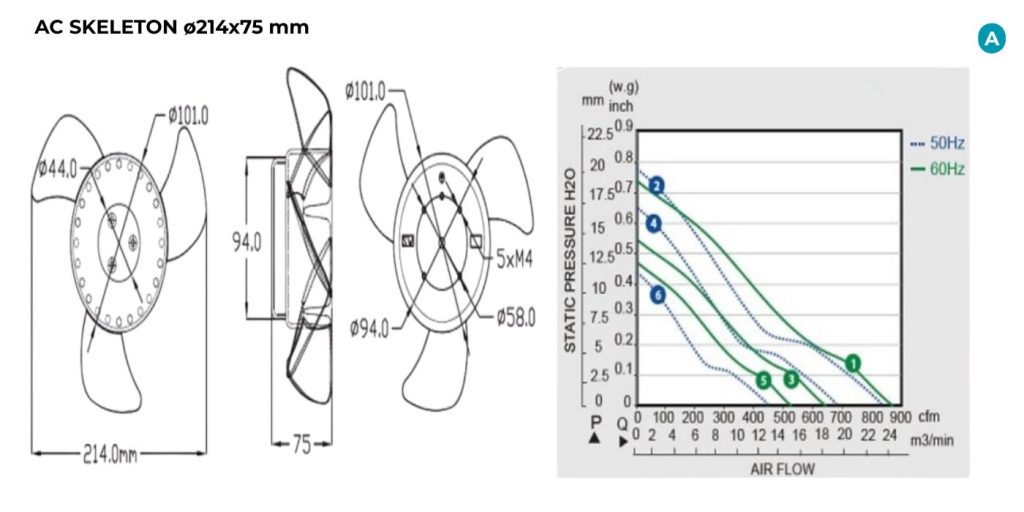

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYS12175HB | 115 | 50/60 | 60/75 | 2600/2700 | 820/860 | 19.81/18.54 | 65 |
| HYS22175HB | 230 | 50/60 | 60/75 | 2600/2700 | 820/860 | 19.81/18.54 | 65 |
