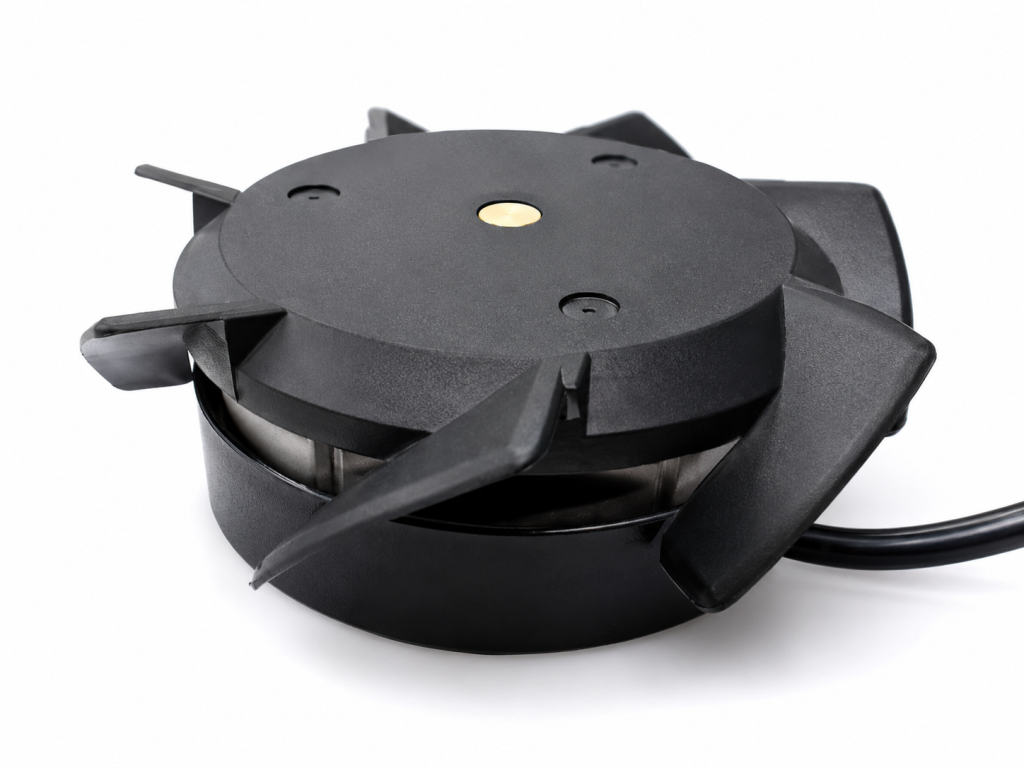

AC SKELETON FANS
ø75x24 mm
( ø2.95x0.94 in )
PRODUCT SPECIFICATIONS
Impeller: Glass-Fiber-Reinforced Plastic (UL94 V-0)
Ambient Temperature Range: -20°C ~ +70°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Shaded-Pole Induction Motor
Motor Protection: Impedance Protection
Termination: Lead Wire
Weight: 220 g
Typical Applications
Compact Cooling
Electronic Equipment
Power Supplies
Communication Equipment

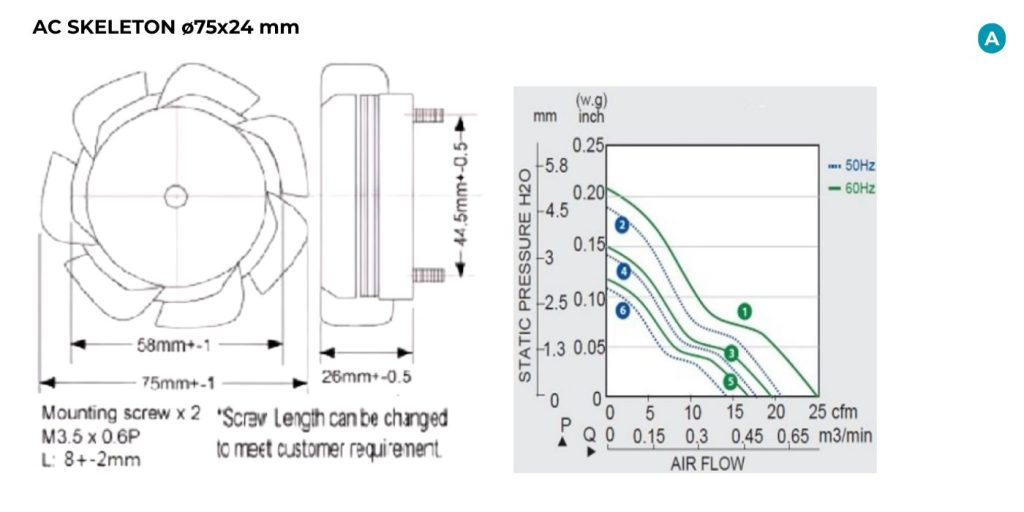

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYS17524HB | 115 | 50/60 | 11/9 | 2500/3000 | 22/25 | 4.57/5.33 | 28 |
| HYS27524HB | 230 | 50/60 | 11/9 | 2500/3000 | 22/25 | 4.57/5.33 | 28 |
