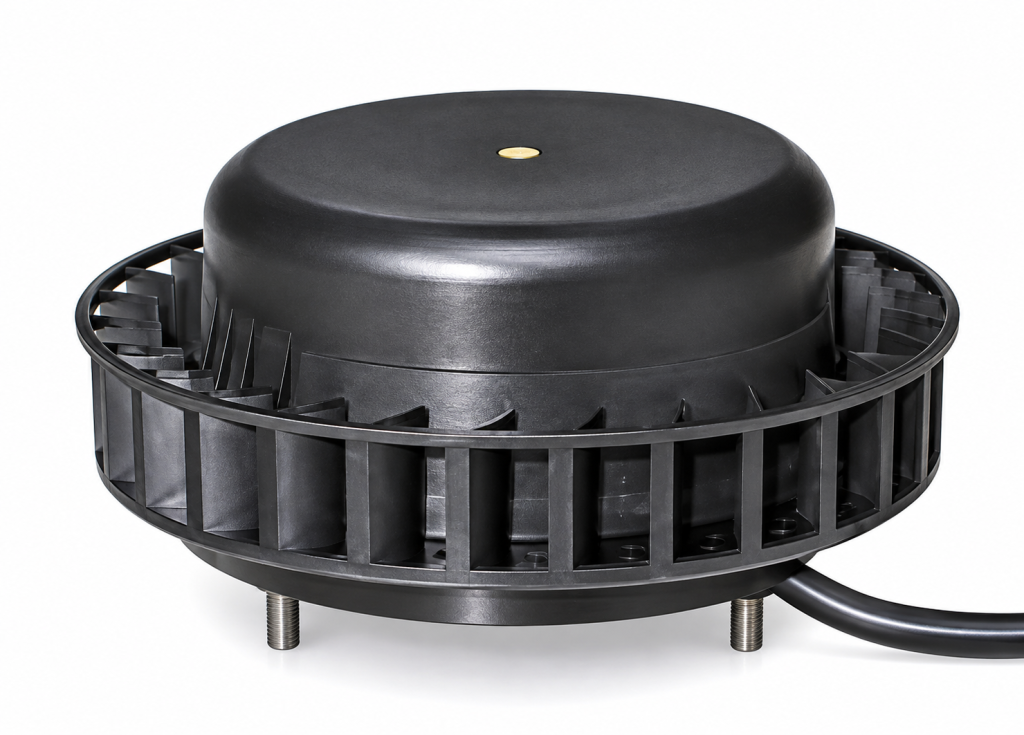

AC SKELETON FANS

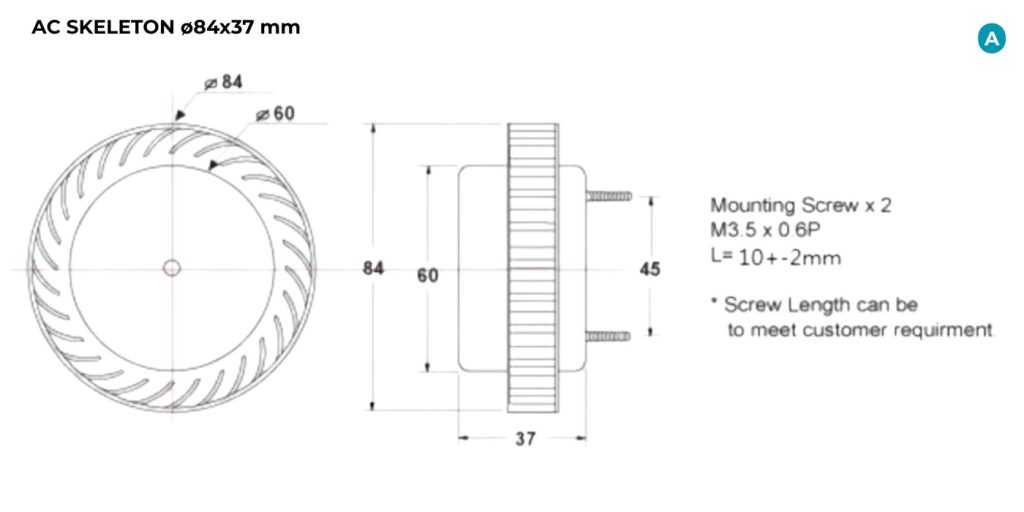

ø84x37 mm
( ø3.3x1.45 in )
PRODUCT SPECIFICATIONS
Impeller: Glass-Fiber-Reinforced Plastic (UL94 V-0)
Ambient Temperature Range: -20°C ~ +80°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Shaded-Pole Induction Motor
Motor Protection: Impedance Protection
Termination: Lead Wire
Weight: 320 g
Typical Applications
Compact Cooling
Electronic Equipment
Power Supplies
Communication Equipment
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYS18437HB | 115 | 50/60 | 20/18 | 2550/2800 | 29/33 | 10.67/12.7 | 48 |
| HYS28437HB | 230 | 50/60 | 20/18 | 2550/2800 | 29/33 | 10.67/12.7 | 47 |
