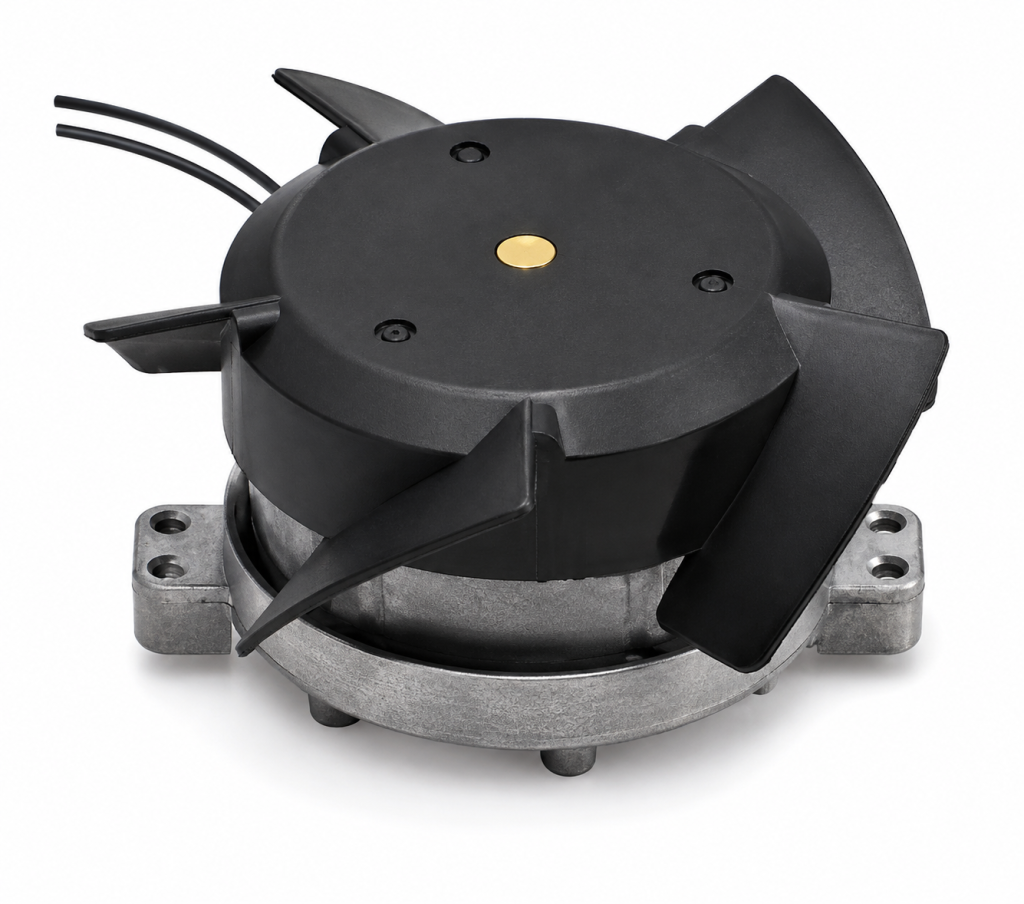

AC SKELETON FANS
ø85x42 mm
( ø3.34x1.65 in )
PRODUCT SPECIFICATIONS
Impeller: Glass-Fiber-Reinforced Plastic (UL94 V-0)
Ambient Temperature Range: -20°C ~ +70°C
Operating Voltage Range: Rated Voltage ±10%
Bearing: Ball Bearing
Motor Structure: Shaded-Pole Induction Motor
Motor Protection: Impedance Protection
Termination: Lead Wire
Typical Applications
Compact Cooling
Electronic Equipment
Power Supplies
Communication Equipment

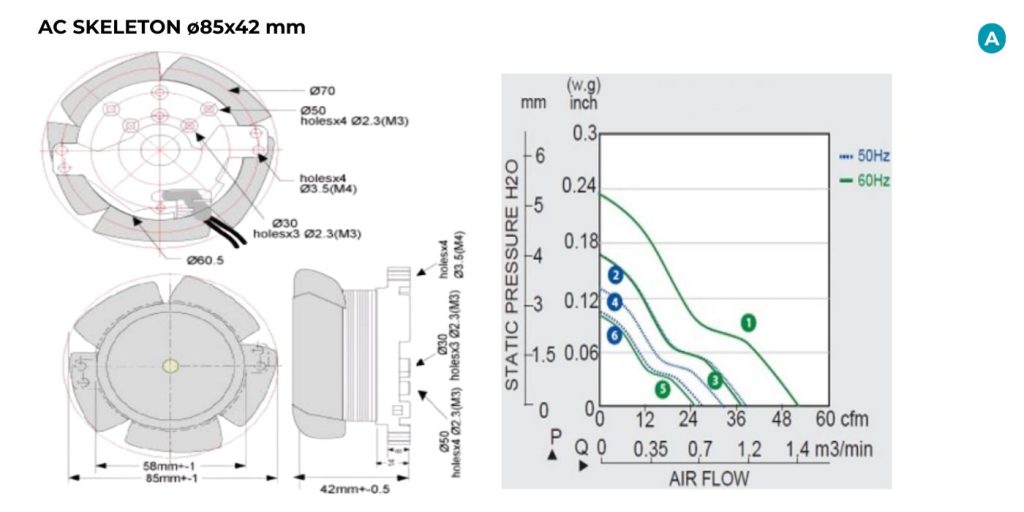

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (mm Aq) |
Noise (dB) |
|---|---|---|---|---|---|---|---|
| HYS18542HB | 115 | 50/60 | 11/9 | 2650/3100 | 43/52 | 4.06/5.59 | 33 |
| HYS28542HB | 230 | 50/60 | 11/9 | 2650/3100 | 43/52 | 4.06/5.59 | 33 |
