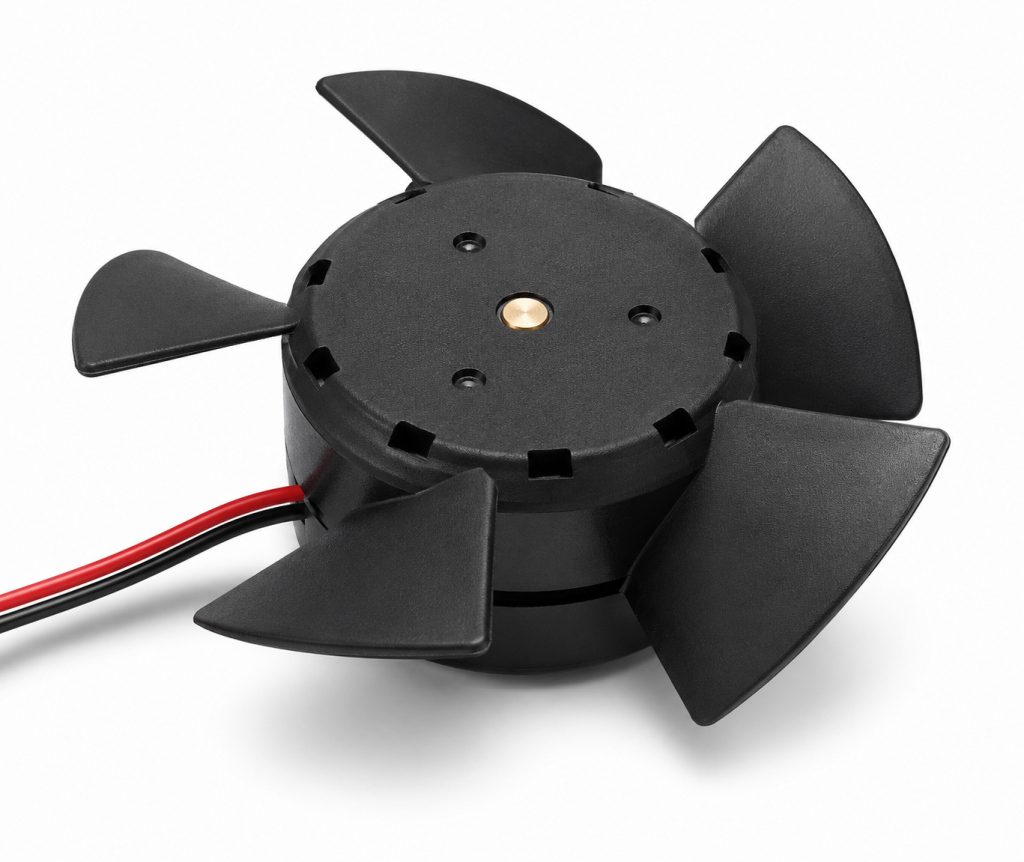

DC SKELETON FANS

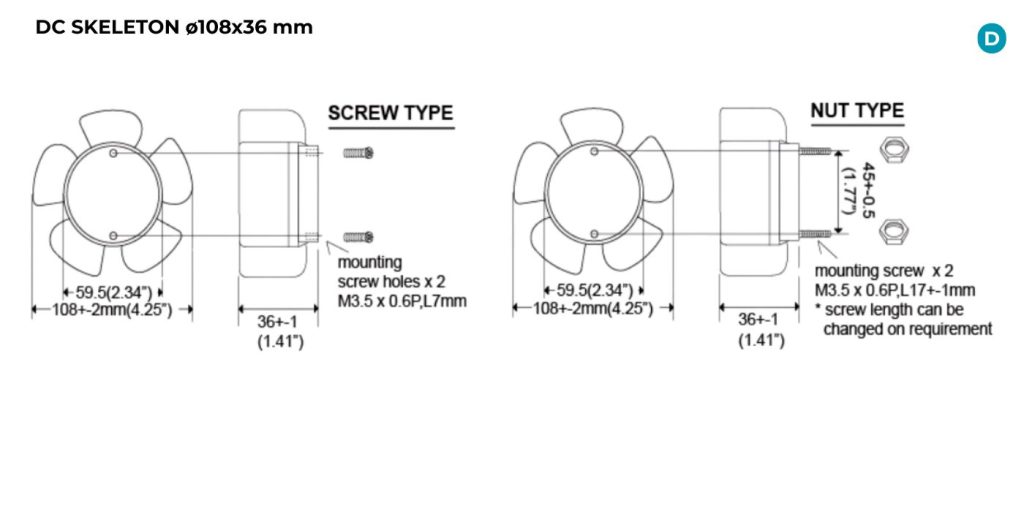

ø108x36 mm
PRODUCT SPECIFICATIONS
Impeller: Glass-Fiber-Reinforced PBT (UL94 V-0)
Ambient Temperature Range: -20°C ~ +70°C
Bearing: Ball Bearing
Motor Structure: Brushless DC Motor
Termination: Lead Wire, 350 mm
Weight: 170 g
Typical Applications
Compact Cooling
Electronic Equipment
Power Supplies
Communication Equipment
TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage Range (VDC) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYDS121036LBL | 12 | 10.0–14.0 | 0.2 | 2.4 | 2000 | 65 | 0.13 | 26 |
| HYDS121036MBL | 12 | 8.0–13.8 | 0.4 | 4.8 | 2500 | 78 | 0.21 | 33 |
| HYDS121036HBL | 12 | 8.0–13.8 | 0.5 | 6 | 3100 | 100 | 0.28 | 42 |
| HYDS241036LBL | 24 | 18.0–27.6 | 0.15 | 3.6 | 2000 | 65 | 0.13 | 26 |
| HYDS241036MBL | 24 | 18.0–27.0 | 0.19 | 4.6 | 2550 | 82 | 0.21 | 33 |
| HYDS241036HBL | 24 | 15.0–26.0 | 0.23 | 5.5 | 3200 | 105 | 0.28 | 42 |
| HYDS481036LBL | 48 | 30.0–56.0 | 0.07 | 3.6 | 2000 | 65 | 0.13 | 26 |
| HYDS481036MBL | 48 | 28.0–55.2 | 0.08 | 4.6 | 2550 | 82 | 0.21 | 33 |
| HYDS481036HHL | 48 | 28.0–55.0 | 0.1 | 5.5 | 3200 | 105 | 0.28 | 42 |
