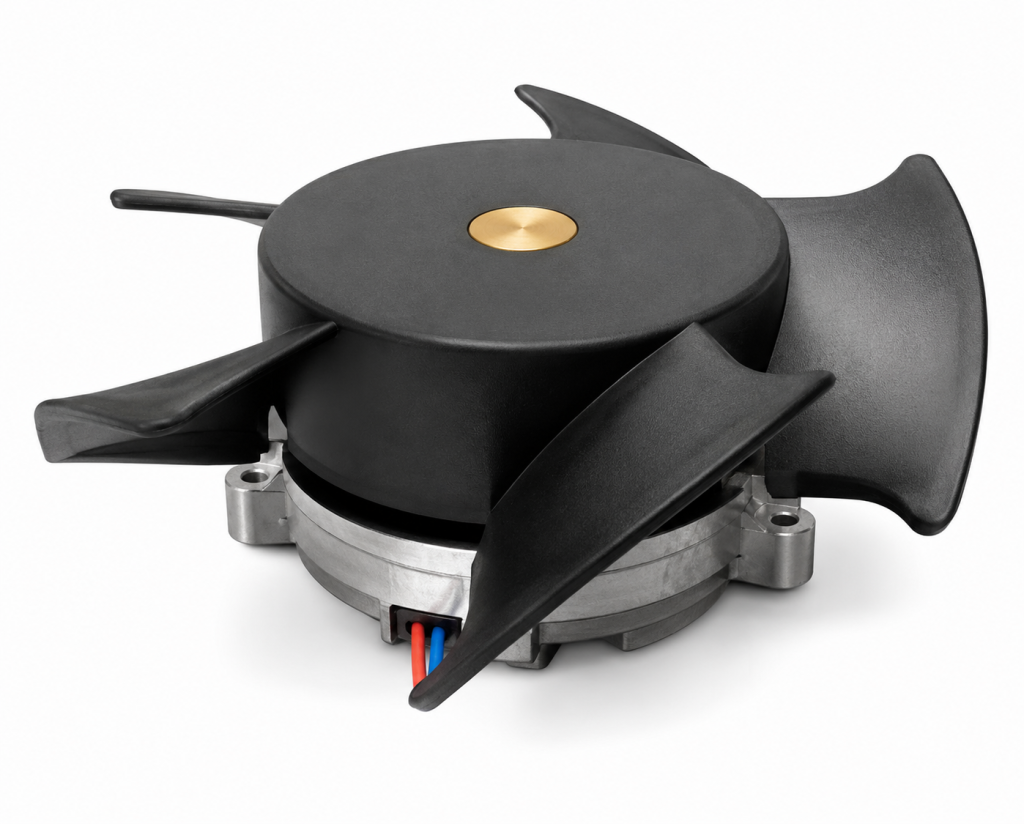

AC SKELETON FANS

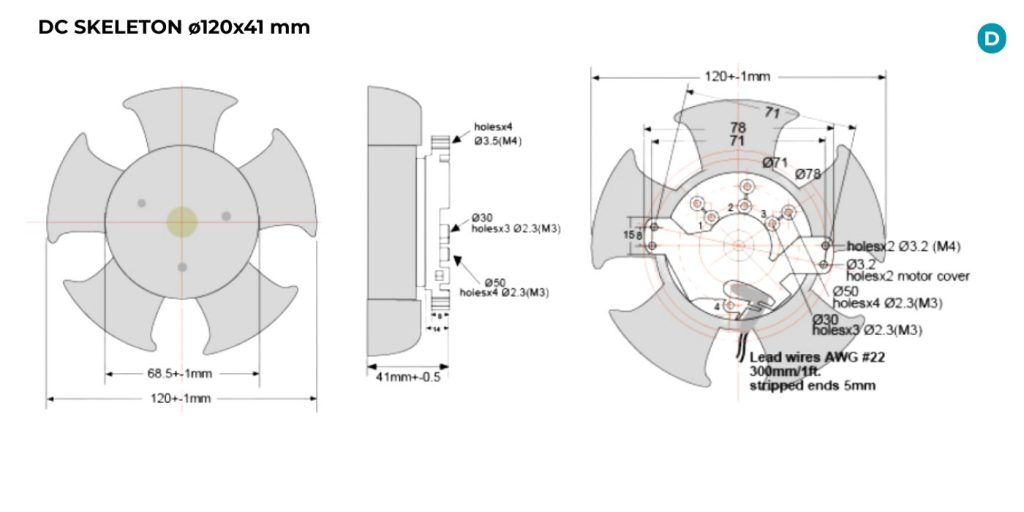

ø120x41 mm

PLASTIC IMPELLER

PRODUCT SPECIFICATIONS

Impeller: Glass-Fiber-Reinforced PBT (UL94 V-0)

Ambient Temperature Range: -20°C ~ +70°C

Bearing: Ball Bearing

Motor Structure: Brushless DC Motor

Termination: Lead Wire, 330 mm

Weight: 250 g

Send Inquiry →
View Catalog →

Typical Applications

Compact Cooling

Electronic Equipment

Power Supplies

Communication Equipment

TECHNICAL DATA

Performance Specifications

Model Voltage
(V)		 Operating Voltage
Range (VDC)		 Current
(A)		 Power
(W)		 Speed
(RPM)		 Airflow
(CFM)		 Pressure
(in-H2O)		 Noise
(dB)
HYSD051241LBL 5 4–6 0.4 2 1700 75 0.21 28
HYSD051241MBL 5 4–6 0.55 3 2000 90 0.27 32
HYSD051241HBL 5 4–6 0.65 3.5 2300 100 0.31 36
HYSD051241XBL 5 4–6 1.6 8 2600 113 0.35 40
HYSD051241UBL 5 4–6 1.9 9.5 2900 128 0.39 43
HYSD121241LBL 12 9–13.8 0.2 2.4 1900 86 0.23 30
HYSD121241MBL 12 9–13.8 0.4 4.8 2200 96 0.29 34
HYSD121241HBL 12 9–13.8 0.5 6 2500 110 0.33 40
HYSD121241XBL 12 9–13.8 0.7 8.4 2800 122 0.37 43
HYSD121241UBL 12 9–13.8 0.88 10.6 3100 138 0.4 46
HYSD241241LBL 24 26–56 0.15 3.6 1900 86 0.23 30
HYSD241241MBL 24 26–56 0.19 4.6 2200 96 0.29 34
HYSD241241HBL 24 26–56 0.23 5.5 2600 115 0.35 40
HYSD241241XBL 24 26–56 0.35 8.4 2900 128 0.39 43
HYSD241241UBL 24 26–56 0.43 10.3 3200 145 0.39 43
HYSD481241LBL 48 26–56 0.07 3.4 1900 86 0.23 30
HYSD481241MBL 48 26–56 0.08 3.8 2200 96 0.29 34
HYSD481241HBL 48 26–56 0.1 5 2600 115 0.35 40
HYSD481241XBL 48 26–56 0.16 7.7 2900 128 0.39 43
HYSD481241UBL 48 26–56 0.22 10.6 3200 128 0.39 43
