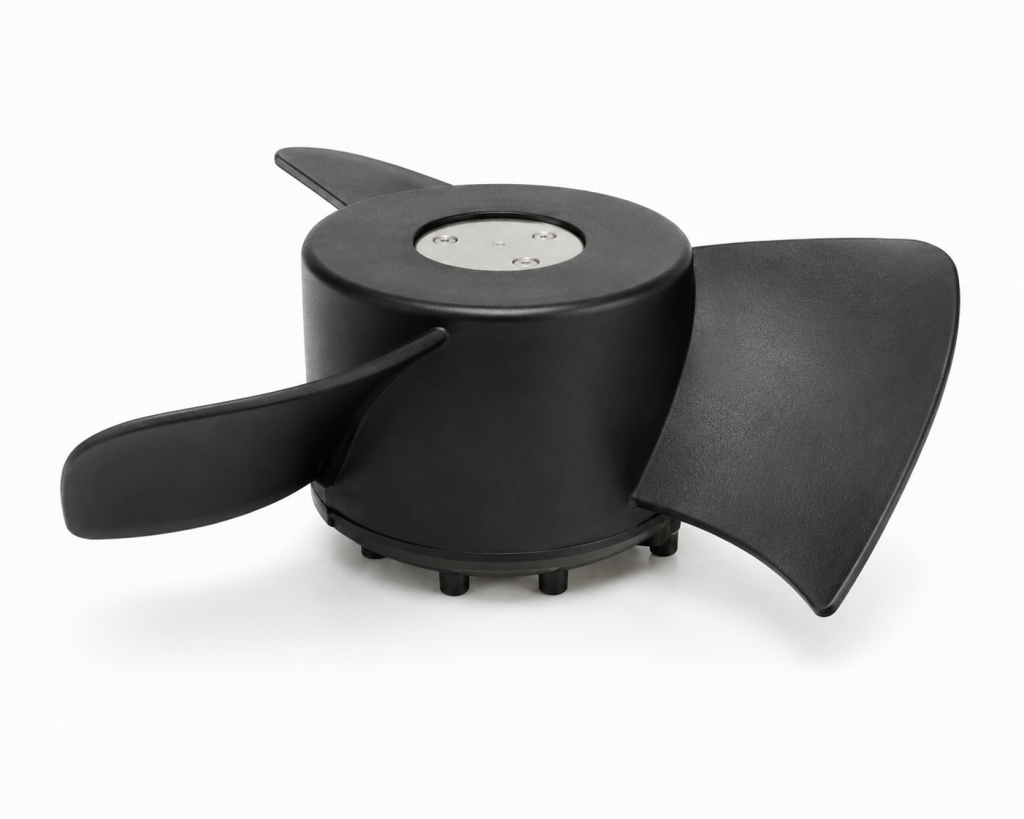

DC SKELETON FANS

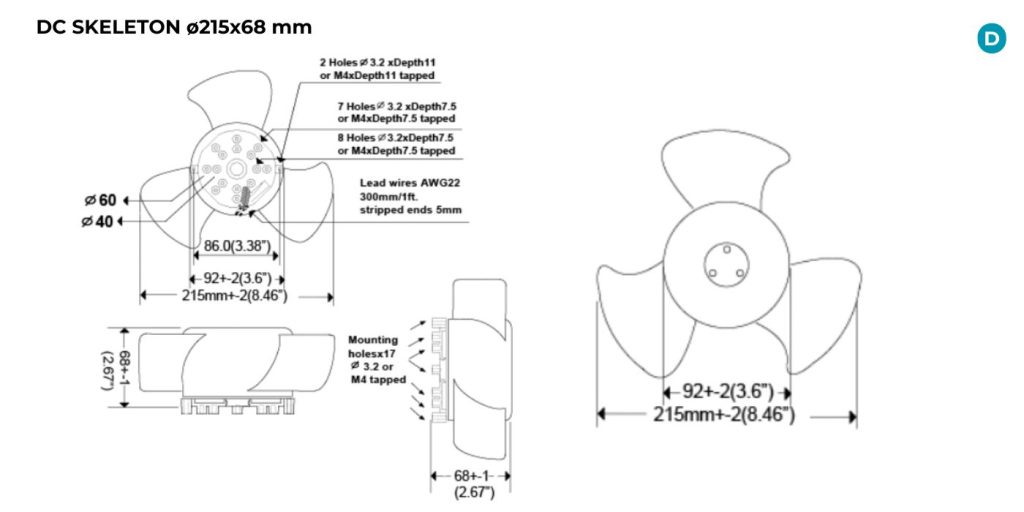

ø215x68 mm
PRODUCT SPECIFICATIONS
Impeller: Glass-Fiber-Reinforced PBT (UL94 V-0)
Ambient Temperature Range: -15°C ~ +65°C
Bearing: Ball Bearing
Motor Structure: Brushless DC Motor
Termination: Lead Wire, 300 mm
Weight: 900 g
Typical Applications
Compact Cooling
Electronic Equipment
Power Supplies
Communication Equipment
TECHNICAL DATA
Performance Specifications
| Model | Voltage (VDC) |
Operating Voltage Range (VDC) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (CFM) |
Pressure (in-H2O) |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| HYDS12216BLBL | 12 | 10.0–16.0 | 0.45 | 5.5 | 1000 | 340 | 0.23 | 26 |
| HYDS12216BLBL | 12 | 10.0–16.0 | 0.45 | 5.5 | 1650 | 540 | 0.36 | 39 |
| HYDS12216BMBL | 12 | 9.0–14.0 | 1.1 | 13.2 | 2000 | 680 | 0.57 | 46 |
| HYDS12216BHBL | 12 | 9.0–13.0 | 1.9 | 23 | 2400 | 810 | 0.78 | 64 |
| HYDS24216BLBL | 24 | 18.0–32.0 | 0.2 | 5 | 1000 | 340 | 0.23 | 26 |
| HYDS24216BLBL | 24 | 18.0–30.0 | 0.2 | 5 | 1650 | 550 | 0.37 | 39 |
| HYDS24216BMBL | 24 | 16.0–27.6 | 0.52 | 13 | 2000 | 690 | 0.57 | 46 |
| HYDS24216BHBL | 24 | 16.0–27.0 | 0.97 | 24 | 2500 | 830 | 0.78 | 64 |
| HYDS48216BLBL | 48 | 28.0–63.0 | 0.12 | 5.8 | 1000 | 340 | 0.23 | 26 |
| HYDS48216BLBL | 48 | 28.0–58.0 | 0.12 | 5.8 | 1650 | 550 | 0.37 | 39 |
| HYDS48216BMBL | 48 | 24.0–56.0 | 0.3 | 14.5 | 2000 | 690 | 0.57 | 46 |
| HYDS48216BHBL | 48 | 24.0–53.0 | 0.48 | 23.5 | 2500 | 830 | 0.78 | 64 |
