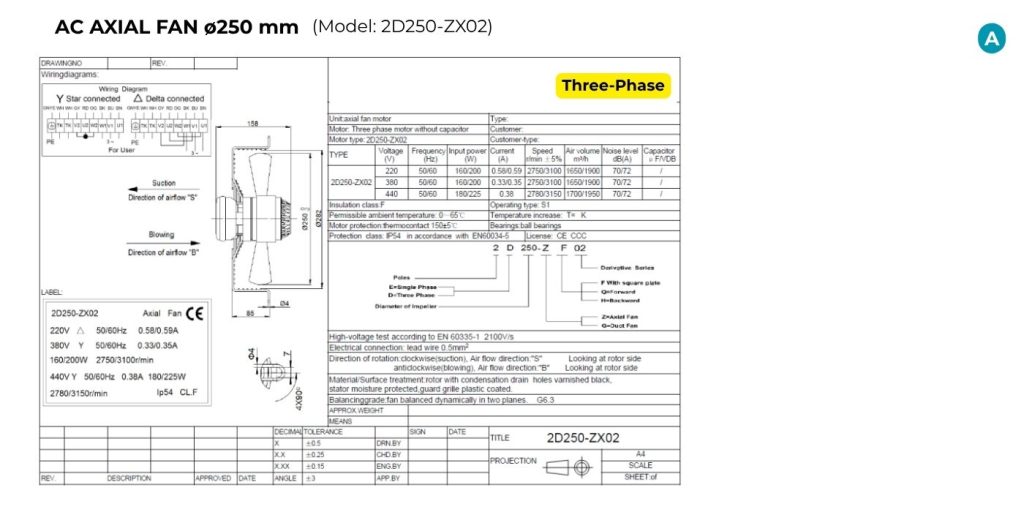

AC AXIAL FANS
ø250 mm
(Model: 2D250-ZX02)
PRODUCT SPECIFICATIONS
Motor Structure: Three-Phase AC Motor
Ambient Temperature Range: 0°C ~ +65°C
Insulation Class: Class F
Bearing: Ball Bearings
Motor Protection: Thermal Contact 150 ± 5°C
Protection Class: IP54
Termination: Lead Wire, 0.5 mm²
Typical Applications
HVAC Systems
Industrial Ventilation
Machinery Cooling
Equipment Ventilation
TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Input Power (W) |
Current (A) |
Speed (RPM) |
Airflow (m³/h) |
Noise Level (dB) |
|---|---|---|---|---|---|---|---|
| 2D250-ZX02 | 220 | 50 | 180 | 0.58 | 2750 | 1600 | 70 |
| 2D250-ZX02 | 230 | 50/60 | 160/200 | 0.53/0.58 | 2750/3100 | 1600/1900 | 70/72 |
| 2D250-ZX02 | 380 | 50/60 | 180/220 | 0.33/0.35 | 2750/3100 | 1600/1900 | 70/72 |
| 2D250-ZX02 | 440Y | 50/60 | 180/220 | 0.30/0.30 | 2750/3100 | 1600/1900 | 70/72 |
