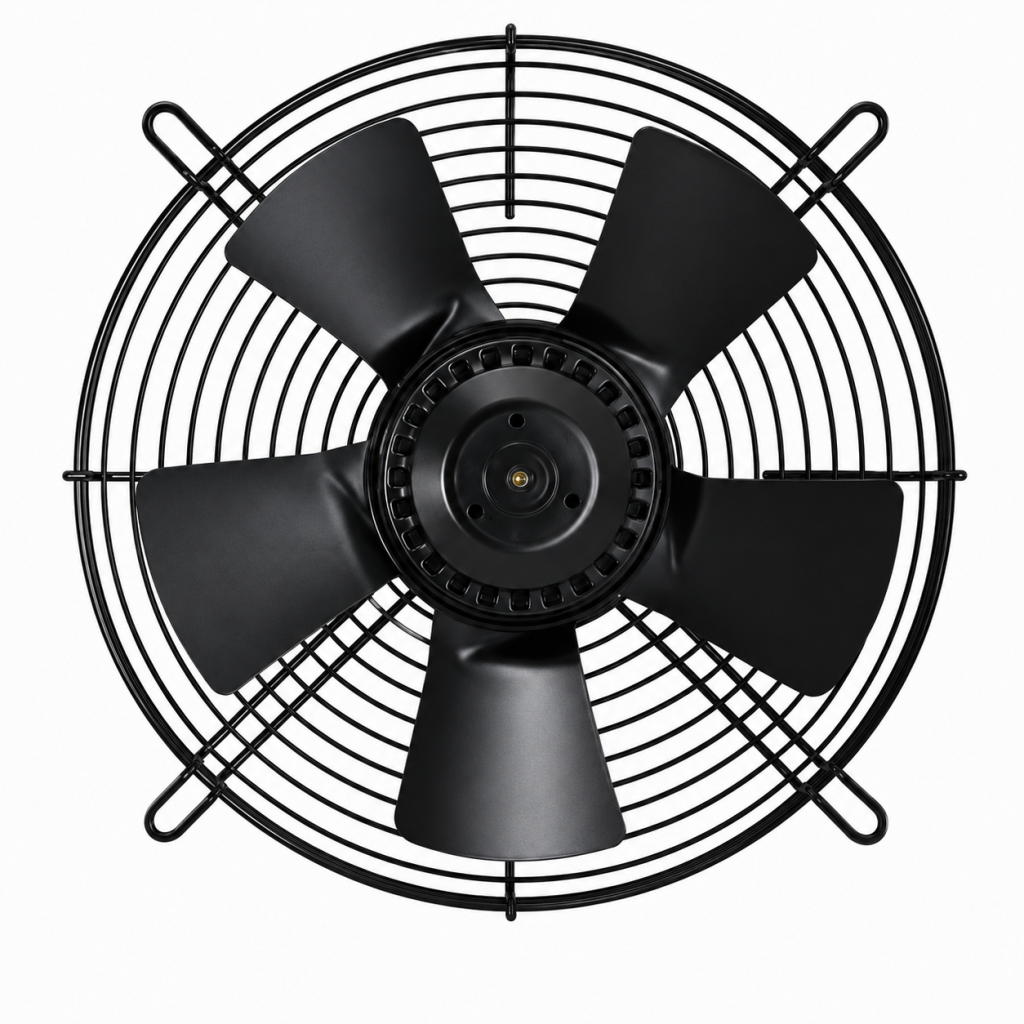

AC AXIAL FANS
ø250 mm
(Model: 2E250Z & 4E250Z)
PRODUCT SPECIFICATIONS
Material: Steel
Typical Applications
HVAC Systems
Industrial Ventilation
Machinery Cooling
Equipment Ventilation
TECHNICAL DATA
Performance Specifications
| Model | Voltage (VAC) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (m³/hr) |
Noise (dB) |
Weight (kg) |
A | B |
|---|---|---|---|---|---|---|---|---|---|---|
| 2E250Z | 230 | 50/60 | 0.66/0.84 | 150/185 | 2500/2600 | 1700/1900 | 69/70 | 3.2 | 113 | 145 |
| 4E250Z | 230 | 50/60 | 0.32/0.30 | 50/65 | 1350/1500 | 1000/1150 | 50/55 | 2.5 | 94 | 126 |
