AC AXIAL FANS
ø250 mm
(Model: 4D250-Z)
PRODUCT SPECIFICATIONS
Motor Structure: Three-Phase AC Motor
Ambient Temperature Range: 0°C ~ +75°C
Insulation Class: Class F
Bearing: Ball Bearings
Motor Protection: Thermal Contact 150 ± 5°C
Protection Class: IP54
Termination: Lead Wire, 0.5 mm²
Typical Applications
HVAC Systems
Industrial Ventilation
Machinery Cooling
Equipment Ventilation

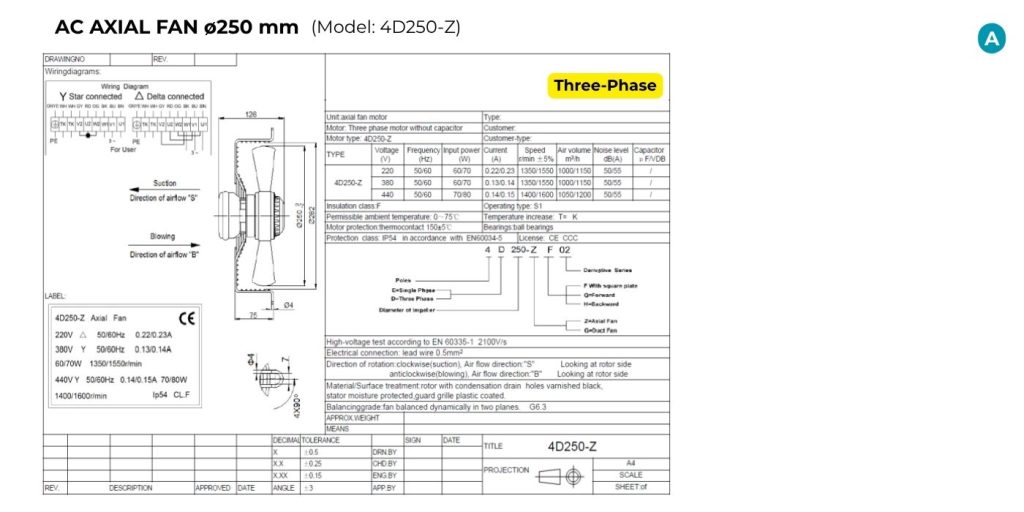

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Input Power (W) |
Current (A) |
Speed (RPM) |
Airflow (m³/h) |
Noise Level (dB) |
|---|---|---|---|---|---|---|---|
| 4D250-Z | 220 | 50 | 80 | 0.220 | 1350 | 1000 | 50 |
| 4D250-Z | 230 | 50/60 | 60/70 | 0.13/0.14 | 1350/1550 | 1000/1150 | 50/55 |
| 4D250-Z | 380 | 50/60 | 60/70 | 0.13/0.14 | 1350/1550 | 1000/1150 | 50/55 |
| 4D250-Z | 440Y | 50/60 | 70/80 | 0.14/0.15 | 1400/1600 | 1050/1200 | 50/55 |
