AC AXIAL FANS
ø300 mm
(Model: 2D300-ZX01)
PRODUCT SPECIFICATIONS
Motor Structure: Three-Phase AC Motor
Ambient Temperature Range: 0°C ~ +65°C
Insulation Class: Class F
Bearing: Ball Bearings
Motor Protection: Thermal Contact 150 ± 5°C
Protection Class: IP54
Termination: Lead Wire, 0.5 mm²
Typical Applications
HVAC Systems
Industrial Ventilation
Machinery Cooling
Equipment Ventilation

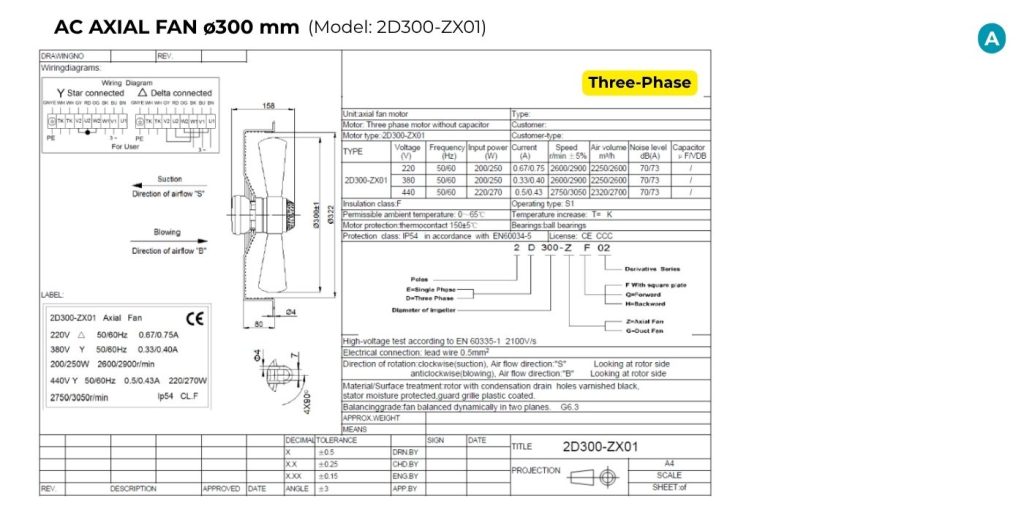

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Input Power (W) |
Current (A) |
Speed (RPM) |
Airflow (m³/h) |
Noise Level (dB) |
|---|---|---|---|---|---|---|---|
| 2D300-ZX01 | 220 | 50/60 | 200/250 | 0.67/0.75 | 2500/2900 | 2500/2900 | 70/73 |
| 2D300-ZX01 | 230 | 50/60 | 200/250 | 0.67/0.75 | 2500/2900 | 2500/2900 | 70/73 |
| 2D300-ZX01 | 380 | 50/60 | 200/250 | 0.33/0.40 | 2500/2900 | 2500/2900 | 70/73 |
| 2D300-ZX01 | 440Y | 50/60 | 220/270 | 0.50/0.30 | 2750/3050 | 3200/2700 | 70/73 |
