AC AXIAL FANS
ø300 mm
(Model: 2E300-ZX01)
PRODUCT SPECIFICATIONS
Motor Structure: Single-Phase AC Motor with Capacitor
Ambient Temperature Range: 0°C ~ +65°C
Insulation Class: Class F
Bearing: Ball Bearings
Motor Protection: Thermal Contact 150 ± 5°C
Protection Class: IP54
Termination: Lead Wire, 0.5 mm²
Typical Applications
HVAC Systems
Industrial Ventilation
Machinery Cooling
Equipment Ventilation

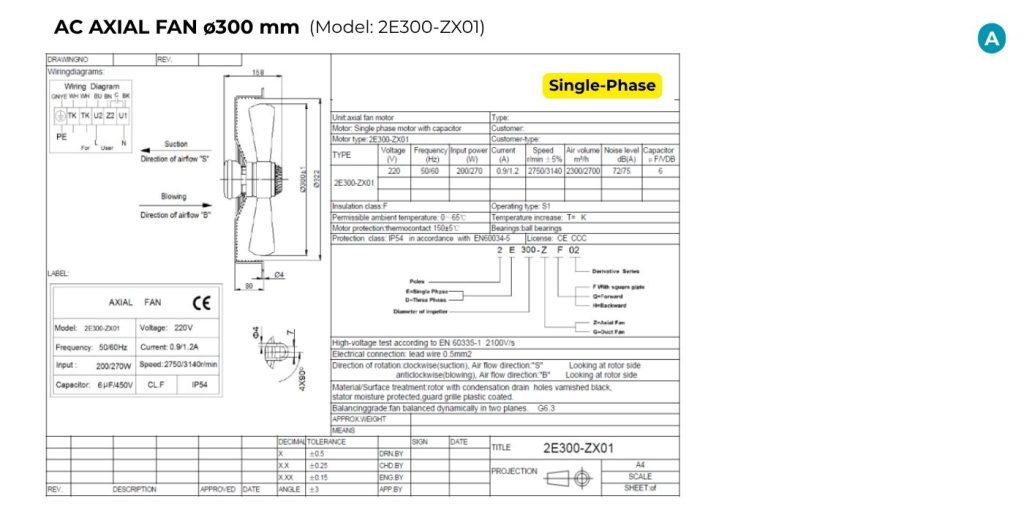

TECHNICAL DATA
Performance Specifications
| Model | Voltage (V) |
Freq. (Hz) |
Input Power (W) |
Current (A) |
Speed (RPM) |
Airflow (m³/h) |
Noise Level (dB) |
Capacitor (μF/VDB) |
|---|---|---|---|---|---|---|---|---|
| 2E300-ZX01 | 220 | 50/60 | 200/270 | 0.9/1.2 | 2750/3140 | 3000/3700 | 72/75 | 6 |
