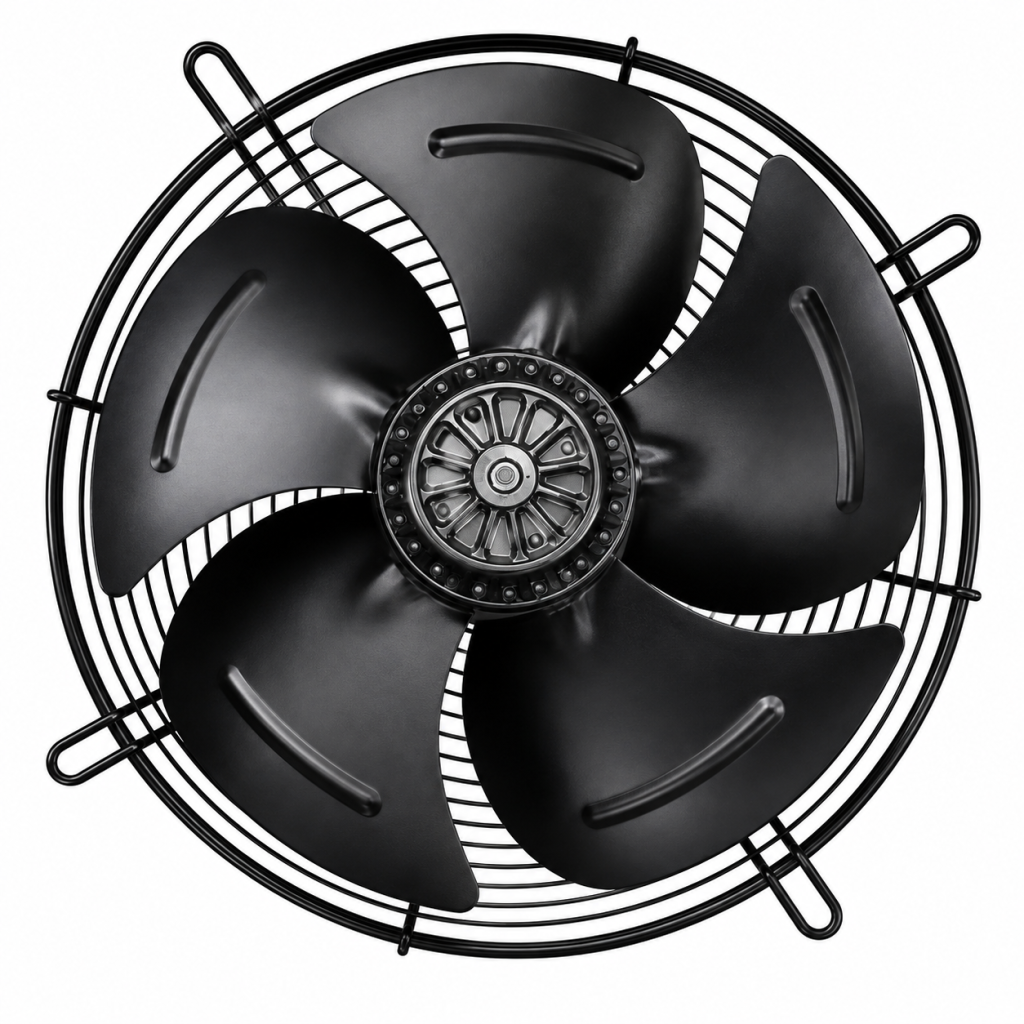

AC AXIAL FANS
ø350 mm
PRODUCT SPECIFICATIONS
Material: Steel
Weight: 4.7 kg
Typical Applications
HVAC Systems
Industrial Ventilation
Machinery Cooling
Equipment Ventilation

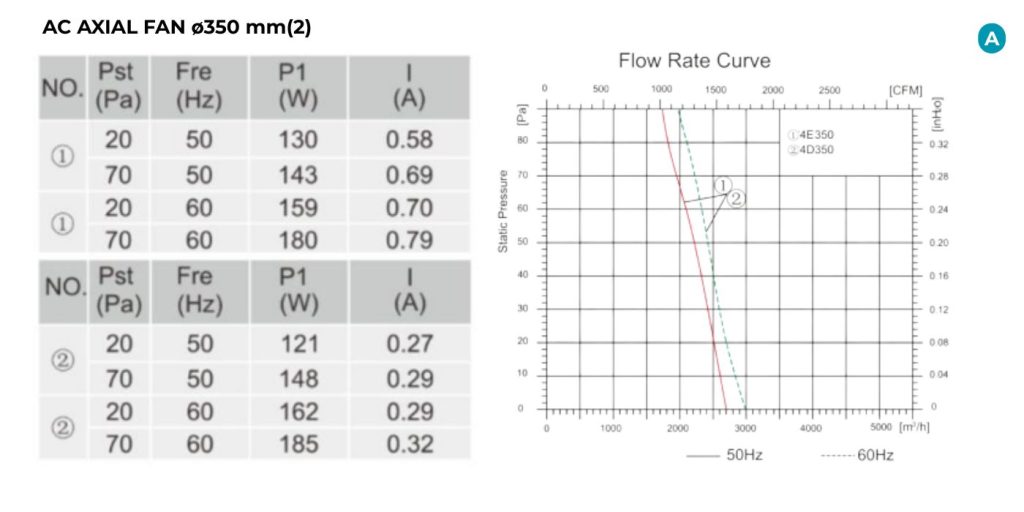

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VAC) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (m³/h) |
Ambient Temp. (°C) Max |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| 4E350Z | 230 | 50/60 | 0.68/0.82 | 138/190 | 1380/1590 | 2700/3000 | 65 | 62/67 |
| 4D350Z | 380 | 50/60 | 0.30/0.34 | 145/185 | 1380/1580 | 2700/3000 | 65 | 62/67 |
| 6E350Z | 230 | 50/60 | 0.40/0.42 | 80/95 | 930/1100 | 2100/2450 | 65 | 53 |
| 6D350Z | 380 | 50/60 | 0.29/0.24 | 90/95 | 940/1100 | 2100/2450 | 65 | 53 |
