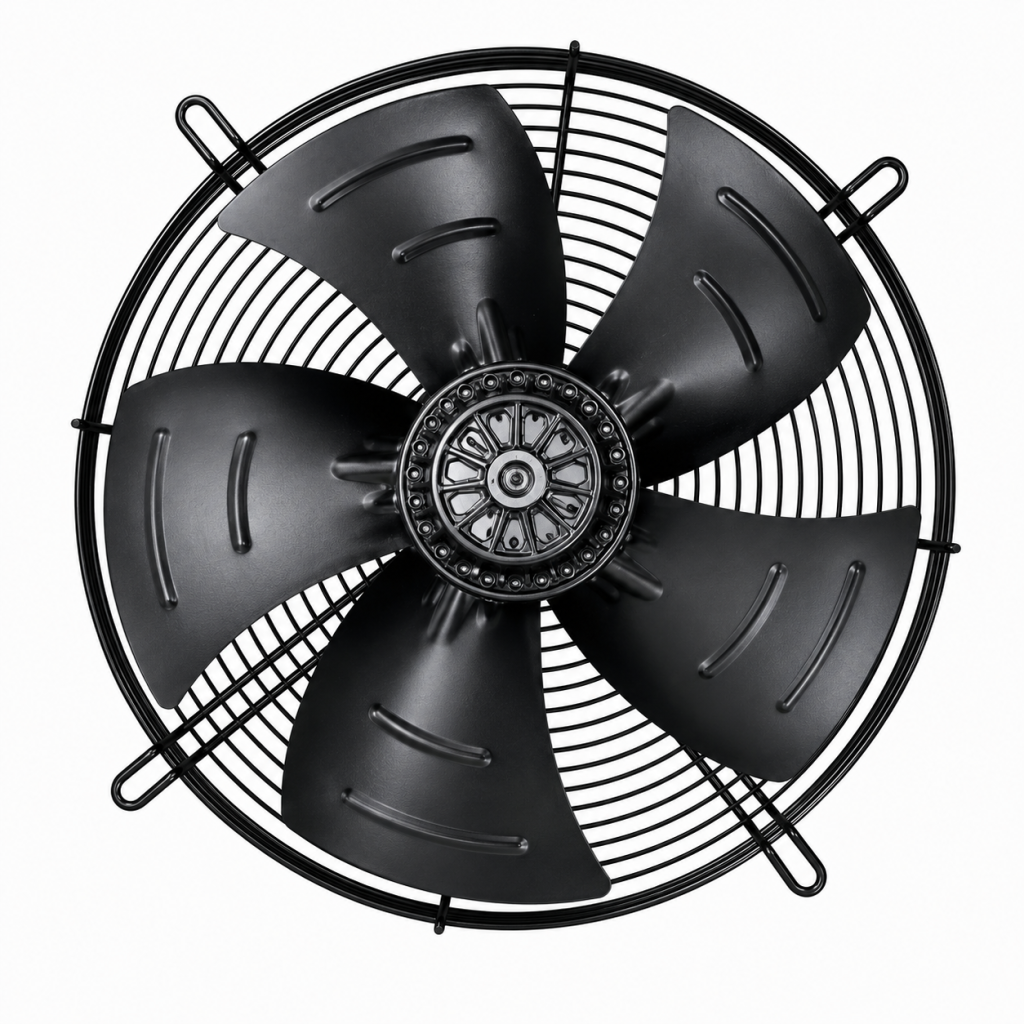

AC AXIAL FANS
ø400 mm
PRODUCT SPECIFICATIONS
Material: Steel
Weight: 6.1 kg
Typical Applications
HVAC Systems
Industrial Ventilation
Machinery Cooling
Equipment Ventilation

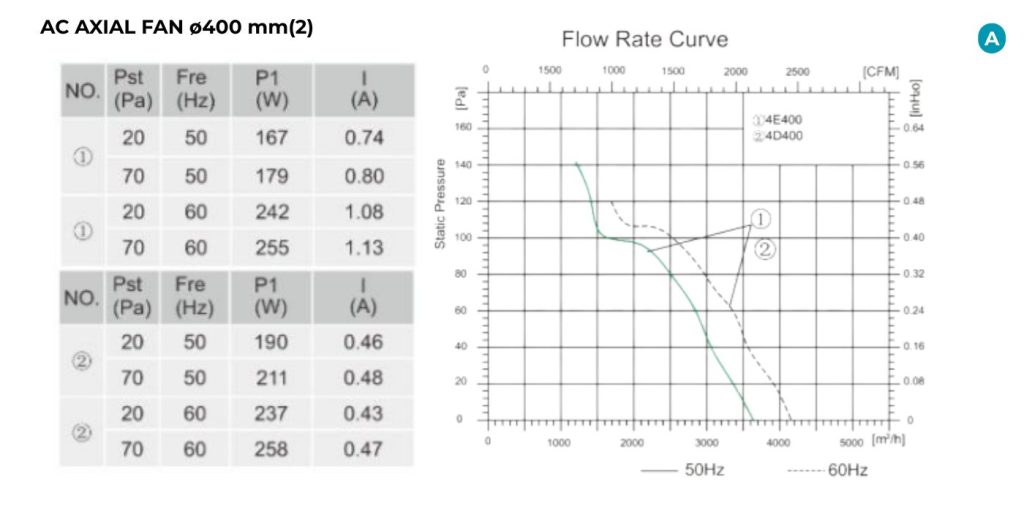

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VAC) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (m³/h) |
Ambient Temp. (°C) Max |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| 4E400Z | 230 | 50/60 | 0.81/1.15 | 180/260 | 1390/1590 | 3650/4150 | 65 | 67/72 |
| 4D400Z | 380 | 50/60 | 0.46/0.48 | 190/260 | 1390/1590 | 3690/4150 | 65 | 67/72 |
| 6E400Z | 230 | 50/60 | 0.67/0.75 | 115/150 | 940/1080 | 2900/3300 | 58 | 58 |
| 6D400Z | 380 | 50/60 | 0.36/0.31 | 115/150 | 900/1000 | 2900/3300 | 60 | 60 |
