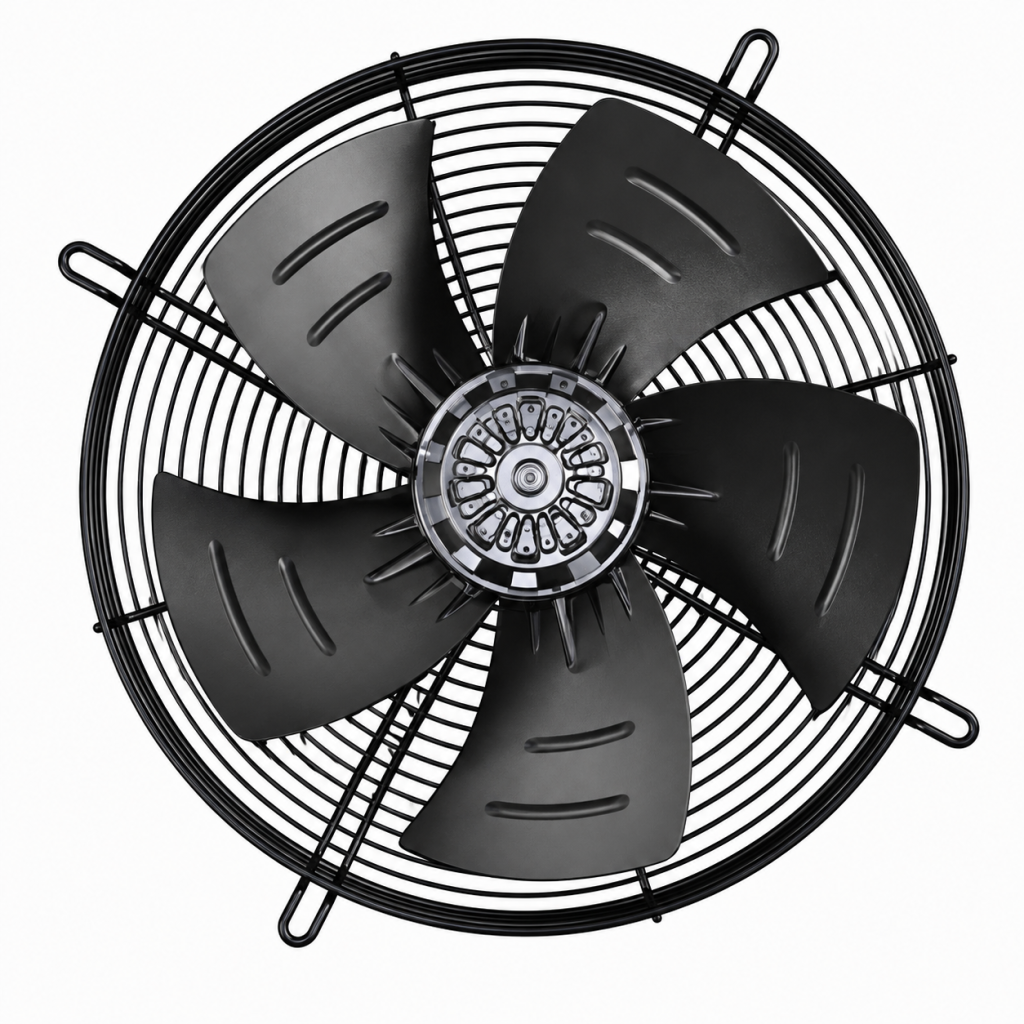

AC AXIAL FANS
ø420 mm
(Model: 420Z02)
PRODUCT SPECIFICATIONS
Material: Steel
Weight: 8 kg
Typical Applications
HVAC Systems
Industrial Ventilation
Machinery Cooling
Equipment Ventilation
TECHNICAL DATA

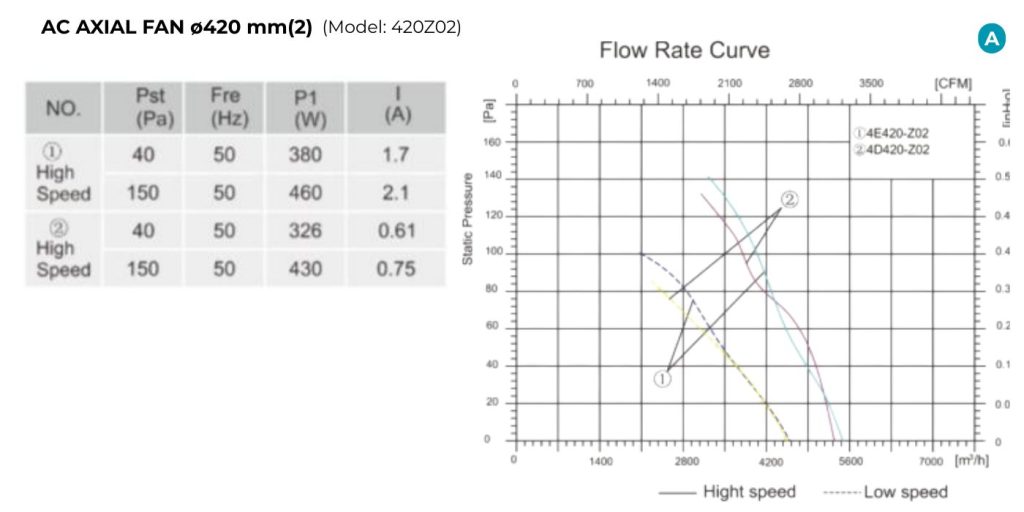

Performance Specifications
| Model | Voltage (VAC) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (m³/h) |
Ambient Temp. (°C) Max |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| 4E420Z02 | 230 | 50 | 2/1.3 | 450/295 | 1380/1150 | 5500/4500 | 60 | 70/65 |
| 4D420Z02 | 400 | 50 | 0.75/0.41 | 430/260 | 1350/1150 | 5300/4500 | 60 | 70/65 |
