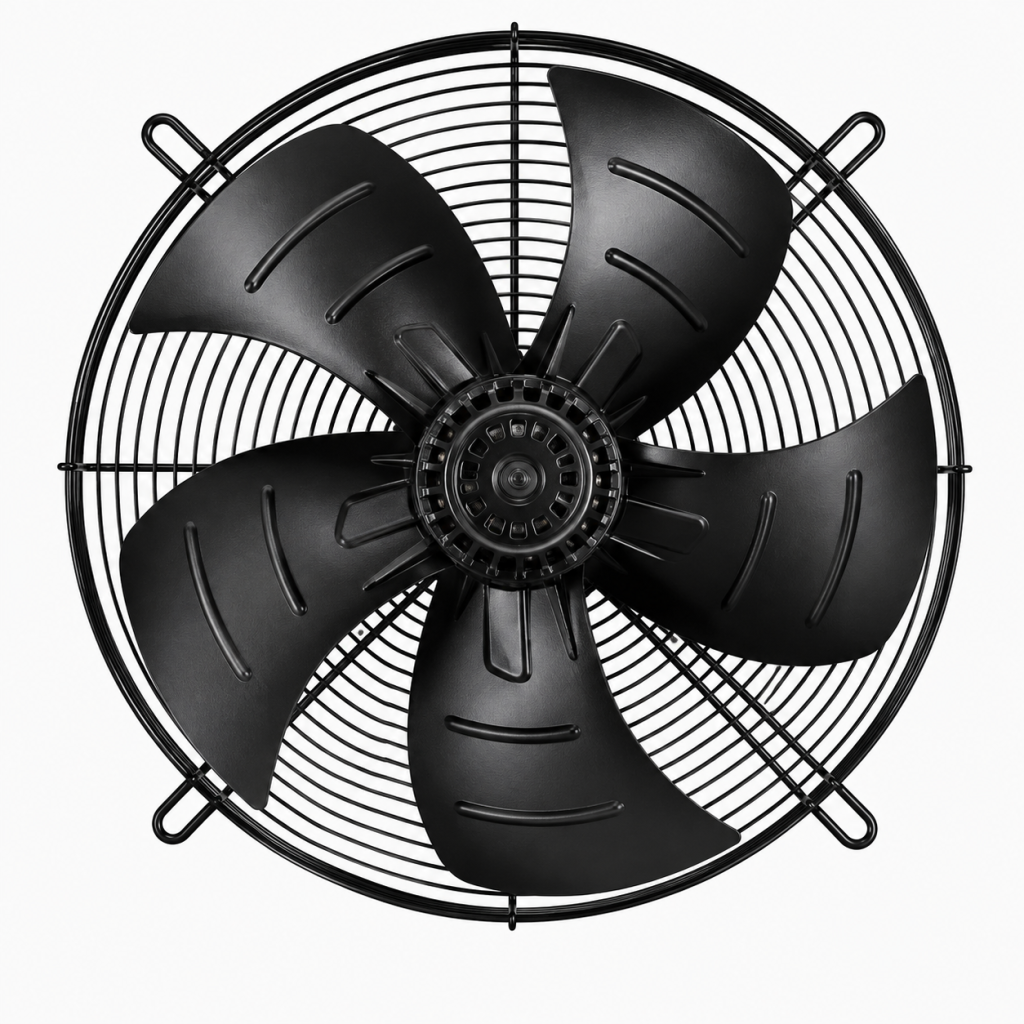

AC AXIAL FANS
ø450 mm
(Model: 450Z)
PRODUCT SPECIFICATIONS
Material: Steel
Weight: 6.9 kg
Typical Applications
HVAC Systems
Industrial Ventilation
Machinery Cooling
Equipment Ventilation

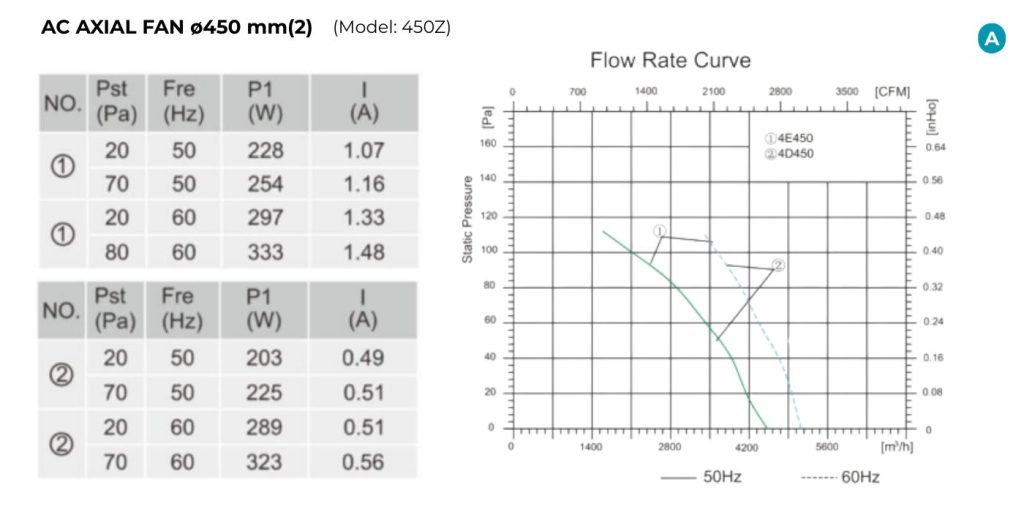

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VAC) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (m³/h) |
Ambient Temp. (°C) Max |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| 4D450Z | 380 | 50/60 | 0.53/0.63 | 250/350 | 1410/1630 | 4400/5200 | 55 | 68/73 |
| 4E450Z | 230 | 50/60 | 1.15/1.6 | 250/360 | 1430/1660 | 4400/5200 | 55 | 71/74 |
| 6D450Z | 380 | 50/60 | 0.48/0.46 | 150/180 | 930/1050 | 3450/3850 | 55 | 62/65 |
| 6E450Z | 230 | 50/60 | 0.68/0.82 | 150/185 | 900/1050 | 3450/3850 | 55 | 60/65 |
