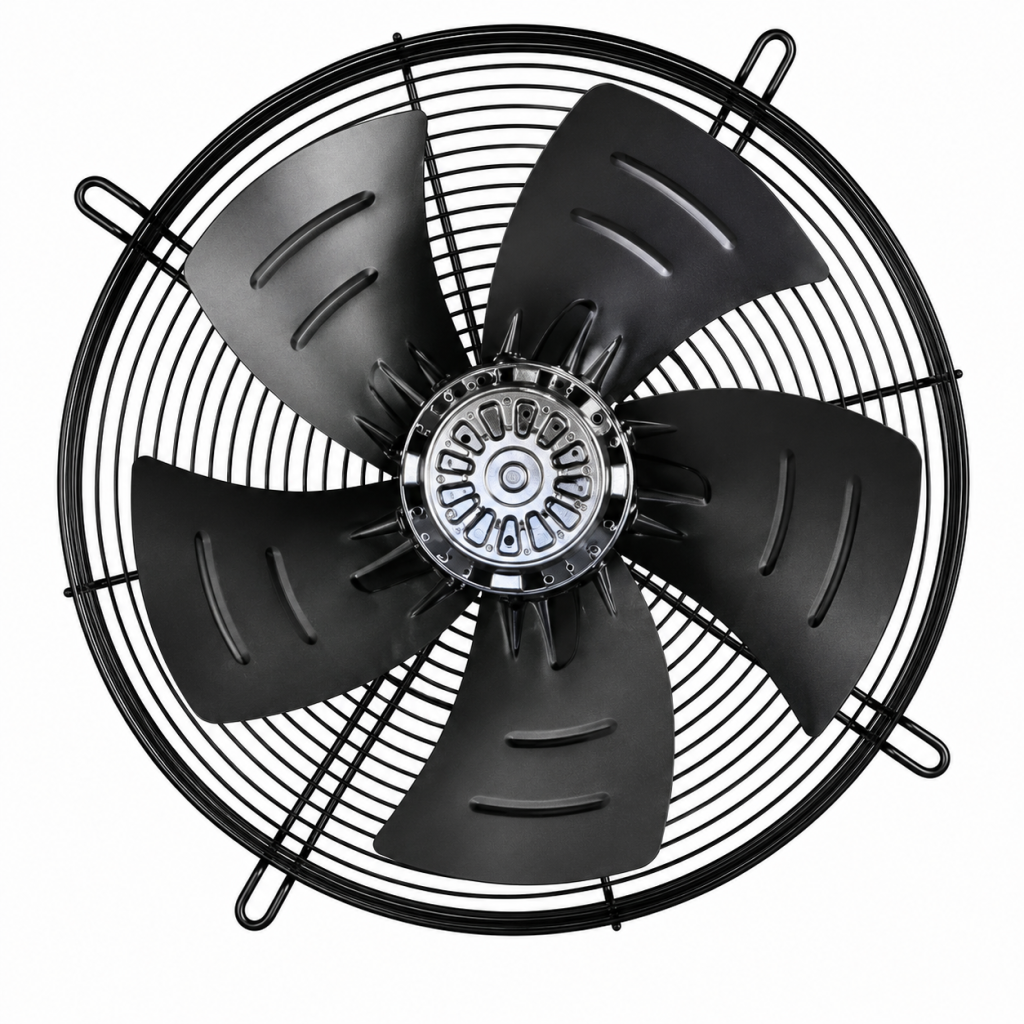

AC AXIAL FANS
ø450 mm
(Model: 450ZX05)
PRODUCT SPECIFICATIONS
Material: Steel
Weight: 8.5 kg
Typical Applications
HVAC Systems
Industrial Ventilation
Machinery Cooling
Equipment Ventilation

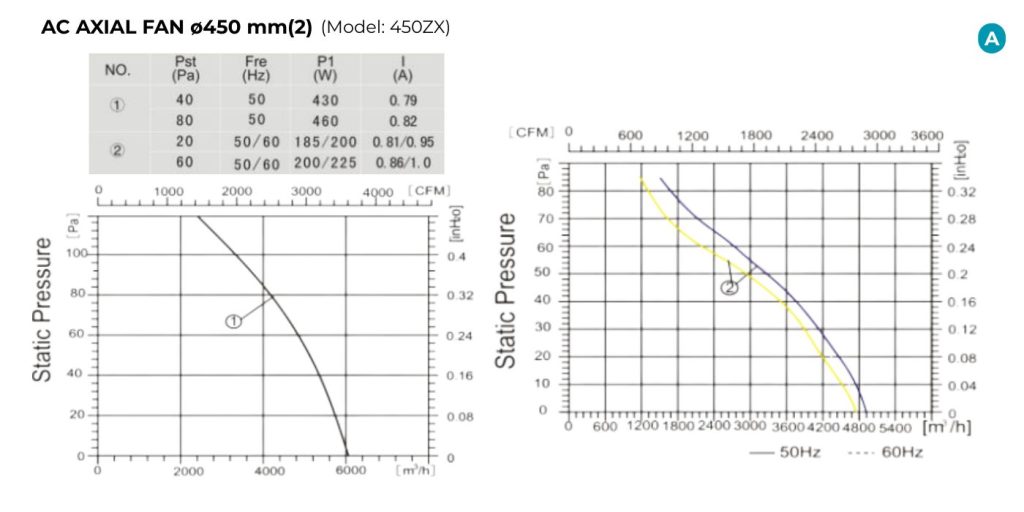

TECHNICAL DATA
Performance Specifications
| Model | Voltage (VAC) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (m³/h) |
Ambient Temp. (°C) Max |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| 4D450ZX05 | 400 | 50 | 0.82 | 460 | 1320 | 6200 | 55 | 68 |
| 6E450ZX06 | 230 | 50/60 | 0.86/1.25 | 200/285 | 900/1000 | 4650/5100 | 55 | 60/63 |
