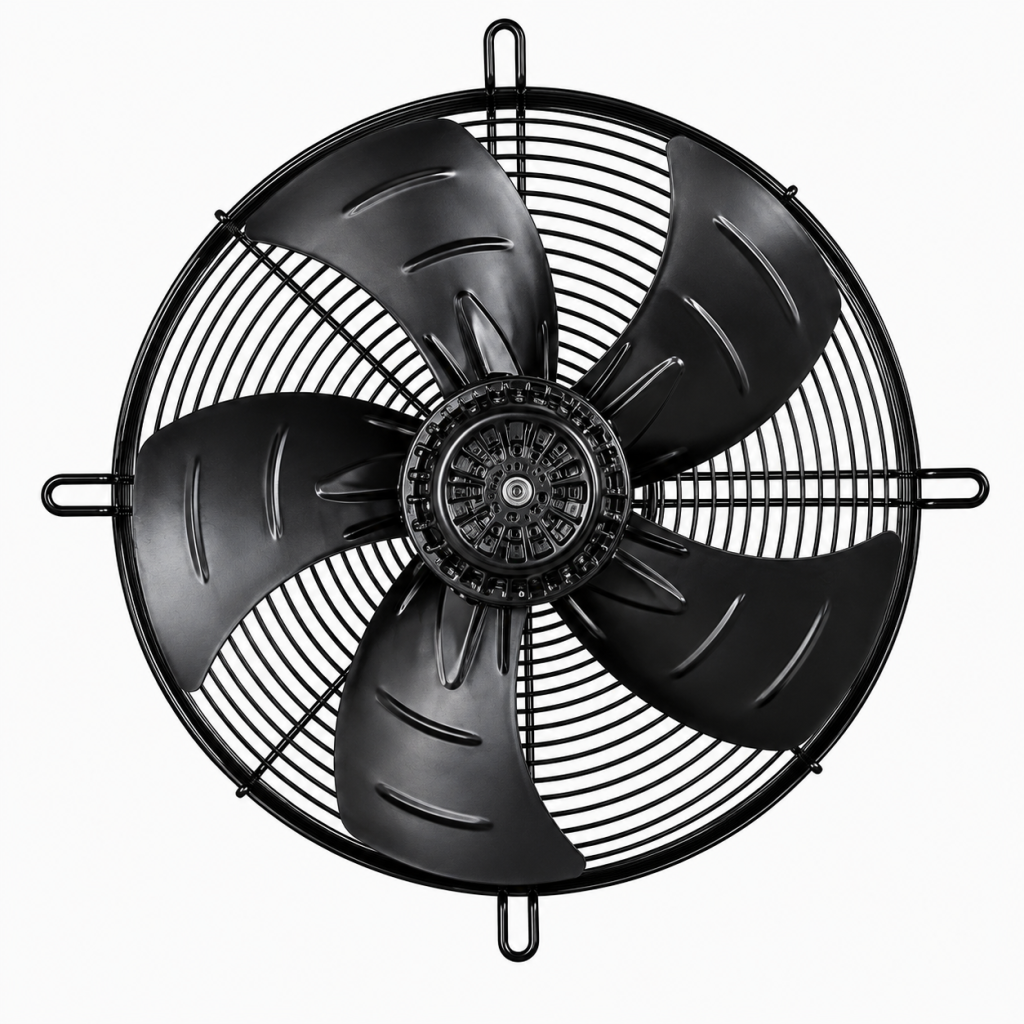

AC AXIAL FANS
ø500 mm
PRODUCT SPECIFICATIONS
Material: Steel
Weight: 9.5 kg
Typical Applications
HVAC Systems
Industrial Ventilation
Machinery Cooling
Equipment Ventilation
TECHNICAL DATA
Performance Specifications
| Model | Voltage (VAC) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (m³/h) |
Ambient Temp. (°C) Max |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| 4E500Z | 230 | 50 | 2.5 | 550 | 1590 | 6750 | 50 | 76 |
| 4D500Z | 380 | 50 | 0.91/0.93 | 450/500 | 1320/1550 | 5850/6700 | 50 | 76 |
| 6E500Z | 230 | 50 | 1.15/1.4 | 230/320 | 920/1050 | 5200/6150 | 50 | 67/69 |
| 6D500Z | 380 | 50 | 0.78/0.65 | 250/320 | 920/1060 | 5200/6150 | 50 | 67/69 |
