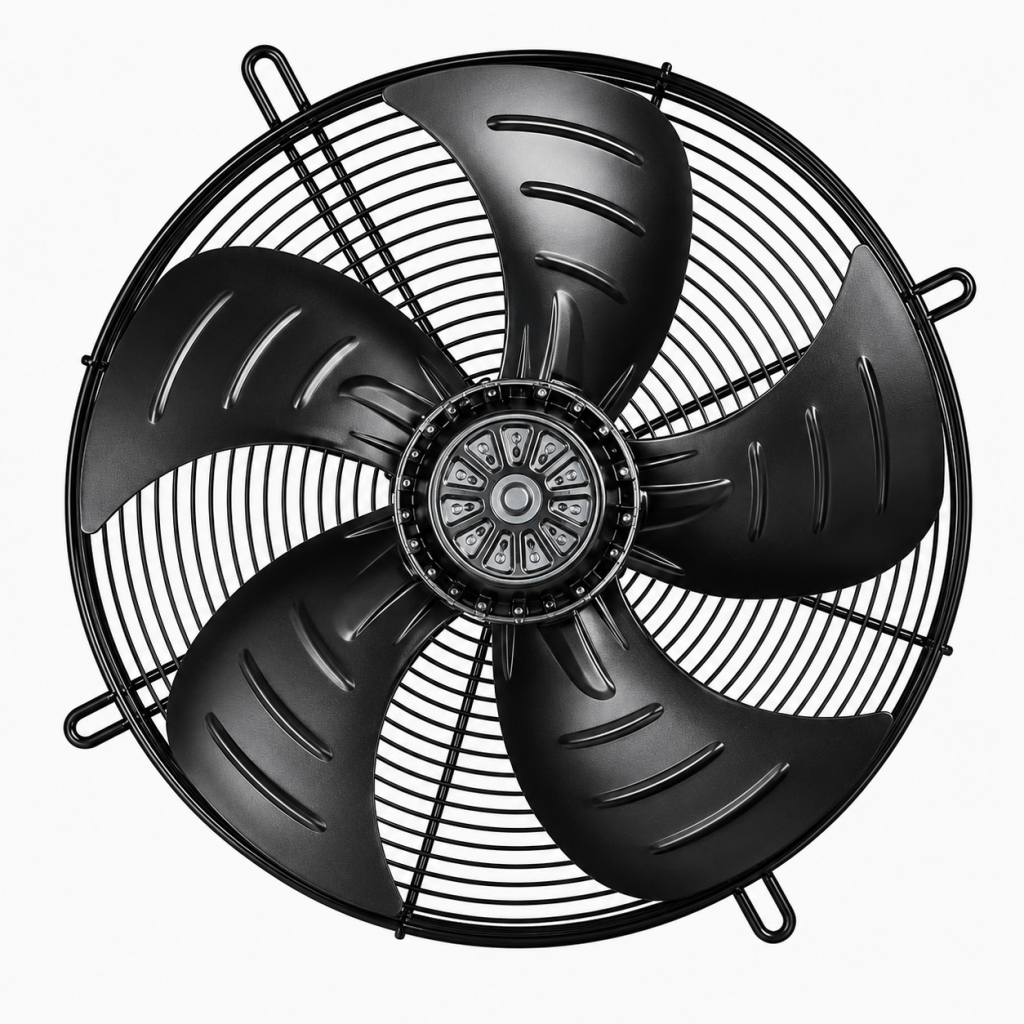

AC AXIAL FANS
ø600 mm
PRODUCT SPECIFICATIONS
Material: Steel
Weight: 15 kg
Typical Applications
HVAC Systems
Industrial Ventilation
Machinery Cooling
Equipment Ventilation
TECHNICAL DATA

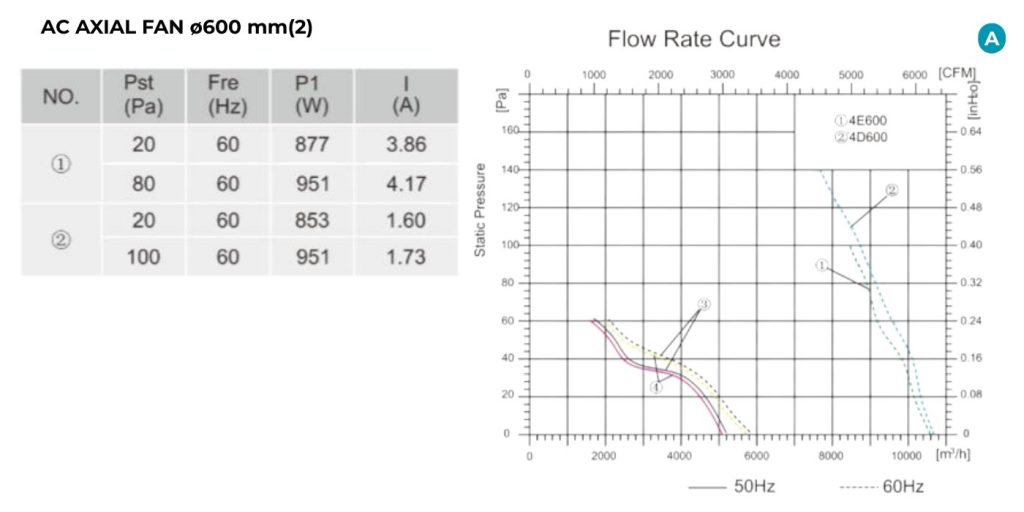

Performance Specifications
| Model | Voltage (VAC) |
Freq. (Hz) |
Current (A) |
Power (W) |
Speed (RPM) |
Airflow (m³/h) |
Ambient Temp. (°C) Max |
Noise (dB) |
|---|---|---|---|---|---|---|---|---|
| 4E600Z | 230 | 50 | 3.5 | 810 | 1315 | 10300 | 50 | 76 |
| 4D600Z | 380 | 50/60 | 1.67/1.78 | 850/950 | 1330/1580 | 10800 | 50 | 79 |
| 6E600Z | 230 | 50/60 | 2.2/2.8 | 500/600 | 900/1030 | 7500/9250 | 50 | 70/71 |
| 6D600Z | 380 | 50/60 | 1.57/1.3 | 550/600 | 920/1070 | 8100/9500 | 50 | 70/72 |
